Stock Status: 1x unit in stock
Without connecting any external processing device, the built-in
Android™ OS allows you to access files, display contents, and start presentations directly on the display.
Edit, manage, and customise content through the X-Sign Content Management Software by
using the 150+ templates available; with the X-Sign Broadcast, you can deliver instant announcement to all your BenQ’s displays.
Combined with DMS Cloud and DMS Local, BenQ’s Device Management Solution helps you easily manage
all your BenQ displays at the same time and maximise the productivity for your workplace.
With the pre-installed TeamViewer Meeting, you can start video meetings with a simple click. The ST02S series is perfect for video conferencing solutions.
Specs
| Weight & dimensions |
| Display width |
1929 mm |
| Display depth |
79.4 mm |
| Display height |
1100 mm |
| Display weight |
53 kg |
| Display |
| Display diagonal |
2.18 m (86") |
| Display technology |
LED |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
400 cd/m² |
| HD type |
4K Ultra HD |
| Touchscreen |
No |
| Panel type |
ADS |
| LED backlighting type |
Direct-LED |
| Native aspect ratio |
16:9 |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Active display area (W x H) |
1895 x 1066 mm |
| Display diagonal (metric) |
217 cm |
| Panel life |
30000 h |
| RGB colour space |
NTSC |
| Packaging data |
| Package width |
248 mm |
| Package depth |
2130 mm |
| Package height |
1321 mm |
| Package volume |
64000 cm³ |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
20 W |
| Power |
| Power consumption (typical) |
317 W |
| Power consumption (standby) |
0.5 W |
| Energy efficiency class (SDR) |
G |
| Energy consumption (SDR) per 1000 hours |
327 kWh |
| AC input voltage |
100-240 V |
| AC input frequency |
50 - 60 Hz |
| Ports & interfaces |
| HDMI ports quantity |
3 |
| DVI port |
Yes |
| DisplayPorts quantity |
0 |
| USB port |
Yes |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| HDMI version |
2.0 |
| DVI-D ports quantity |
1 |
| VGA (D-Sub) input ports |
1 |
| USB ports quantity |
2 |
| USB version |
2.0 |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| PC Audio in |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 80% |
| Design |
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Yes |
| Screen shape |
Flat |
| Panel mounting interface |
600 x 400 mm |
| Performance |
| Purpose |
Universal |
| Operating hours (hours/days) |
18/7 |
| Computer system |
| Computer system |
Yes |
| Built-in processor |
Yes |
| Internal memory |
3 GB |
| Internal storage capacity |
16 GB |
| Operating system installed |
Android 8.0 |
| Packaging content |
| Remote control included |
Yes |
| Cables included |
HDMI |
| Logistics data |
| Country of origin |
China |
| Products per pallet |
5 pc(s) |
| Harmonized System (HS) code |
8528529100 |
| Network |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
Features

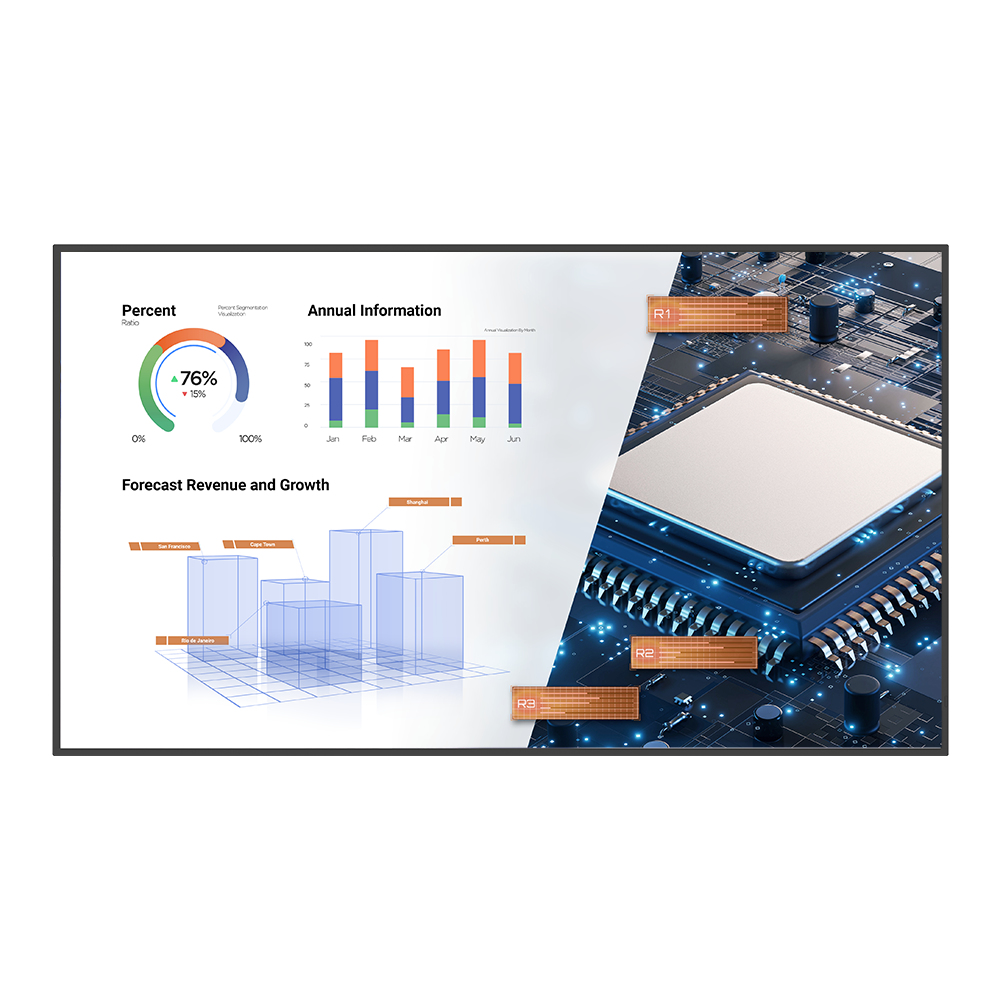

BenQ ST8602S. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 400 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 18/7. Operating system installed: Android 8.0. Product colour: Black
Product Description
Without connecting any external processing device, the built-in
Android™ OS allows you to access files, display contents, and start presentations directly on the display.
Edit, manage, and customise content through the X-Sign Content Management Software by
using the 150+ templates available; with the X-Sign Broadcast, you can deliver instant announcement to all your BenQ’s displays.
Combined with DMS Cloud and DMS Local, BenQ’s Device Management Solution helps you easily manage
all your BenQ displays at the same time and maximise the productivity for your workplace.
With the pre-installed TeamViewer Meeting, you can start video meetings with a simple click. The ST02S series is perfect for video conferencing solutions.
