A520 MOTHERBOARD FOR EVERYONE
All Essentials You Need For Computing
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
Dual USB 3.2 Gen1 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next generation USB 3.2 Gen1 devices and to deliver up to 5 Gbps data transfer rates.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Specs
Weight & dimensions |
Width |
170 mm |
Depth |
170 mm |
Memory |
Supported memory types |
DDR4-SDRAM |
Number of memory slots |
2 |
Maximum internal memory |
64 GB |
Memory slots type |
DIMM |
Memory channels |
Dual-channel |
ECC |
Y |
Non-ECC |
Y |
Supported memory clock speeds |
2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600 MHz |
Unbuffered memory |
Y |
Processor |
Processor manufacturer |
AMD |
Processor socket |
Socket AM4 |
Back panel I/O ports |
USB 2.0 ports quantity |
2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
Ethernet LAN (RJ-45) ports |
1 |
HDMI ports quantity |
1 |
PS/2 ports quantity |
1 |
HDMI version |
2.1 |
DisplayPorts quantity |
1 |
DisplayPort version |
1.4 |
Headphone outputs |
1 |
Microphone in |
Y |
WiFi-AP antenna jack |
1 |
Internal I/O |
USB 2.0 connectors |
1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
Number of SATA III connectors |
4 |
Front panel audio connector |
Y |
ATX Power connector (24-pin) |
Y |
CPU fan connector |
Y |
Number of chassis fan connectors |
1 |
12V power connector |
Y |
RGB LED pin header |
Y |
Networking |
Wi-Fi |
Y |
Ethernet LAN |
Y |
Ethernet interface type |
Gigabit Ethernet |
LAN controller |
Realtek RTL8111H |
Wake-on-LAN ready |
Y |
Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Bluetooth |
Y |
Bluetooth version |
4.2 |
Expansion slots |
PCI Express x16 (Gen 3.x) slots |
1 |
Number of M.2 (M) slots |
1 |
Packaging content |
Cables included |
SATA |
Drivers included |
Y |
Bundled software |
ASRock Motherboard Utility (A-Tuning)
ASRock Polychrome SYNC
ASRock XFast LAN |
BIOS |
BIOS type |
UEFI AMI |
BIOS memory size |
128 Mbit |
ACPI version |
5.1 |
System Management BIOS (SMBIOS) version |
2.3 |
Graphics |
Graphics card family |
AMD |
Graphics card |
Radeon Vega |
Maximum resolution |
4096 x 2160 pixels |
HDCP |
Y |
DirectX version |
12.0 |
Technical details |
Sustainability compliance |
Y |
Sustainability certificates |
CE, ErP |
Features |
Component for |
PC |
Motherboard form factor |
mini ITX |
Motherboard chipset family |
AMD |
Motherboard chipset |
AMD A520 |
Audio output channels |
7.1 channels |
PC health monitoring |
CPU, Fan, Temperature, Voltage |
Windows operating systems supported |
Windows 10 x64 |
Certification |
FCC, CE
ErP/EuP ready |
Storage controllers |
Supported storage drive interfaces |
SATA III, Ultra M.2 |
RAID levels |
0, 1, 10 |
Logistics data |
Harmonized System (HS) code |
84733020 |
Features

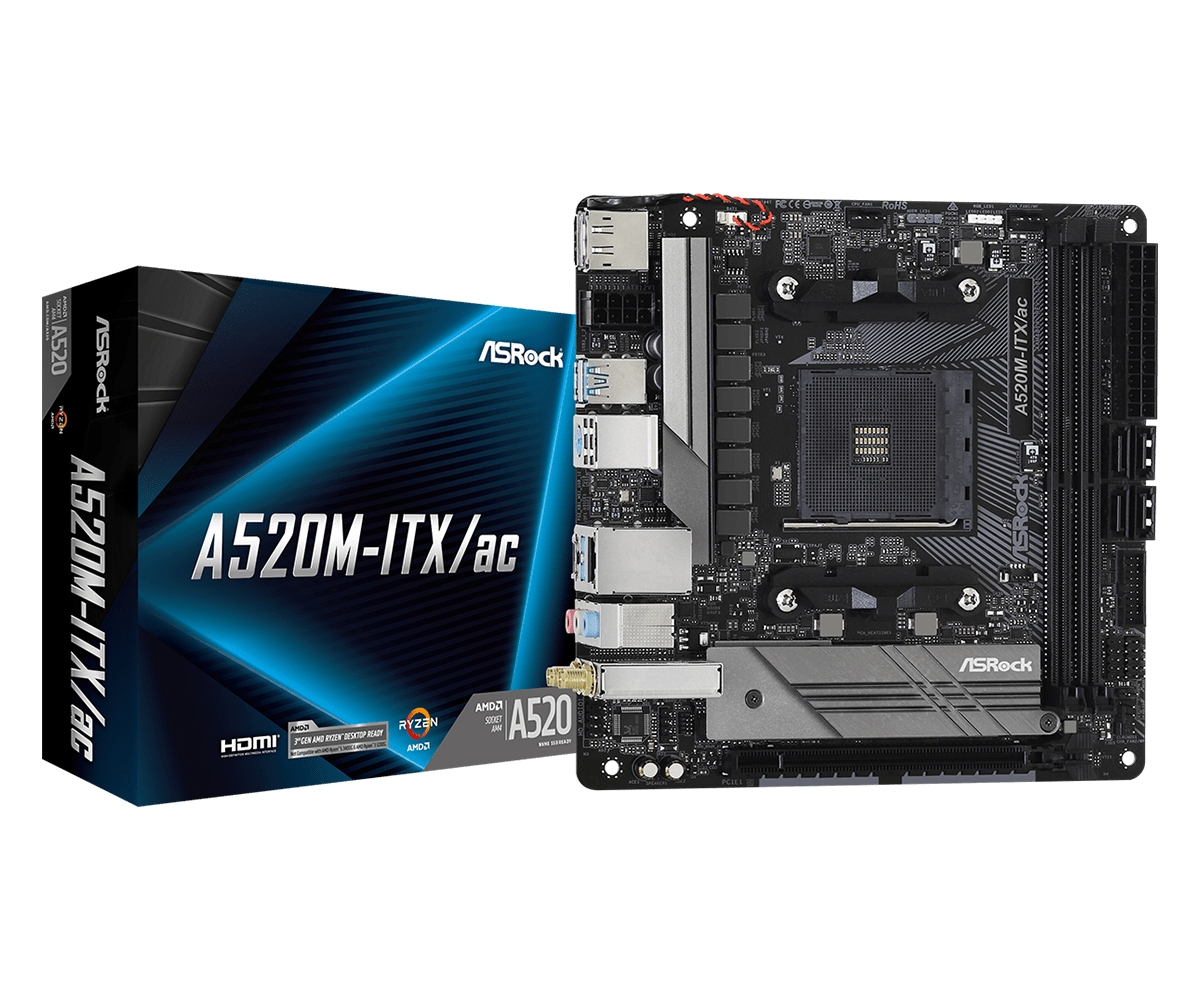

Asrock A520M-ITX/ac. Processor manufacturer: AMD, Processor socket: Socket AM4. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Ultra M.2, RAID levels: 0, 1, 10. Graphics card family: AMD, Graphics card: Radeon Vega, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Product Description
A520 MOTHERBOARD FOR EVERYONE
All Essentials You Need For Computing
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
Dual USB 3.2 Gen1 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next generation USB 3.2 Gen1 devices and to deliver up to 5 Gbps data transfer rates.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
