Stock Status: 1x unit in stock

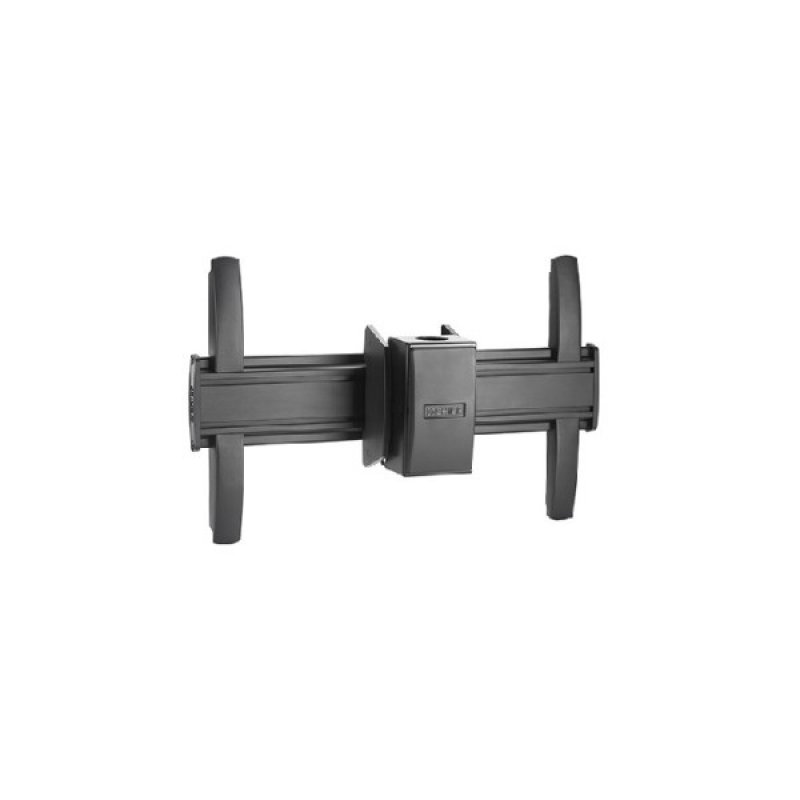

Chiefs FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for large flat panel screens. Great for digital signage installations.
- Ceiling Plate and extension column are required and must be ordered separately
- Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
- See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
- See CPA ceiling plates and CPA columns for pin connection compatibility
REPEATABILITY
Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
ACCESSIBILITY
Simple on/off connection for ease of installation and service.
CENTRIS FINGERTIP TILT
Effortlessly adjust display using Centris fingertip tilt technology.
SIMPLE & SECURE
Tool free screen engagement with optional padlock security.
FLEXIBILITY
Mount swivels to any preferred viewing angle.
Specs
| Weight & dimensions |
| Width |
681 mm |
| Depth |
162 mm |
| Height |
419 mm |
| Ergonomics |
| Tilt angle range |
-5 - 20° |
| Mounting |
| Number of displays supported |
1 |
| Maximum screen size |
152.4 cm (60") |
| Mounting type |
Ceiling |
| Maximum weight capacity |
45.4 kg |
| Minimum VESA mount |
200 x 100 mm |
| Maximum VESA mount |
600 x 400 mm |
| Minimum screen size |
76.2 cm (30") |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| Logistics data |
| Harmonized System (HS) code |
85299097 |
Features
Chief LCM1U. Maximum weight capacity: 45.4 kg, Minimum screen size: 76.2 cm (30"), Maximum screen size: 152.4 cm (60"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -5 - 20°. Product colour: Black
Product Description
Chiefs FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for large flat panel screens. Great for digital signage installations.
- Ceiling Plate and extension column are required and must be ordered separately
- Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
- See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
- See CPA ceiling plates and CPA columns for pin connection compatibility
REPEATABILITY
Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
ACCESSIBILITY
Simple on/off connection for ease of installation and service.
CENTRIS FINGERTIP TILT
Effortlessly adjust display using Centris fingertip tilt technology.
SIMPLE & SECURE
Tool free screen engagement with optional padlock security.
FLEXIBILITY
Mount swivels to any preferred viewing angle.
