Stock Status: 1x unit in stock

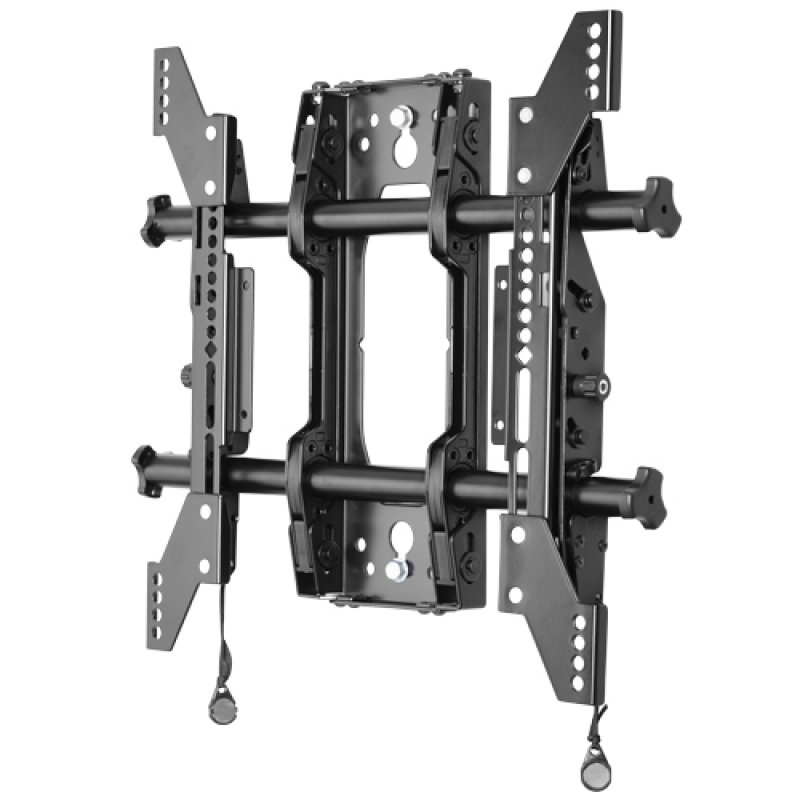

Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for medium displays with a low-profile display mounting solution.
This single stud Fusion mount hides better behind smaller narrow bezel displays in the 32-47" range. Many installer-friendly features of Fusion in a smaller form to create superior aesthetic results.
The mount incorporates Fusion favorites like Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Tilt can be locked at 0°, -6° or -12°
- ControlZone leveling allows post-installation fine-tuning of height and leveling
- ClickConnect offers an audible click when the display safely engages with the mount
- Post-installation lateral positioning
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
Specs
| Weight & dimensions |
| Width |
463 mm |
| Depth |
51 mm |
| Height |
359 mm |
| Ergonomics |
| Height adjustment |
Yes |
| Height adjustment range |
0 - 25 mm |
| Tilt angle range |
-12 - 2° |
| Mounting |
| Maximum weight capacity |
34 kg |
| Maximum screen size |
119.4 cm (47") |
| Mounting type |
Wall |
| Minimum VESA mount |
200 x 200 mm |
| Maximum VESA mount |
450 x 400 mm |
| Minimum screen size |
81.3 cm (32") |
| Number of displays supported |
1 |
| Design |
| Product colour |
Black |
| Certification |
UL Listed |
| Logistics data |
| Harmonized System (HS) code |
85299097 |
Features
Chief Medium Fusion Micro-Adjustable Tilt Wall Mount, Single Stud. Maximum weight capacity: 34 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 119.4 cm (47"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 450 x 400 mm. Height adjustment range: 0 - 25 mm, Tilt angle range: -12 - 2°. Product colour: Black
Product Description
Installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for medium displays with a low-profile display mounting solution.
This single stud Fusion mount hides better behind smaller narrow bezel displays in the 32-47" range. Many installer-friendly features of Fusion in a smaller form to create superior aesthetic results.
The mount incorporates Fusion favorites like Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
- Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
- Tilt can be locked at 0°, -6° or -12°
- ControlZone leveling allows post-installation fine-tuning of height and leveling
- ClickConnect offers an audible click when the display safely engages with the mount
- Post-installation lateral positioning
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
