Stock Status: 1x unit in stock

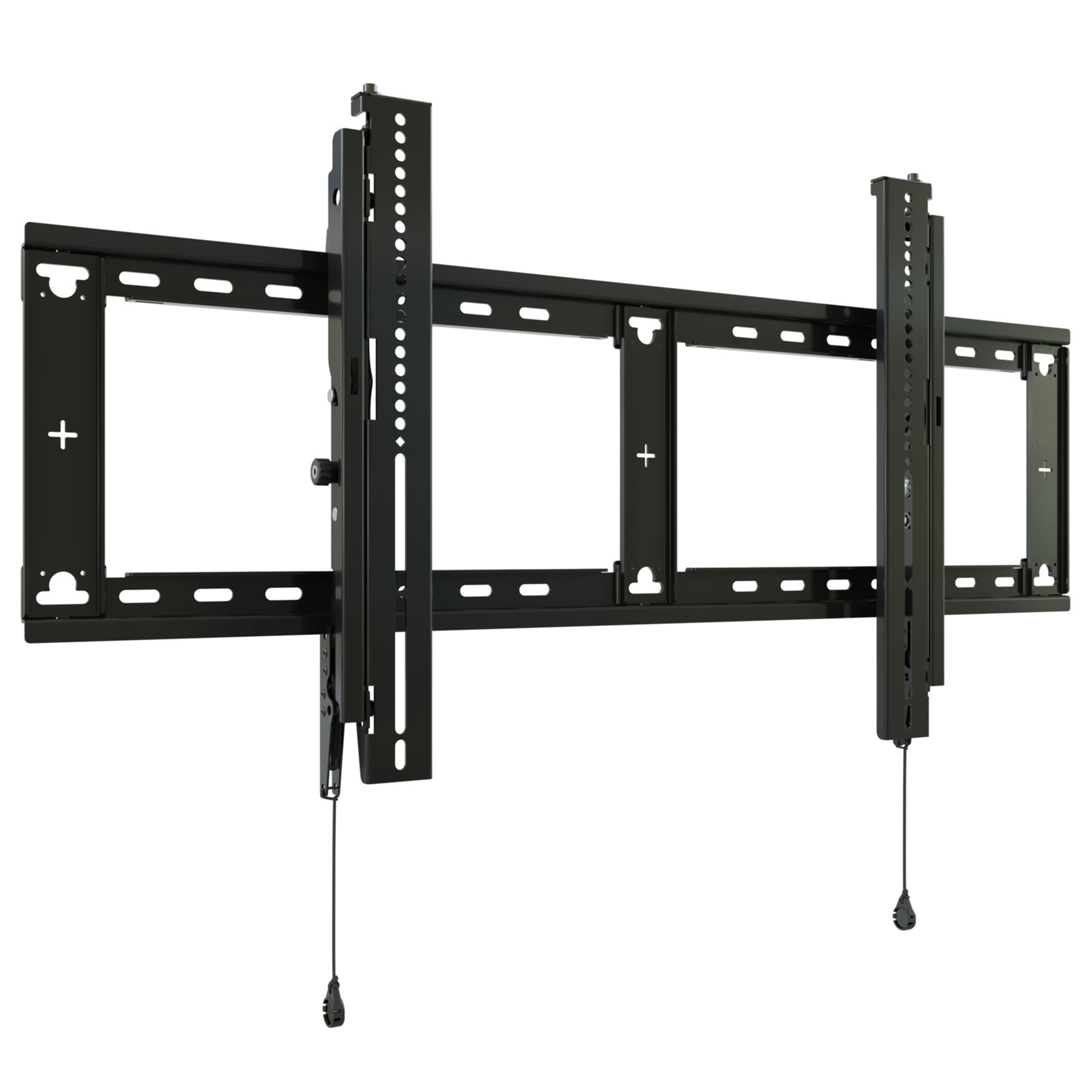

The Fit series RLT3 is a large tilt display wall mount for 43” to 86” typical display sizes and supports mounting patterns up to 915 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 2” (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals.
Specs
| Weight & dimensions |
| Width |
965 mm |
| Depth (min) |
5.1 cm |
| Depth (max) |
5.1 cm |
| Height |
487 mm |
| Packaging data |
| Quantity per pack |
1 pair(s) |
| Package weight |
8.2 kg |
| Mounting |
| Maximum weight capacity |
90.7 kg |
| Maximum screen size |
2.18 m (86") |
| Mounting type |
Wall |
| Maximum VESA mount |
915 x 450 mm |
| Minimum screen size |
109.2 cm (43") |
| Number of displays supported |
1 |
| Ergonomics |
| Height adjustment |
Yes |
| Height adjustment type |
Manual |
| Tilt adjustment |
Yes |
| Tilt angle range |
-12 - 0° |
| Design |
| Product colour |
Black |
| Certification |
TUV, UL Listed |
Features
Chief RLT3. Maximum weight capacity: 90.7 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 2.18 m (86"), Maximum VESA mount: 915 x 450 mm. Tilt angle range: -12 - 0°. Product colour: Black
Product Description
The Fit series RLT3 is a large tilt display wall mount for 43” to 86” typical display sizes and supports mounting patterns up to 915 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 2” (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals.
