Stock Status: 1x unit in stock

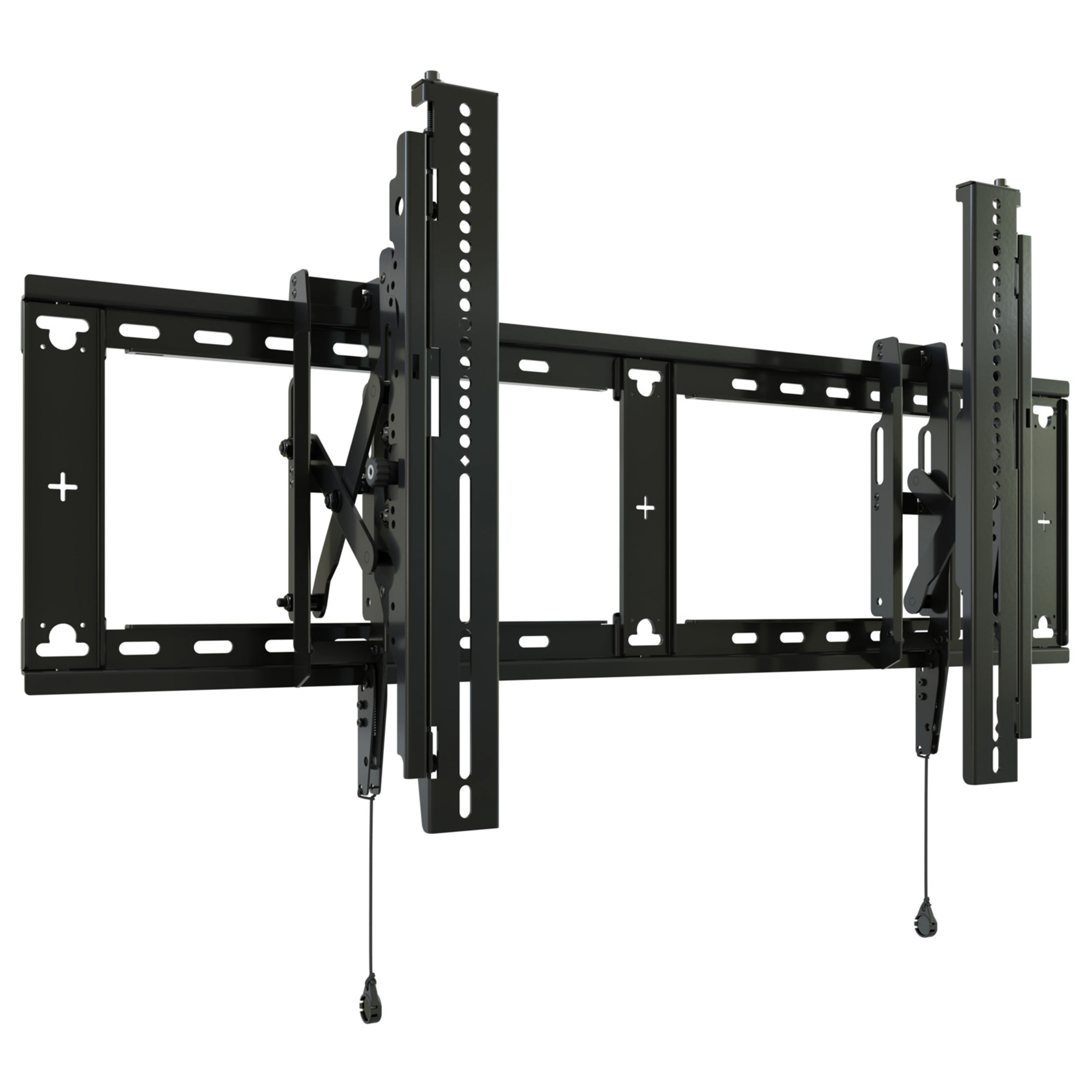

The Fit series RLXT3 is a large extending tilt display wall mount for 43” to 85” typical display sizes and supports mounting patterns up to 863 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 150 lbs (68 kg), minimum 2.67” (68 mm) depth up to 6” (152 mm) when fully extended away from the wall, 10° forward and back tilt, and UL and TUV safety standard approvals.
Specs
| Weight & dimensions |
| Width |
965 mm |
| Depth (min) |
6.8 cm |
| Depth (max) |
6.8 cm |
| Height |
487 mm |
| Packaging data |
| Quantity per pack |
1 pair(s) |
| Package weight |
9.6 kg |
| Mounting |
| Number of displays supported |
1 |
| Maximum screen size |
2.16 m (85") |
| Mounting type |
Wall |
| Maximum weight capacity |
68 kg |
| Maximum VESA mount |
863 x 450 mm |
| Minimum screen size |
109.2 cm (43") |
| Ergonomics |
| Height adjustment |
Yes |
| Height adjustment type |
Manual |
| Tilt adjustment |
Yes |
| Tilt angle range |
-10 - 10° |
| Design |
| Product colour |
Black |
Features
Chief RLXT3. Maximum weight capacity: 68 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 2.16 m (85"), Maximum VESA mount: 863 x 450 mm. Tilt angle range: -10 - 10°. Product colour: Black
Product Description
The Fit series RLXT3 is a large extending tilt display wall mount for 43” to 85” typical display sizes and supports mounting patterns up to 863 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 150 lbs (68 kg), minimum 2.67” (68 mm) depth up to 6” (152 mm) when fully extended away from the wall, 10° forward and back tilt, and UL and TUV safety standard approvals.
