High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
Specs
| Power |
| Total power |
350 W |
| AC input voltage |
200 - 240 V |
| AC input frequency |
47 - 63 Hz |
| Input current |
3 A |
| Power factor |
0.9 |
| Power Factor Correction (PFC) type |
Active |
| Combined power (+3.3V) |
90 W |
| Combined power (+12V) |
312 W |
| Combined power (+5V) |
90 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5Vsb) |
12.5 W |
| Max output current (+3.3V) |
16 A |
| Max output current (+12V1) |
26 A |
| Max output current (+5V) |
15 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5Vsb) |
2.5 A |
| Efficiency |
85% |
| Power protection features |
Over voltage, Overload, Short circuit, Under voltage |
| Weight & dimensions |
| Width |
140 mm |
| Depth |
150 mm |
| Height |
87 mm |
| Ports & interfaces |
| Motherboard power connector |
20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) |
3 |
| Number of SATA power connectors |
5 |
| PCI Express power connectors (6+2 pin) |
1 |
| Cabling type |
Non-Modular |
| Packaging data |
| Manual |
Yes |
| Package type |
Box |
| Other features |
| Warranty card |
Yes |
| Performance |
| Purpose |
PC |
| Power supply unit (PSU) form factor |
PS/2 |
| ATX version |
2.3 |
| Design |
| Product colour |
Silver |
| Cooling type |
Active |
| Fan diameter |
12 cm |
| Number of fans |
1 fan(s) |
| Fan location |
Top |
| On/off switch |
Yes |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Certification |
| Compliance certificates |
RoHS |
Features

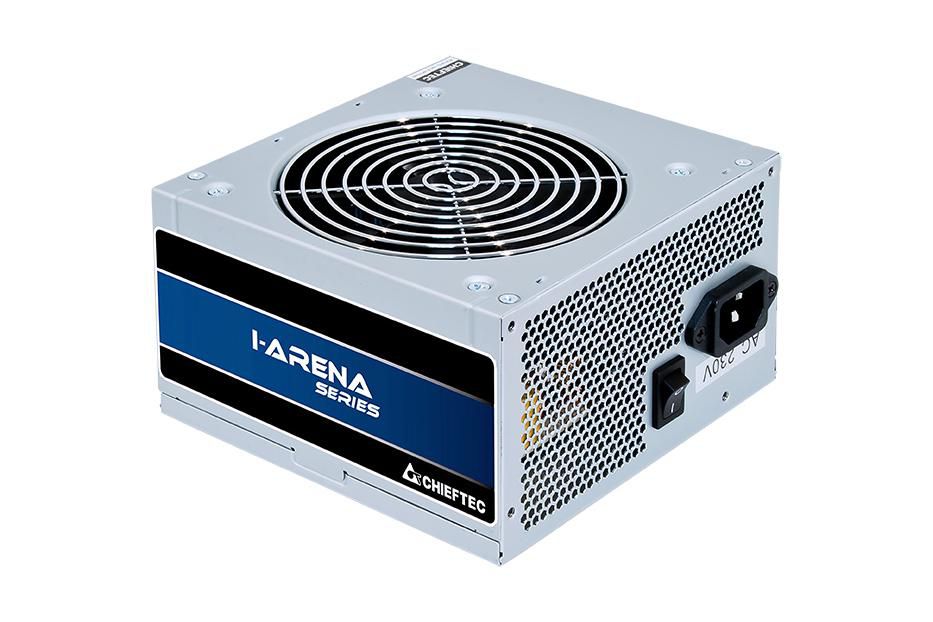

Chieftec GPB-350S. Total power: 350 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS
Product Description
High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
