Stock Status: 1x unit in stock

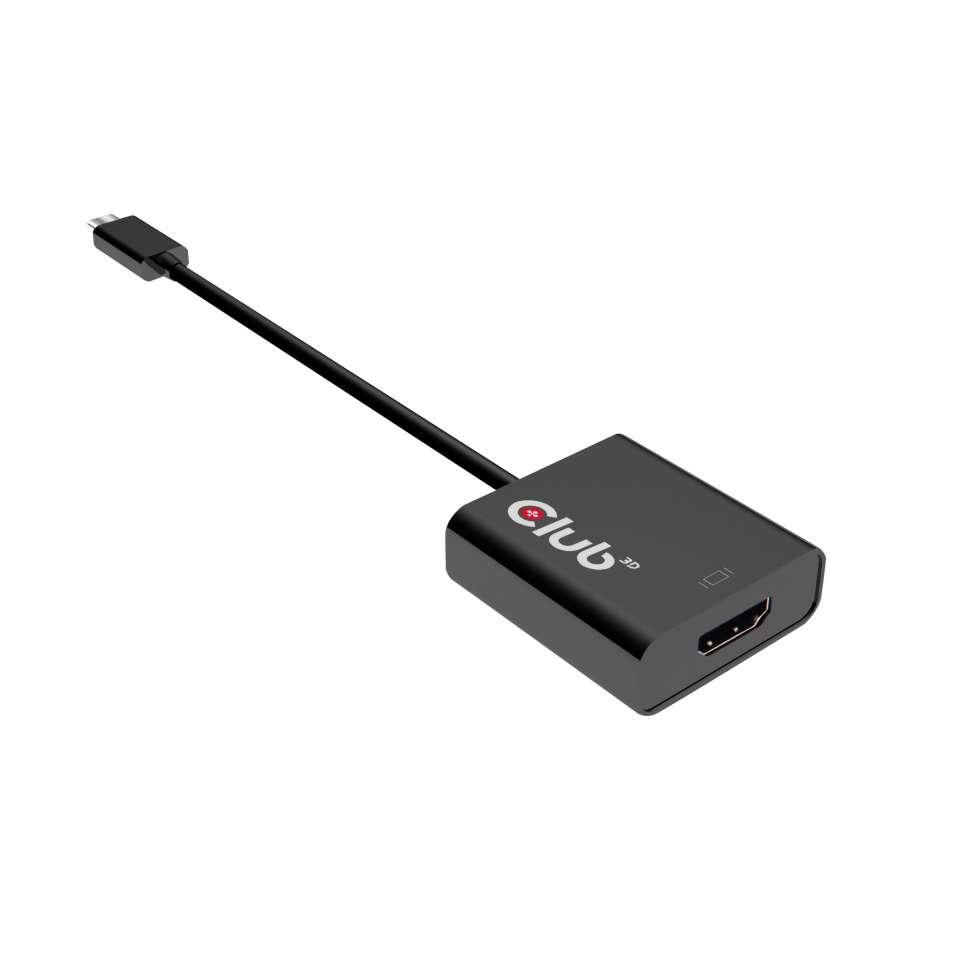

The Club 3D CAC-2504 is an Active HDMI™ signal converter. The USB 3.1 Type C to HDMI™ 2.0 UHD 4K 60Hz Active Adapter is the easiest solution for connecting your USB 3.1 Type C source device featuring DisplayPort™ Alternate Mode to an HDMI™ 2.0 enabled UHD Monitor, Television or Projector. The HDMI™ adapter is compact and highly portable. Powered by the USB-C port, the adapter requires no external power and is ideal for use with notebooks and Ultrabooks.
Supports up to 4K UHD Resolution at 60Hz.
The USB 3.1 Type C to HDMI™ 2.0 UHD 4K 60Hz Active Adapter supports UHD resolutions of up to 4K @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video. Use the adapter to play games, view video or browse the internet from your USB 3.1 Type-C enabled device on a (Ultra) high-resolution monitor or TV. Supporting up to 8 channels of audio, the adapter provides high-definition digital audio and video.
Compatible with all Operating Systems
The USB 3.1 Type C to HDMI™ 2.0 UHD 4K 60Hz Active Adapter supports all USB 3.1 Type-C devices with DisplayPort™ ALT mode and operating systems, including Apple OS X, Windows 8.1 and 10 and Google Chrome OS.
Please refer to your device's user manual to confirm the specification and functionality of the USB-C port.
Specs
| Features |
| Cable length |
0.15 m |
| Connector 1 |
USB Type-C |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector contacts plating |
Copper |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| HDMI version |
2.0b |
| HDCP |
Yes |
| HDCP version |
1.4/2.2 |
| Maximum resolution |
3840 x 2160 pixels |
| Supported graphics resolutions |
3840 x 2160 |
| Supported video modes |
2160p |
| Data transfer rate |
18 Gbit/s |
| Maximum refresh rate |
60 Hz |
| Product colour |
Black |
| Colour sampling |
4:2:0, 4:2:2 |
| Plug and Play |
Yes |
| Country of origin |
China |
| Weight & dimensions |
| Weight |
21 g |
| Width |
37 mm |
| Depth |
15 mm |
| Height |
180 mm |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Manual |
Yes |
| Other features |
| Cable colour |
Black |
| Gross weight |
31 g |
| Logistics data |
| Harmonized System (HS) code |
8544 4290 |
| Products per master (outer) case |
10 pc(s) |
| Packaging data |
| Package width |
180 mm |
| Package depth |
110 mm |
| Package height |
18 mm |
| Package weight |
31 g |
| Package type |
Polybag |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
Meets ROHS, FCC, and CE EMI requirements |
| Packaging composition |
| Plastic packaging weight |
1 g |
| Paper/cardboard packaging weight |
0 g |
| Total plastic packaging weight |
0 g |
| Total paper/cardboard packaging weight |
0 g |
Features
CLUB3D USB 3.1 Type C to HDMI 2.0 UHD 4K 60Hz Active Adapter. Cable length: 0.15 m, Connector 1: USB Type-C, Connector 2: HDMI Type A (Standard). Compliance certificates: RoHS, Certification: Meets ROHS, FCC, and CE EMI requirements. Plastic packaging weight: 1 g. Weight: 21 g, Width: 37 mm, Depth: 15 mm. Package width: 180 mm, Package depth: 110 mm, Package height: 18 mm
Product Description
The Club 3D CAC-2504 is an Active HDMI™ signal converter. The USB 3.1 Type C to HDMI™ 2.0 UHD 4K 60Hz Active Adapter is the easiest solution for connecting your USB 3.1 Type C source device featuring DisplayPort™ Alternate Mode to an HDMI™ 2.0 enabled UHD Monitor, Television or Projector. The HDMI™ adapter is compact and highly portable. Powered by the USB-C port, the adapter requires no external power and is ideal for use with notebooks and Ultrabooks.
Supports up to 4K UHD Resolution at 60Hz.
The USB 3.1 Type C to HDMI™ 2.0 UHD 4K 60Hz Active Adapter supports UHD resolutions of up to 4K @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video. Use the adapter to play games, view video or browse the internet from your USB 3.1 Type-C enabled device on a (Ultra) high-resolution monitor or TV. Supporting up to 8 channels of audio, the adapter provides high-definition digital audio and video.
Compatible with all Operating Systems
The USB 3.1 Type C to HDMI™ 2.0 UHD 4K 60Hz Active Adapter supports all USB 3.1 Type-C devices with DisplayPort™ ALT mode and operating systems, including Apple OS X, Windows 8.1 and 10 and Google Chrome OS.
Please refer to your device's user manual to confirm the specification and functionality of the USB-C port.
