Stock Status: 1x unit in stock

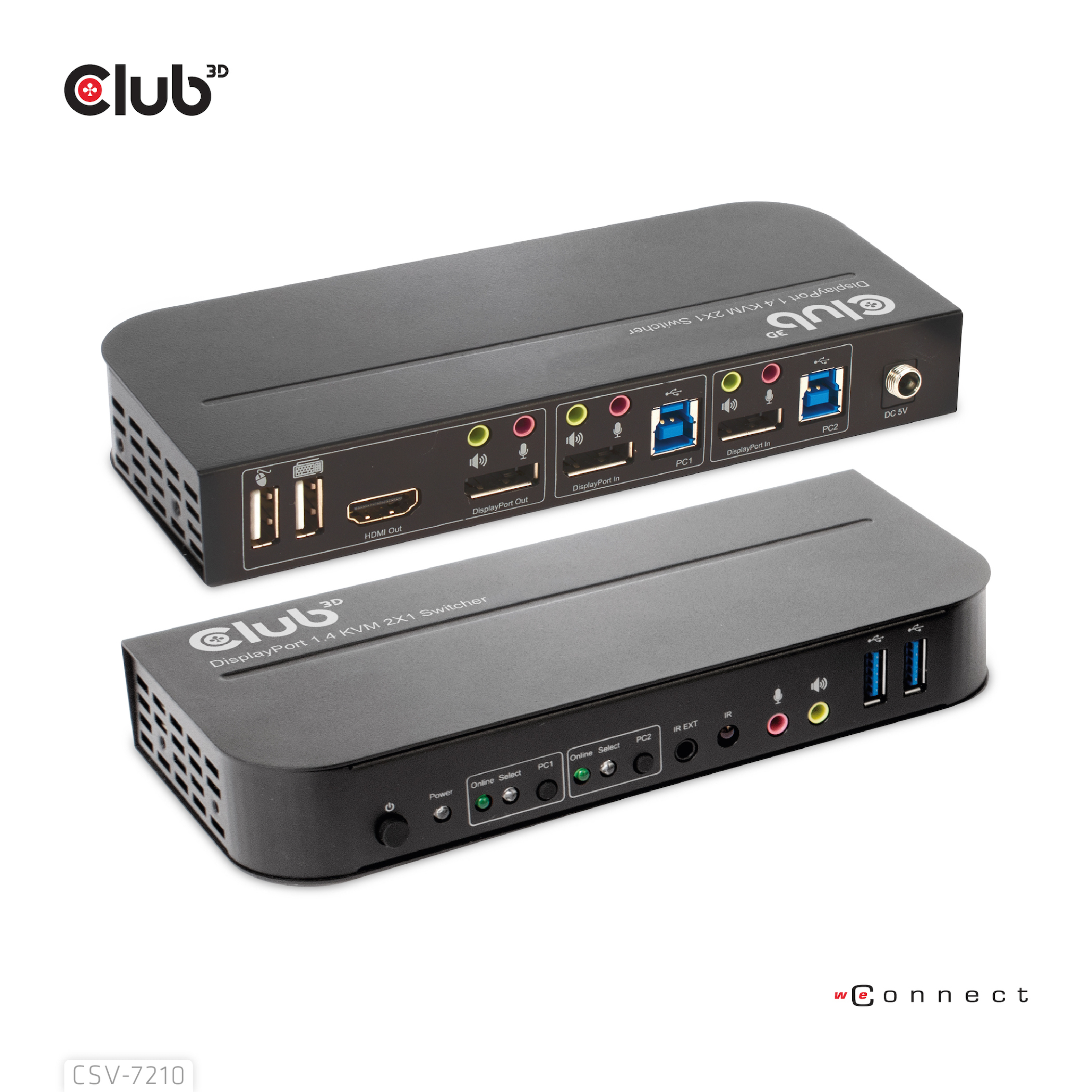

The CSV-7210 is a high performance DisplayPort™ KVM (Keyboard Video and Mouse) switcher. It routes high definition videos up to 4096x2160 at 60Hz resolution and audio from any DisplayPort™ source to any HDMI™ or DisplayPort™ supported display. This DisplayPort™ KVM switcher not only has the key press switching function, but also has an intelligent function as well as hot pluggable function.
Specs
| Ports & interfaces |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
HDMI/DisplayPort |
| Console ports |
3.5mm headphone, 3.5mm mic, HDMI, USB B |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
2 |
| Audio connections |
Yes |
| Headphone outputs |
4 |
| Number of microphone inputs |
4 |
| DC-in jack |
Yes |
| Weight & dimensions |
| Width |
178 mm |
| Depth |
75 mm |
| Height |
26 mm |
| Weight |
370 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage relative humidity (H-H) |
5 - 90% |
| Power |
| Power source |
DC |
| Input voltage |
5 V |
| Power consumption (typical) |
12 W |
| External power adapter |
Yes |
| System requirements |
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Display |
| Built-in display |
No |
| Packaging content |
| Cables included |
USB Type-A to USB Type-B |
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Remote control included |
Yes |
| Design |
| Rack mounting |
No |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Yes |
| Performance |
| HD type |
4K Ultra HD |
| Maximum resolution |
4096 x 2160 pixels |
| Video bandwidth |
60 Hz |
| Data transfer rate (max) |
32.4 Gbit/s |
| High Dynamic Range (HDR) supported |
Yes |
| HDCP |
Yes |
| Plug and Play |
Yes |
| HDCP version |
1.4/2.2 |
| Logistics data |
| Harmonized System (HS) code |
84719000 |
| Packaging data |
| Package width |
230 mm |
| Package depth |
65 mm |
| Package height |
210 mm |
| Package weight |
787 g |
| Package type |
Box |
Features
CLUB3D DisplayPort/HDMI KVM Switch For Dual DisplayPort 4K 60Hz. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 12 W. Width: 178 mm, Depth: 75 mm, Height: 26 mm
Product Description
The CSV-7210 is a high performance DisplayPort™ KVM (Keyboard Video and Mouse) switcher. It routes high definition videos up to 4096x2160 at 60Hz resolution and audio from any DisplayPort™ source to any HDMI™ or DisplayPort™ supported display. This DisplayPort™ KVM switcher not only has the key press switching function, but also has an intelligent function as well as hot pluggable function.
