Stock Status: 1x unit in stock

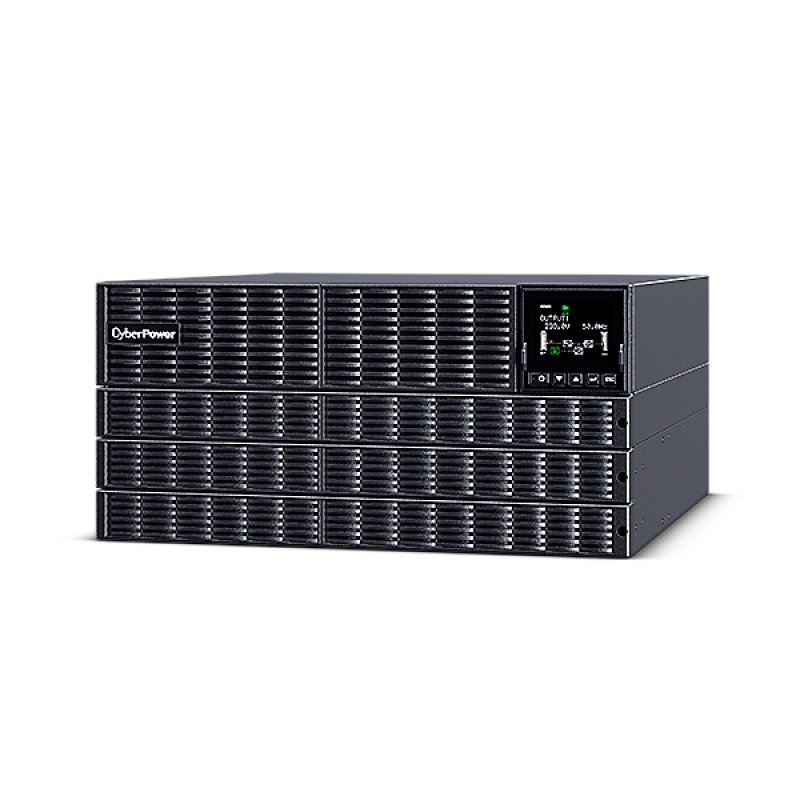

CyberPower OLS6KERT5UM is a high-efficiency UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS, servers, DVRs/surveillance systems, transportation, infrastructure, and emergency systems. It’s typically integrated into the back office, server room, and data center environment.
With high output power factor, the UPS in a smaller footprint can provide more usable power and save rack space. The product allows multiple UPS units to be connected in parallel, achieving higher capacity and power redundancy. The pre-installed Maintenance Bypass PDU (MBP) offers quick and safe maintenance without power interruption. Moreover, the tiltable color LCD comes with an intuitive and graphical interface, allowing users to monitor and configure settings with ease. Besides, the battery charging current is adjustable via LCD setting to shorten charging time. It is also designed with relay-type dry contact port to support specific UPS event notifications for easy management.
Specs
| Weight & dimensions |
| Width |
433 mm |
| Depth |
661 mm |
| Height |
213.5 mm |
| Weight |
68 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 1000 m |
| Non-operating altitude |
0 - 15000 m |
| Ports & interfaces |
| AC outlet types |
C13 coupler, C19 coupler |
| AC outlets quantity |
8 AC outlet(s) |
| USB port |
Yes |
| USB 2.0 ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial ports quantity |
1 |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Number of batteries supported |
10 |
| Typical backup time at full load |
7.6 min |
| Typical backup time at half load |
23 min |
| Battery recharge time |
4 h |
| Charging current |
4 A |
| Design |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Housing material |
Metal |
| Rack capacity |
5U |
| Display type |
LCD |
| LED indicators |
Operation |
| Features |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
6 kVA |
| Output power |
6000 W |
| Waveform |
Pure sine |
| Input operation voltage (min) |
110 V |
| Input operation voltage (max) |
300 V |
| Input frequency |
50/60 Hz |
| Output operation voltage (min) |
208 V |
| Output operation voltage (max) |
240 V |
| Output frequency |
50/60 Hz |
| Maximum current |
27.3 A |
| Surge energy rating |
1335 J |
| Response time |
0 ms |
| Power factor |
1 |
| Input power factor |
0.99 |
| Crest factor |
3:1 |
| ECO mode |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Power protection features |
Overload |
| Audible alarm(s) |
Yes |
| Audible alarm modes |
Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Logistics data |
| Harmonized System (HS) code |
8504408690 |
| Country of origin |
China |
| Packaging data |
| Package width |
600 mm |
| Package depth |
800 mm |
| Package height |
650 mm |
| Package weight |
79 kg |
| Certification |
| Certification |
CE, RoHS |
| Packaging content |
| Cables included |
USB cable |
Features
CyberPower OLS6KERT5UM. UPS topology: Double-conversion (Online), Output power capacity: 6 kVA, Output power: 6000 W. AC outlet types: C13 coupler, C19 coupler, AC outlets quantity: 8 AC outlet(s), Serial interface type: RS-232. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 7.6 min, Typical backup time at half load: 23 min. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Metal. Certification: CE, RoHS
Product Description
CyberPower OLS6KERT5UM is a high-efficiency UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS, servers, DVRs/surveillance systems, transportation, infrastructure, and emergency systems. It’s typically integrated into the back office, server room, and data center environment.
With high output power factor, the UPS in a smaller footprint can provide more usable power and save rack space. The product allows multiple UPS units to be connected in parallel, achieving higher capacity and power redundancy. The pre-installed Maintenance Bypass PDU (MBP) offers quick and safe maintenance without power interruption. Moreover, the tiltable color LCD comes with an intuitive and graphical interface, allowing users to monitor and configure settings with ease. Besides, the battery charging current is adjustable via LCD setting to shorten charging time. It is also designed with relay-type dry contact port to support specific UPS event notifications for easy management.
