Stock Status: 1x unit in stock

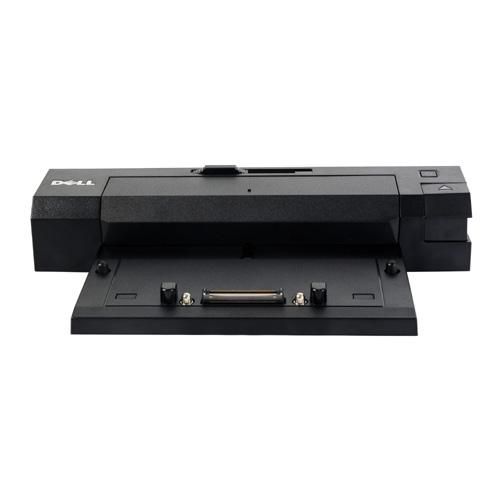

Maximize your workspace with the Dell™ E-Port Plus Replicator. This E-Port Plus Replicator gives you a comfortable work space where you can plug a keyboard, mouse and monitor to the port replicators and use your laptop like a desktop! Simplified connectivity facilitates a single interface to connect to your printer, monitor or other peripheral devices. It also gives you ease of mobility wherein you need not unplug and re-plug multiple peripherals to access your printer or other devices. This product is tested and validated with Dell Systems. It is supported by Dell Technical Support, when used with a Dell system.
USB 3.0
- Adds new faster USB 3.0 technology enabled by Intel in Ivy Bridge
- Replace the 2 USB 2.0 connectors on the back with USB 3.0
- Platform must support USB 3.0 for it to be enabled on dock (otherwise port will support 2.0)
Display Port 1.2
- Adds the ability to daisy chain displays (4 displays via 1 connector)
- Only enabled with discrete graphics on current generation of Precision laptops
No BOIS/SW/HW impact on previous Precision laptops
Specs
| Weight & dimensions |
| Width |
288 mm |
| Depth |
170 mm |
| Height |
53.7 mm |
| Weight |
1.05 kg |
| Ports & interfaces |
| Connectivity technology |
Docking |
| USB 2.0 ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Microphone in |
Y |
| Headphone outputs |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DisplayPorts quantity |
2 |
| DVI-D ports quantity |
2 |
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| USB connector type |
USB Type-A |
| Power |
| Power consumption (typical) |
240 W |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
| Product colour |
Black |
| Card reader integrated |
N |
| Compatibility |
Dell Precision M4700, M6700 |
Features
DELL 452-11510. Connectivity technology: Docking, USB connector type: USB Type-A. Product colour: Black, Compatibility: Dell Precision M4700, M6700. Power consumption (typical): 240 W. Width: 288 mm, Depth: 170 mm, Height: 53.7 mm
Product Description
Maximize your workspace with the Dell™ E-Port Plus Replicator. This E-Port Plus Replicator gives you a comfortable work space where you can plug a keyboard, mouse and monitor to the port replicators and use your laptop like a desktop! Simplified connectivity facilitates a single interface to connect to your printer, monitor or other peripheral devices. It also gives you ease of mobility wherein you need not unplug and re-plug multiple peripherals to access your printer or other devices. This product is tested and validated with Dell Systems. It is supported by Dell Technical Support, when used with a Dell system.
USB 3.0
- Adds new faster USB 3.0 technology enabled by Intel in Ivy Bridge
- Replace the 2 USB 2.0 connectors on the back with USB 3.0
- Platform must support USB 3.0 for it to be enabled on dock (otherwise port will support 2.0)
Display Port 1.2
- Adds the ability to daisy chain displays (4 displays via 1 connector)
- Only enabled with discrete graphics on current generation of Precision laptops
No BOIS/SW/HW impact on previous Precision laptops
