| Processor |
| Processor family |
Intel® Xeon® E5 Family |
| Processor cores |
4 |
| Processor socket |
LGA 2011 (Socket R) |
| Component for |
Server/workstation |
| Processor lithography |
22 nm |
| Box |
Yes |
| Cooler included |
Yes |
| Processor manufacturer |
Intel |
| Processor base frequency |
2.5 GHz |
| Processor model |
E5-2609V2 |
| Processor threads |
4 |
| System bus rate |
6.4 GT/s |
| Processor operating modes |
64-bit |
| Processor series |
Intel Xeon E5-2600 v2 |
| Processor cache |
10 MB |
| Processor cache type |
Smart Cache |
| Thermal Design Power (TDP) |
80 W |
| Processor boost frequency |
2.5 GHz |
| VID Voltage Range |
0.65 - 1.3 V |
| Bus type |
QPI |
| Number of QPI links |
2 |
| Memory bandwidth supported by processor (max) |
42.6 GB/s |
| Processor codename |
Ivy Bridge EP |
| Processor ARK ID |
75787 |
| Package type |
Box |
| Operational conditions |
| Tcase |
71 °C |
| Weight & dimensions |
| Processor package size |
52.5mm x 45mm |
| Memory |
| Memory channels |
Quad-channel |
| Maximum internal memory supported by processor |
768 GB |
| Memory types supported by processor |
DDR3-SDRAM |
| Memory clock speeds supported by processor |
800,1066,1333 MHz |
| ECC |
Yes |
| Graphics |
| On-board graphics adapter |
N |
| Discrete graphics adapter |
N |
| On-board graphics adapter model |
Not available |
| Discrete graphics adapter model |
Not available |
| On-board graphics card |
No |
| Discrete graphics card |
No |
| On-board graphics card model |
Not available |
| Discrete graphics card model |
Not available |
| Other features |
| Intel® Virtualization Technology (Intel® VT) |
VT-d, VT-x |
| Maximum internal memory |
786432 MB |
| Cache memory |
10 MB |
| Weight & dimensions |
| Weight |
400 g |
| Processor special features |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
No |
| Intel® Identity Protection Technology (Intel® IPT) |
No |
| Intel® Turbo Boost Technology |
No |
| Intel Flex Memory Access |
No |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel® Transactional Synchronization Extensions |
No |
| Intel Enhanced Halt State |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Demand Based Switching |
Yes |
| Intel® Secure Key |
Yes |
| Intel TSX-NI |
No |
| Intel® OS Guard |
Yes |
| Intel 64 |
Yes |
| Intel Secure Key Technology version |
1.00 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Conflict-Free processor |
No |
| Intel® vPro™ Platform Eligibility |
Yes |
| Intel Identity Protection Technology version |
0 |
| Intel TSX-NI version |
0 |
| Features |
| Execute Disable Bit |
Yes |
| Idle States |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Maximum number of PCI Express lanes |
40 |
| PCI Express slots version |
3.0 |
| Supported instruction sets |
AVX |
| Scalability |
2S |
| CPU configuration (max) |
2 |
| Embedded options available |
Yes |
| Physical Address Extension (PAE) |
46 bit |
| PCI Express CEM revision |
3.0 |
| Market segment |
Server |
| Harmonized System (HS) code |
8542310001 |
| Export Control Classification Number (ECCN) |
5A992C |
| Commodity Classification Automated Tracking System (CCATS) |
G077159 |
| Technical details |
| Processor cache |
10240 KB |
| Product type |
Processor |
| Supported memory types |
DDR3-SDRAM |
| Born on date |
Q3'13 |
| Bus bandwidth |
6.4 |
| Bus type units |
GT/s |
| Launch date |
Q3'13 |
| Processor core voltage |
0.65–1.30 |
| Product name |

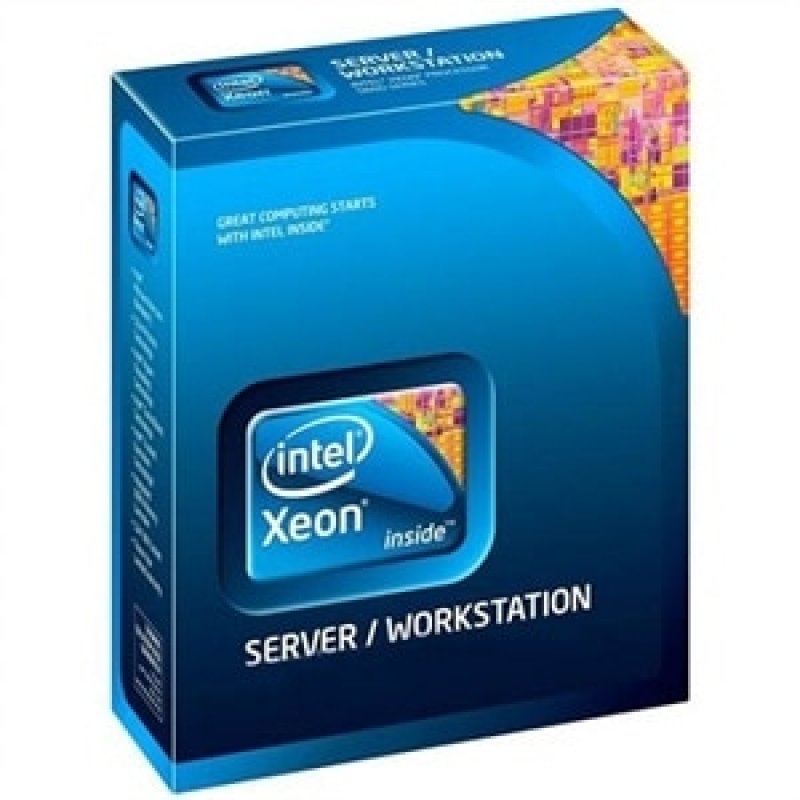

Intel Xeon E5-2609 v2 (10M Cache, 2.50 GHz) |
| Status |
Launched |
| Maximum memory |
768 GB |
| Processor brand name |
Intel Xeon v2 |
| Last change |
63903513 |
| Product family |
Intel Xeon Processor E5 v2 Family |
| Bus speed |
6.4 GT/s |
| Features |
| Type |
Battery |
| Technical details |
| Harmonized System (HS) code |
84732990 |
| Logistics data |
| Harmonized System (HS) code |
8542310001 |
| Packaging data |
| Package type |
Retail box |
