Stock Status: 1x unit in stock
In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery.
Specs
| Weight & dimensions |
| Width |
432 mm |
| Depth |
457 mm |
| Height |
80 mm |
| Weight |
28.6 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Ports & interfaces |
| AC outlet types |
C13 coupler, IEC Jumpers |
| Power plug |
C14 coupler |
| AC outlets quantity |
4 AC outlet(s) |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RJ-45 |
| Serial ports quantity |
1 |
| RS-232 ports |
1 |
| SmartSlot |
Yes |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Number of batteries supported |
1 |
| Design |
| Form factor |
Rackmount |
| Product colour |
Black |
| Rack capacity |
2U |
| Cable length |
2.4 m |
| Display type |
LCD |
| Features |
| UPS topology |
Line-Interactive |
| Output power capacity |
1.5 kVA |
| Output power |
1000 W |
| Waveform |
Sine |
| Input operation voltage (min) |
150 V |
| Input operation voltage (max) |
300 V |
| Input frequency |
50/60 Hz |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Output frequency |
50/60 Hz |
| Surge energy rating |
459 J |
| Noise level |
46 dB |
| Audible alarm(s) |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85078000 |
| Packaging data |
| Package width |
594 mm |
| Package depth |
603 mm |
| Package height |
251 mm |
| Certification |
| Certification |
C-Tick, GOST, VDE, RoHS, EN 60950-1, REACH, EN 62040-2, EN 62040-1:2008 |
| Packaging content |
| Rack mount kit |
Yes |
| Cables included |
USB cable |
Features

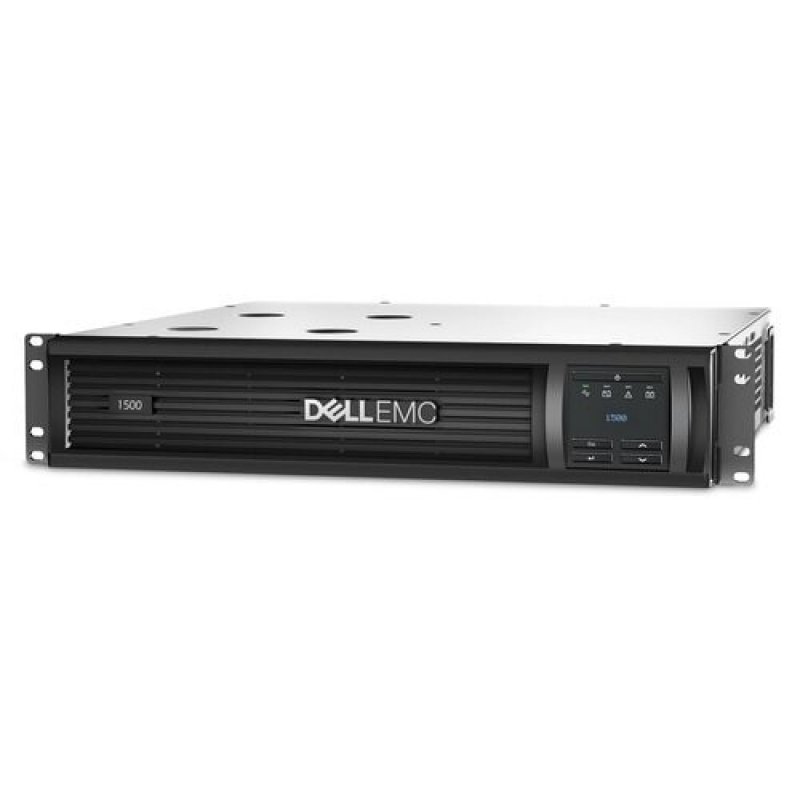

DELL SMART-UPS 1500VA. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1000 W. AC outlet types: C13 coupler, IEC Jumpers, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Certification: C-Tick, GOST, VDE, RoHS, EN 60950-1, REACH, EN 62040-2, EN 62040-1:2008
Product Description
In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery.
