Stock Status: 1x unit in stock

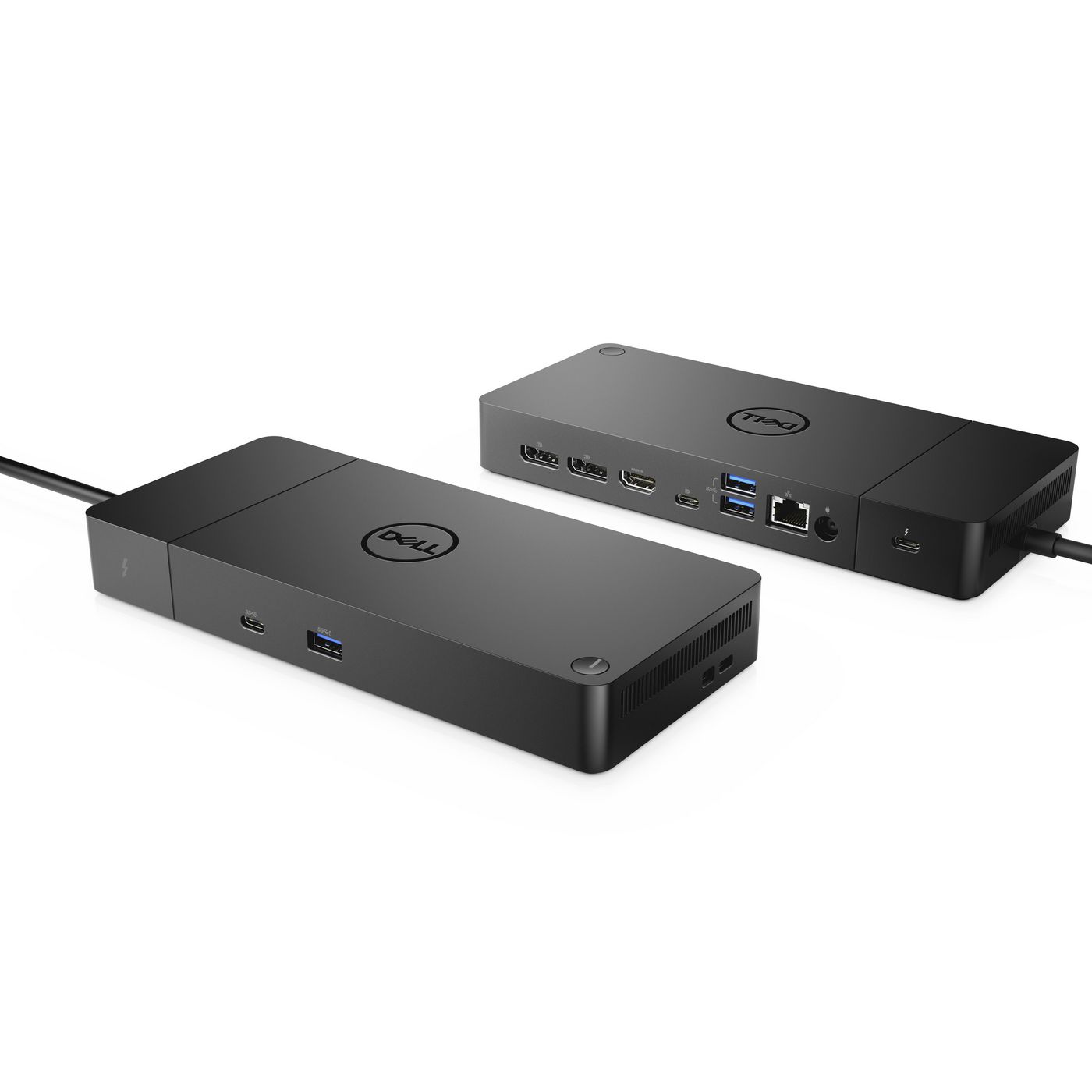

Boost your PC’s power with ExpressCharge Boost on the world’s most powerful and first modular Thunderbolt dock with a future-ready design. WD19TBS is a simplified version of WD19TB without 3.5mm ports.
Specs
| Weight & dimensions |
| Width |
205 mm |
| Depth |
90 mm |
| Height |
29 mm |
| Weight |
585 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| HDMI ports quantity |
1 |
| Microphone in |
N |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| PowerShare |
Y |
| HDMI version |
2.0 |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.4 |
| Thunderbolt 3 ports quantity |
1 |
| DC-in jack |
Y |
| Power |
| Power source type |
DC |
| AC input voltage |
120 - 230 V |
| AC input frequency |
50 - 60 Hz |
| Power supply |
180 W |
| Power cable length |
0.8 m |
| Operational conditions |
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Storage relative humidity (H-H) |
5 - 90% |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
1000 Mbit/s |
| Performance |
| Product colour |
Black |
| Card reader integrated |
N |
| Maximum digital resolution |
5120 x 2880 pixels |
| VESA mounting |
Y |
| On/off switch |
Y |
| LED indicators |
Y |
| Software |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64 |
| Linux operating systems supported |
Y |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
300 mm |
| Package depth |
315 mm |
| Package height |
62 mm |
Features
DELL WD19TBS-180W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Ethernet LAN data rates: 1000 Mbit/s. Product colour: Black, Maximum digital resolution: 5120 x 2880 pixels. Power source type: DC, AC input voltage: 120 - 230 V, AC input frequency: 50 - 60 Hz. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10...
Product Description
Boost your PC’s power with ExpressCharge Boost on the world’s most powerful and first modular Thunderbolt dock with a future-ready design. WD19TBS is a simplified version of WD19TB without 3.5mm ports.
