Stock Status: 1x unit in stock
Experience the ultimate universal dock, equipped with 10 ports, for any USB-C notebook.
Specs
| Weight & dimensions |
| Width |
76 mm |
| Depth |
166 mm |
| Height |
32 mm |
| Weight |
416 g |
| Ports & interfaces |
| Connectivity technology |
Docking |
| Host interface |
Thunderbolt |
| HDMI ports quantity |
1 |
| Microphone in |
N |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| PowerShare |
Y |
| Number of USB ports with PowerShare support |
2 |
| USB Power Delivery |
Y |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
96 W |
| HDMI version |
2.0 |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.4 |
| DC-in jack |
Y |
| USB Type-C DisplayPort Alternate Mode |
Y |
| Power |
| Power source type |
DC |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Input current |
2.5 A |
| Power supply |
130 W |
| Output voltage |
19.5 V |
| Output current |
6.67 A |
| Packaging content |
| Cables included |
USB Type-C |
| AC adapter included |
Y |
| Quick start guide |
Y |
| Operational conditions |
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Storage relative humidity (H-H) |
5 - 90% |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Performance |
| Product colour |
Black |
| Card reader integrated |
N |
| Maximum digital resolution |
5120 x 2880 pixels |
| Cable lock slot |
Y |
| Cable lock slot type |
Kensington |
| VESA mounting |
Y |
| Maximum VESA mount |
100 x 100 mm |
| LED indicators |
Y |
| Technical details |
| Harmonized System (HS) code |
84733020 |
| Software |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Mac operating systems supported |
MacOS |
| Linux operating systems supported |
Ubuntu 20.04 LTS |
| Other operating systems supported |
ChromeOS |
Features

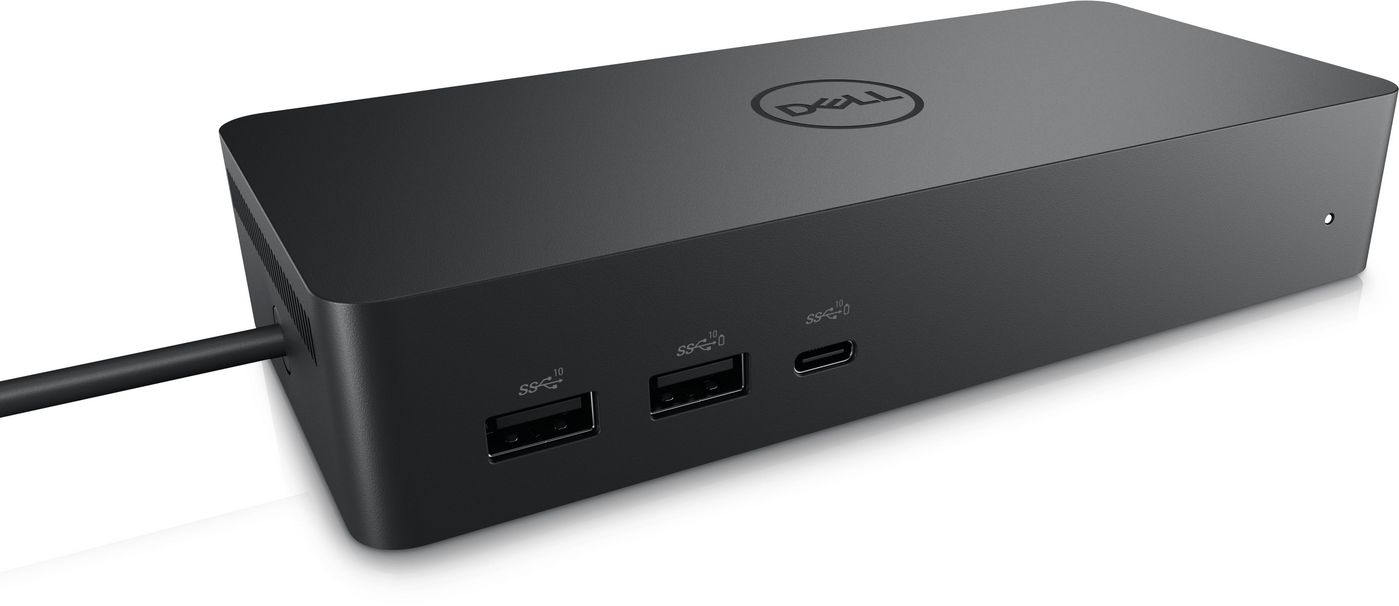

DELL Universal Dock - UD22. Connectivity technology: Docking, Host interface: Thunderbolt, USB Power Delivery up to: 96 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Maximum digital resolution: 5120 x 2880 pixels, Cable lock slot type: Kensington. Power source type: DC, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Windows operating systems supported: Windows 10, Windows 11, Mac operating systems supported: MacOS, Linux operating systems supported: Ubuntu 20.04 LTS
Product Description
Experience the ultimate universal dock, equipped with 10 ports, for any USB-C notebook.
