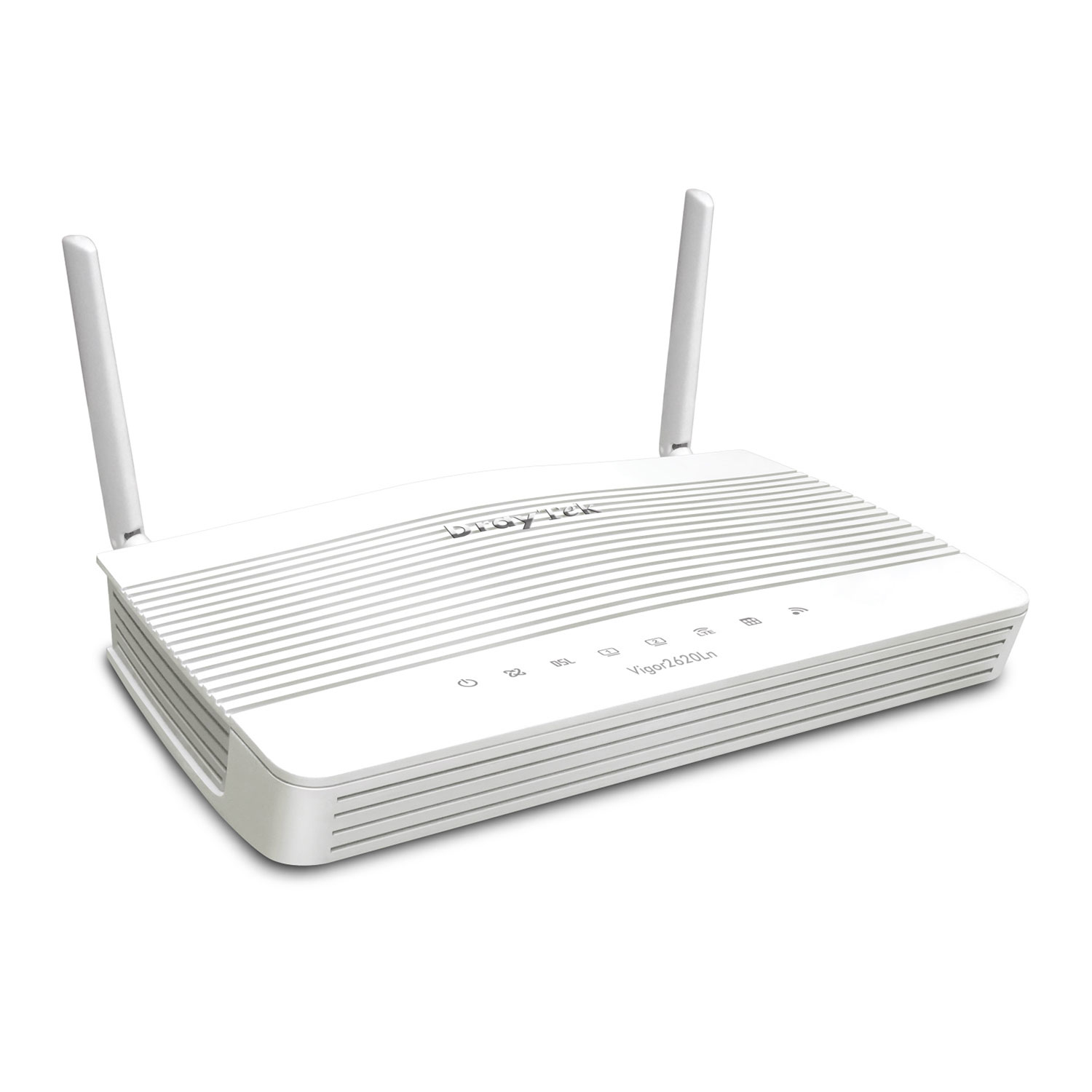

Vigor2620 LTE Series is a VDSL2/ADSL2+ modem router with 2 embedded SIM card slots (1 SIM online at a time) for 4G/LTE failover. It is equipped with 2x Gigabit Ethernet LAN ports, one of which is switchable to an additional backup WAN interface. It's the solution for SMBs to minimize Internet downtime.
Vigor2620 LTE Series is a versatile router for a business network around 30 hosts. It can have two concurrent VPN tunnels to link to the main offices or provides remote access for Network Admins. It also offers flexibility for network management, including Port Forwarding, SPI Firewall, Content Filtering, Bandwidth Management, QoS and more. The series includes models with built-in 11n Wi-Fi.
Specs
| Networking |
| Networking standards |
IEEE 802.1Q |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| VLAN support |
Y |
| Multicast support |
Y |
| Number of users |
30 user(s) |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Power |
| Power source type |
DC |
| Output voltage |
12 V |
| Output current |
1 A |
| Weight & dimensions |
| Width |
131 mm |
| Depth |
207 mm |
| Height |
39 mm |
| Weight |
440 g |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| DC-in jack |
Y |
| Security |
| Security algorithms |
MD5,SHA-1,SHA-256 |
| URL filtering |
Y |
| DoS attack prevention |
Y |
| Network address translation (NAT) |
Y |
| VPN tunnels quantity |
2 |
| DSL features |
| Internal modem |
Y |
| ADSL |
Y |
| ADSL2 |
Y |
| ADSL2+ |
Y |
| DSL |
Y |
| VDSL |
Y |
| VDSL2 |
Y |
| Protocols |
| DHCP client |
Y |
| DHCP server |
Y |
| Routing protocols |
RIP-2 |
| Management features |
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Mobile networking |
| 3G |
Y |
| 4G |
Y |
| 4G standard |
LTE |
| 4G bands supported |
800,900,1800,2100,2600 MHz |
| Design |
| Product colour |
White |
| On/off switch |
Y |
| WAN connection |
| Ethernet WAN |
Y |
| DSL WAN |
Y |
| SIM card slot |
Y |
| 3G/4G USB modem compatibility |
N |
Features
Draytek V2620LN-K. Networking standards: IEEE 802.1Q, Ethernet LAN data rates: 10,100,1000 Mbit/s, Number of users: 30 user(s). 4G standard: LTE, 4G bands supported: 800,900,1800,2100,2600 MHz. Routing protocols: RIP-2. Security algorithms: MD5,SHA-1,SHA-256. Product colour: White
Product Description
Vigor2620 LTE Series is a VDSL2/ADSL2+ modem router with 2 embedded SIM card slots (1 SIM online at a time) for 4G/LTE failover. It is equipped with 2x Gigabit Ethernet LAN ports, one of which is switchable to an additional backup WAN interface. It's the solution for SMBs to minimize Internet downtime.
Vigor2620 LTE Series is a versatile router for a business network around 30 hosts. It can have two concurrent VPN tunnels to link to the main offices or provides remote access for Network Admins. It also offers flexibility for network management, including Port Forwarding, SPI Firewall, Content Filtering, Bandwidth Management, QoS and more. The series includes models with built-in 11n Wi-Fi.
