Stock Status: 1x unit in stock

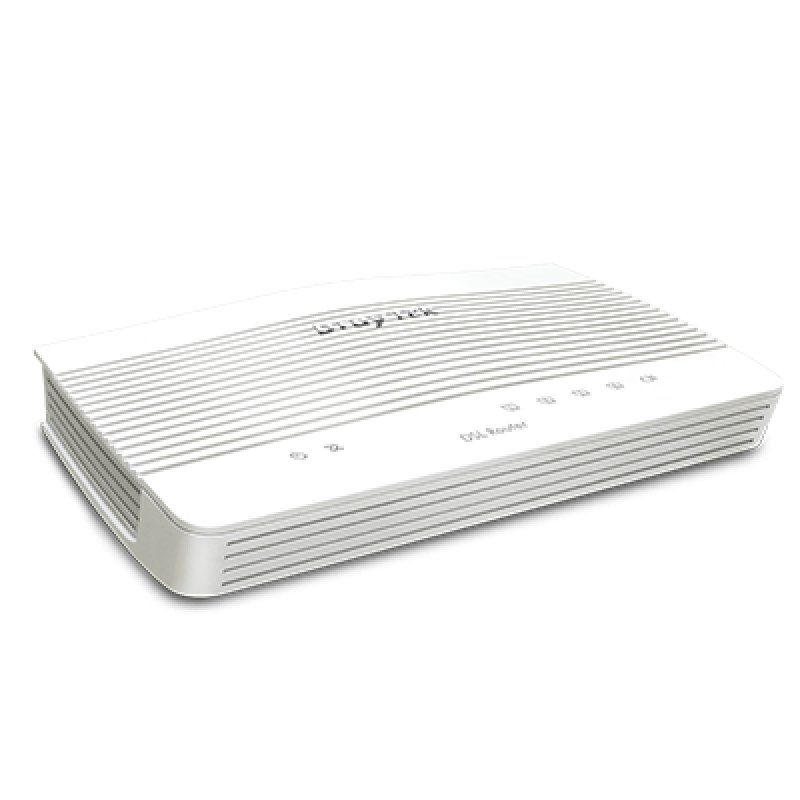

VDSL and Ethernet Router
Connect the Vigor 2763 to Superfast Fibre with its integrated VDSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN.
Benefits: Suitable for all UK Broadband services. DrayTek Firewall, Content Filtering and Quality of Service.
Quality of Service with App QoS
Prioritise essential services easily with DrayTek's App QoS system and Auto-VoIP prioritisation. Customise QoS for your network with four QoS priority queues.
Benefits: Get the best quality and overall performance from your Internet connection.
Packed With Features
Configure DrayTek’s rich feature set to fit your network with App level network management, Route Policy, Quality of Service, VPN Matcher, advanced 2-factor security, DrayDDNS and more.
Benefits: Convenient and powerful DrayTek router features for hassle-free networking.
Powerful SoHo VPN Router
Connect remote locations with 2 VPN tunnels for Remote Dial-In User Teleworker and Dial-Out LAN to LAN VPN. Up to 200Mbps IPsec performance, with SSL and OpenVPN support.
Benefits: Securely access resources remotely. Connect to VPN services for secure browsing.
4 Gigabit LAN Ports with VLANs
Allows Computers, Servers and Network Attached Storage to transfer at Gigabit speed. Up to 4 LAN subnets and VLANs allow you to keep Guest networks from accessing private network data.
Benefits: Improve quality of service for private and guest data traffic.
VigorACS Central Management
DrayTek's powerful VigorACS central management platform allows you to manage, monitor and configure the Vigor 2763, along with all other DrayTek products remotely across multiple locations.
Benefits: Save time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.
The Ideal SoHo VPN Router for VDSL and Gigabit Fibre
The DrayTek Vigor 2763 series VDSL and Ethernet VPN routers are ideal for Small Office and Home Office networks. Featuring powerful Firewall and Content Filtering, configurable Quality of Service and an array of VPN capabilities, with the performance to make full use of FTTP Fibre Broadband.
Incorporating Wireless in the Vigor 2763ac model, the Vigor 2763 series provide a reliable, highly integrated and reliable connectivity solution for SoHo networks.
Specs
| Networking |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Cabling technology |
10/100 |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Forwarding rate |
950 Mpps |
| Static route |
Y |
| VLAN support |
Y |
| Port forwarding |
Y |
| Policy-based routing |
Y |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Power |
| Power consumption (typical) |
15 W |
| AC input voltage |
100 - 240 V |
| Weight & dimensions |
| Width |
207 mm |
| Depth |
131 mm |
| Height |
42 mm |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
4 |
| USB ports quantity |
2 |
| DC-in jack |
Y |
| Security |
| Security algorithms |
128-bit AES, 192-bit AES, 256-bit AES, HTTPS, SHA-1, SHA-256, SNMP, SSH |
| Firewall |
Y |
| IP address filtering |
Y |
| DoS attack prevention |
Y |
| ARP attack prevention |
Y |
| Access Control List (ACL) |
Y |
| Network address translation (NAT) |
Y |
| Guest access |
Y |
| DSL features |
| ADSL |
Y |
| ADSL2 |
Y |
| ADSL2+ |
Y |
| DSL |
Y |
| VDSL2 |
Y |
| Modem speed |
950000 Kbit/s |
| Protocols |
| DHCP client |
Y |
| DHCP server |
Y |
| DMZ support |
Y |
| IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL) |
| Management features |
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
| Universal Plug and Play (UPnP) |
Y |
| Priority mapping |
Y |
| Traffic shaping |
Y |
| Reset button |
Y |
| Other features |
| Power requirements |
100-240VAC |
| Power supply type |
external PSU |
| Switch type |
Managed |
| USB connector type |
USB Type-A |
| Mobile networking |
| Mobile network generation |
4G |
| Design |
| Product colour |
White |
| Wall mountable |
Y |
| LED indicators |
Y |
| On/off switch |
Y |
| WAN connection |
| Ethernet WAN |
Y |
| DSL WAN |
Y |
| SIM card slot |
N |
| Packaging data |
| Cables included |
DC, LAN (RJ-45) |
| Quick start guide |
Y |
Features
Draytek Vigor 2763 ADSL. Networking standards: IEEE 802.1Q, IEEE 802.1p, Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Cabling technology: 10/100. Mobile network generation: 4G. Modem speed: 950000 Kbit/s. IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL). Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, HTTPS, SHA-1, SHA-256, SNMP, SSH
Product Description
VDSL and Ethernet Router
Connect the Vigor 2763 to Superfast Fibre with its integrated VDSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN.
Benefits: Suitable for all UK Broadband services. DrayTek Firewall, Content Filtering and Quality of Service.
Quality of Service with App QoS
Prioritise essential services easily with DrayTek's App QoS system and Auto-VoIP prioritisation. Customise QoS for your network with four QoS priority queues.
Benefits: Get the best quality and overall performance from your Internet connection.
Packed With Features
Configure DrayTek’s rich feature set to fit your network with App level network management, Route Policy, Quality of Service, VPN Matcher, advanced 2-factor security, DrayDDNS and more.
Benefits: Convenient and powerful DrayTek router features for hassle-free networking.
Powerful SoHo VPN Router
Connect remote locations with 2 VPN tunnels for Remote Dial-In User Teleworker and Dial-Out LAN to LAN VPN. Up to 200Mbps IPsec performance, with SSL and OpenVPN support.
Benefits: Securely access resources remotely. Connect to VPN services for secure browsing.
4 Gigabit LAN Ports with VLANs
Allows Computers, Servers and Network Attached Storage to transfer at Gigabit speed. Up to 4 LAN subnets and VLANs allow you to keep Guest networks from accessing private network data.
Benefits: Improve quality of service for private and guest data traffic.
VigorACS Central Management
DrayTek's powerful VigorACS central management platform allows you to manage, monitor and configure the Vigor 2763, along with all other DrayTek products remotely across multiple locations.
Benefits: Save time and money. Easily provision, monitor and manage remote sites without on-site IT or dedicated staff.
The Ideal SoHo VPN Router for VDSL and Gigabit Fibre
The DrayTek Vigor 2763 series VDSL and Ethernet VPN routers are ideal for Small Office and Home Office networks. Featuring powerful Firewall and Content Filtering, configurable Quality of Service and an array of VPN capabilities, with the performance to make full use of FTTP Fibre Broadband.
Incorporating Wireless in the Vigor 2763ac model, the Vigor 2763 series provide a reliable, highly integrated and reliable connectivity solution for SoHo networks.
