Stock Status: 1x unit in stock

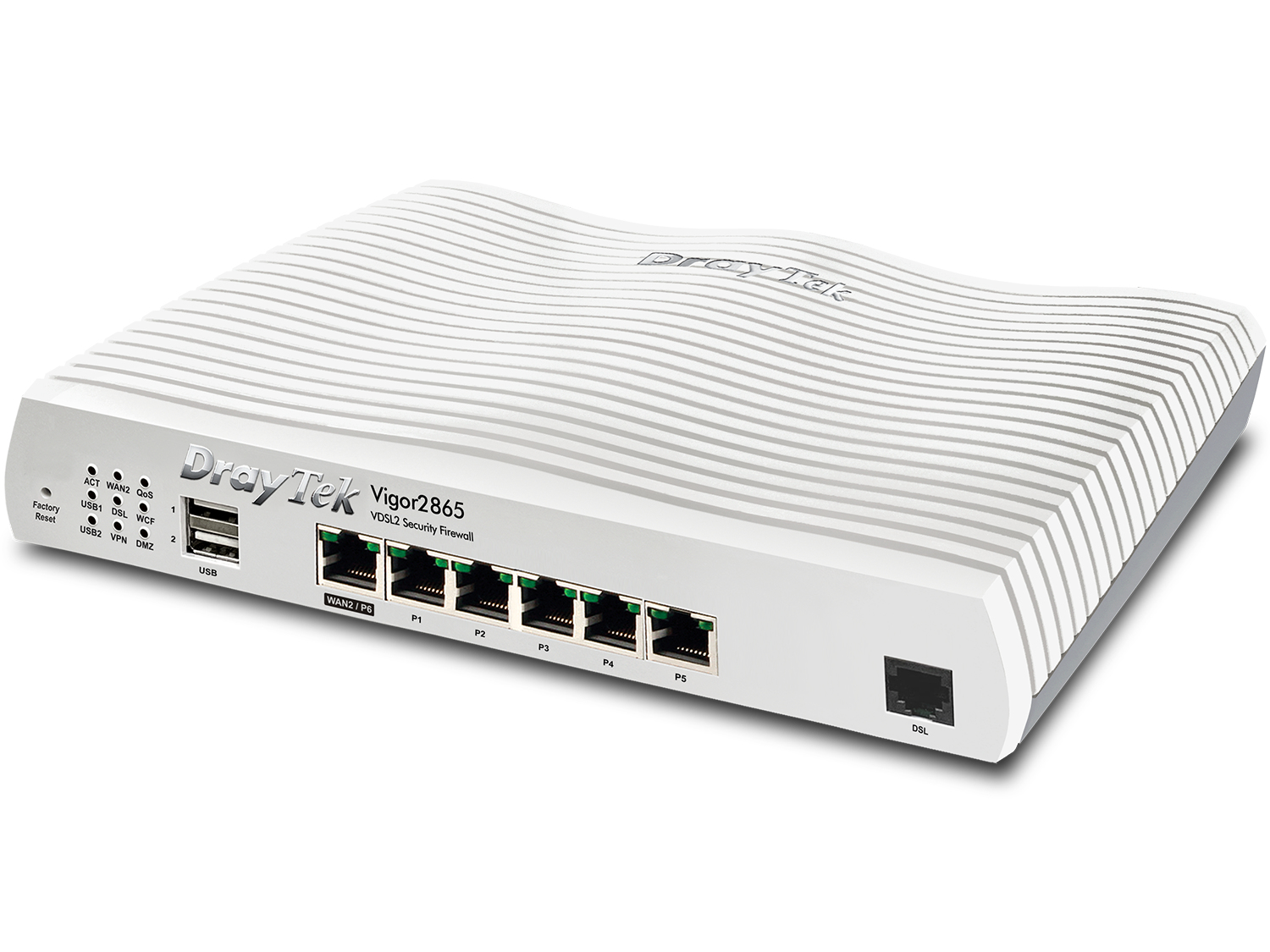

Vigor2865 Series is a VDSL2 35b/ADSL2+ Security Firewall router integrating a DSL modem which is compatible with variants of ADSL and VDSL, including profile 35b supervectoring. There is also a Gigabit Ethernet WAN port for broadband connections to share the traffic load or serve as a failover connection. 3G/4G/LTE USB modem can also be attached to the USB ports of the router. The 2865 LTE series includes models with built-in 802.11ac Wave 2 wireless standard and VoIP gateway.
VoIP First
VoIP is always with top priority! With default UDP 5060 port (configurable), VoIP QoS is out-of-box ready.
Improve Experience for Business-Critical Apps
Select your business critical apps, and easily put them into QoS classes.
Flexible Bandwidth Allocation
Bandwidth will be reserved for high-priority classes, and can be used by low-priority classes when available.
Specs
| Networking |
| Networking standards |
IEEE 802.1Q |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Y |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Power |
| Power consumption (typical) |
24 W |
| Power source type |
AC |
| AC input voltage |
220 - 240 V |
| Output voltage |
12 V |
| Weight & dimensions |
| Width |
241 mm |
| Depth |
166 mm |
| Height |
46 mm |
| Weight |
620 g |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
6 |
| RJ-11 ports quantity |
1 |
| Security |
| Security algorithms |
WEP,WPA,WPA2 |
| Firewall |
Y |
| Access Control List (ACL) |
Y |
| Network address translation (NAT) |
Y |
| DSL features |
| ADSL |
Y |
| ADSL2 |
Y |
| ADSL2+ |
Y |
| VDSL |
Y |
| VDSL2 |
Y |
| Protocols |
| DHCP client |
Y |
| DHCP server |
Y |
| Management features |
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
| Design |
| Product colour |
Grey |
| Wall mountable |
Y |
| LED indicators |
DSL,LTE |
| On/off switch |
Y |
| WAN connection |
| Ethernet WAN |
Y |
| DSL WAN |
Y |
| SIM card slot |
Y |
| 3G/4G USB modem compatibility |
Y |
| Packaging data |
| AC adapter included |
Y |
| Quick start guide |
Y |
Features
Draytek Vigor 2865. Networking standards: IEEE 802.1Q, Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: WEP,WPA,WPA2. Product colour: Grey, LED indicators: DSL,LTE. Power consumption (typical): 24 W, Power source type: AC, AC input voltage: 220 - 240 V. Width: 241 mm, Depth: 166 mm, Height: 46 mm
Product Description
Vigor2865 Series is a VDSL2 35b/ADSL2+ Security Firewall router integrating a DSL modem which is compatible with variants of ADSL and VDSL, including profile 35b supervectoring. There is also a Gigabit Ethernet WAN port for broadband connections to share the traffic load or serve as a failover connection. 3G/4G/LTE USB modem can also be attached to the USB ports of the router. The 2865 LTE series includes models with built-in 802.11ac Wave 2 wireless standard and VoIP gateway.
VoIP First
VoIP is always with top priority! With default UDP 5060 port (configurable), VoIP QoS is out-of-box ready.
Improve Experience for Business-Critical Apps
Select your business critical apps, and easily put them into QoS classes.
Flexible Bandwidth Allocation
Bandwidth will be reserved for high-priority classes, and can be used by low-priority classes when available.
