Stock Status: 1x unit in stock

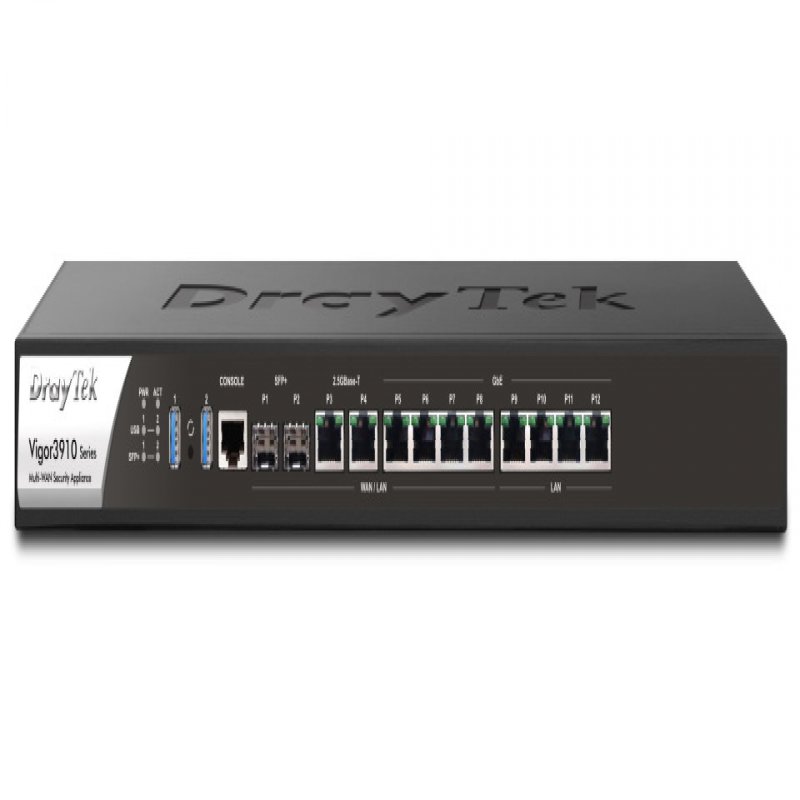

The Vigor 3910 is a Multi-WAN VPN Router designed for high performance and capable of handling the requirements of large and complex networks, with applications including Remote Access, Firewalling, Load-Balancing and Failover.
Featuring 12 LAN and WAN interfaces in total, 4 dedicated LAN ports and 8 switchable ports that can operate as LAN or WAN ports to fit your network requirements.
With up to 9Gb/s of NAT & Firewall throughput, the Vigor 3910 is suitable for the most demanding and bandwidth intensive SME applications. Each of the WAN ports on the Vigor 3910 can be grouped together to provide Load Balancing or operate as Failover or Backup WAN connections.
Based on the familiar DrayOS platform, the Vigor 3910 combines high performance and capacity with DrayTek's traditional ease of use and comprehensive feature set.
For multi-tenant or departmental flexibility, the Vigor3910 will support multiple LAN IP subnets, together with VLAN capabilities and user management, providing access to WAN resources only to the appropriate users or departments, as well as maintaining infrastructure efficiency.
Specs
| Networking |
| Networking standards |
IEEE 802.1Q |
| Ethernet interface type |
10 Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000,2500,10000 Mbit/s |
| Forwarding rate |
3300 Mpps |
| Throughput |
9 Gbit/s |
| VLAN support |
Y |
| Multicast support |
Y |
| Traffic control |
Y |
| Policy-based routing |
Y |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 55 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Power |
| Power consumption (typical) |
35 W |
| AC input voltage |
220 - 240 V |
| Weight & dimensions |
| Width |
443 mm |
| Depth |
285 mm |
| Height |
45 mm |
| Weight |
3.23 kg |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
8 |
| Installed SFP+ modules quantity |
2 |
| USB ports quantity |
2 |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| RS-232 ports |
1 |
| Security |
| Security algorithms |
HTTPS,SSH |
| Firewall |
Y |
| URL filtering |
Y |
| IP address filtering |
Y |
| DoS attack prevention |
Y |
| Network address translation (NAT) |
Y |
| VPN tunnels quantity |
500 |
| Protocols |
| DHCP client |
Y |
| DHCP server |
Y |
| DMZ support |
Y |
| Routing protocols |
BGP,OSPFv2,RIP-1,RIP-2,RIPng |
| Management features |
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Firmware upgradeable |
Y |
| Design |
| Product colour |
Black, White |
| Rack mounting |
Y |
| Rack capacity |
1U |
| WAN connection |
| Ethernet WAN |
Y |
| Packaging data |
| AC adapter included |
Y |
| Cables included |
LAN (RJ-45) |
| Quick start guide |
Y |
| Features |
| Built-in processor |
Y |
Features
Draytek Vigor 3910. Networking standards: IEEE 802.1Q, Ethernet interface type: 10 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s. USB version: 2.0/3.2 Gen 1 (3.1 Gen 1). Routing protocols: BGP,OSPFv2,RIP-1,RIP-2,RIPng. Security algorithms: HTTPS,SSH. Product colour: Black, White, Rack capacity: 1U
Product Description
The Vigor 3910 is a Multi-WAN VPN Router designed for high performance and capable of handling the requirements of large and complex networks, with applications including Remote Access, Firewalling, Load-Balancing and Failover.
Featuring 12 LAN and WAN interfaces in total, 4 dedicated LAN ports and 8 switchable ports that can operate as LAN or WAN ports to fit your network requirements.
With up to 9Gb/s of NAT & Firewall throughput, the Vigor 3910 is suitable for the most demanding and bandwidth intensive SME applications. Each of the WAN ports on the Vigor 3910 can be grouped together to provide Load Balancing or operate as Failover or Backup WAN connections.
Based on the familiar DrayOS platform, the Vigor 3910 combines high performance and capacity with DrayTek's traditional ease of use and comprehensive feature set.
For multi-tenant or departmental flexibility, the Vigor3910 will support multiple LAN IP subnets, together with VLAN capabilities and user management, providing access to WAN resources only to the appropriate users or departments, as well as maintaining infrastructure efficiency.
