Stock Status: 1x unit in stock

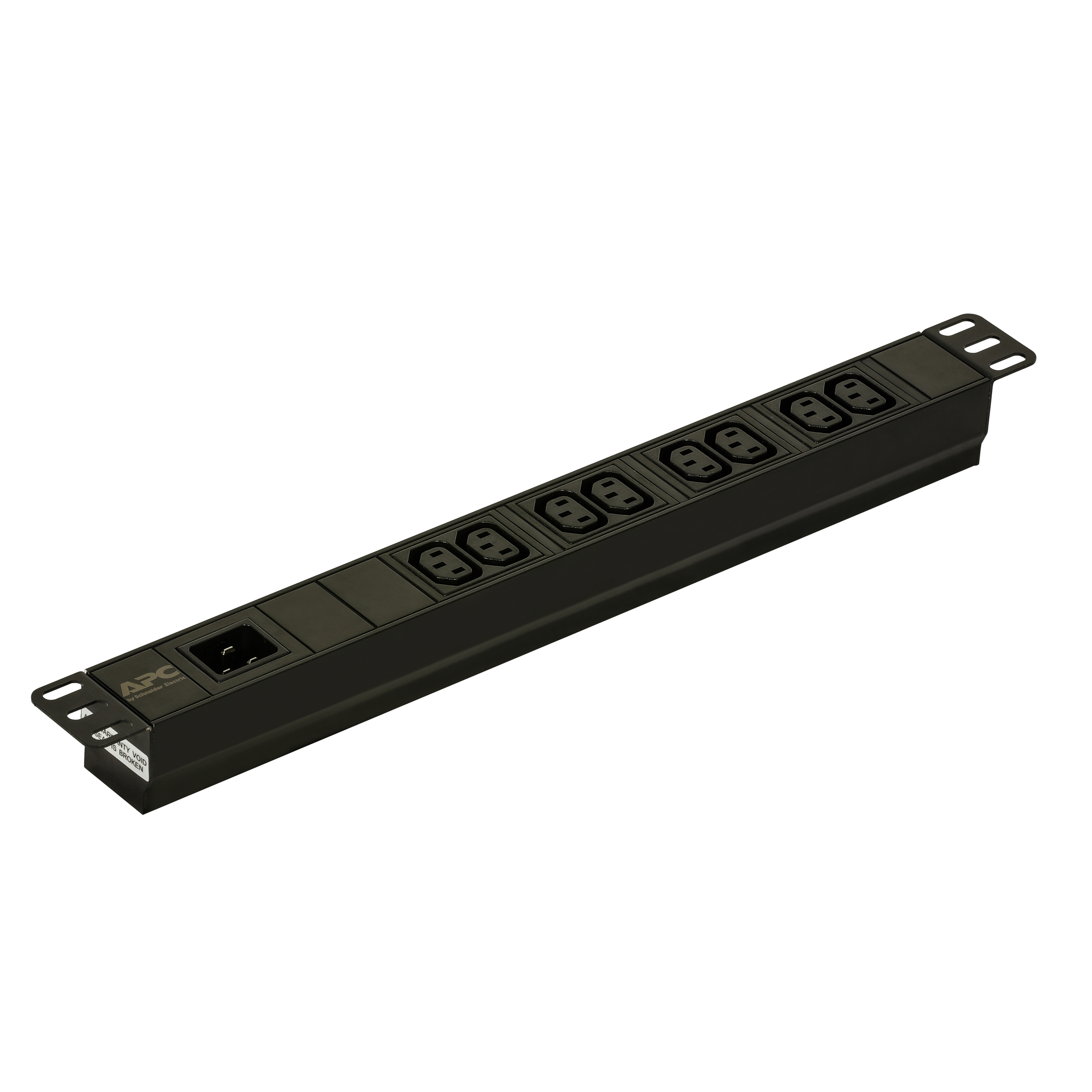

APC Easy Basic Rack PDU EPDU1016B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is horizontal rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1016B has IEC-320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. The packaging includes cable, installation guide, user manual and rack mounting brackets for quick and easy mounting inside the rack. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections.
Specs
| Weight & dimensions |
| Width |
482 mm |
| Depth |
44 mm |
| Height |
44 mm |
| Weight |
580 g |
| Operational conditions |
| Operating temperature (T-T) |
-5 - 45 °C |
| Storage temperature (T-T) |
-25 - 65 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Power |
| Nominal input voltage |
200/208/230 V |
| Maximum current |
16 A |
| AC input frequency |
50 - 60 Hz |
| Nominal output voltage |
208/230 V |
| Load capacity |
3680 VA |
| Maximum input current per phase |
16 A |
| Maximum power |
3680 W |
| Ports & interfaces |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C20 coupler |
| Packaging content |
| Manual |
Yes |
| Design |
| PDU types |
Basic |
| Rack capacity |
1U |
| Type |
Single-phase |
| Mounting |
Horizontal |
| Housing material |
Aluminium |
| Product colour |
Black |
| On/off switch |
No |
| Technical details |
| Compliance certificates |
RoHS |
| Features |
| Daisy chain |
No |
| Cable length |
2.5 m |
| Certification |
CE, TUV |
| Packaging data |
| Package weight |
1.18 kg |
| Package width |
560 mm |
| Package depth |
80 mm |
| Package height |
150 mm |
Features
APC Easy Rack PDU, Basic, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet. PDU types: Basic, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Cable length: 2.5 m, Certification: CE, TUV. Nominal input voltage: 200/208/230 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz. Width: 482 mm, Depth: 44 mm, Height: 44 mm
Product Description
APC Easy Basic Rack PDU EPDU1016B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is horizontal rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1016B has IEC-320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. The packaging includes cable, installation guide, user manual and rack mounting brackets for quick and easy mounting inside the rack. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections.
