Stock Status: 1x unit in stock

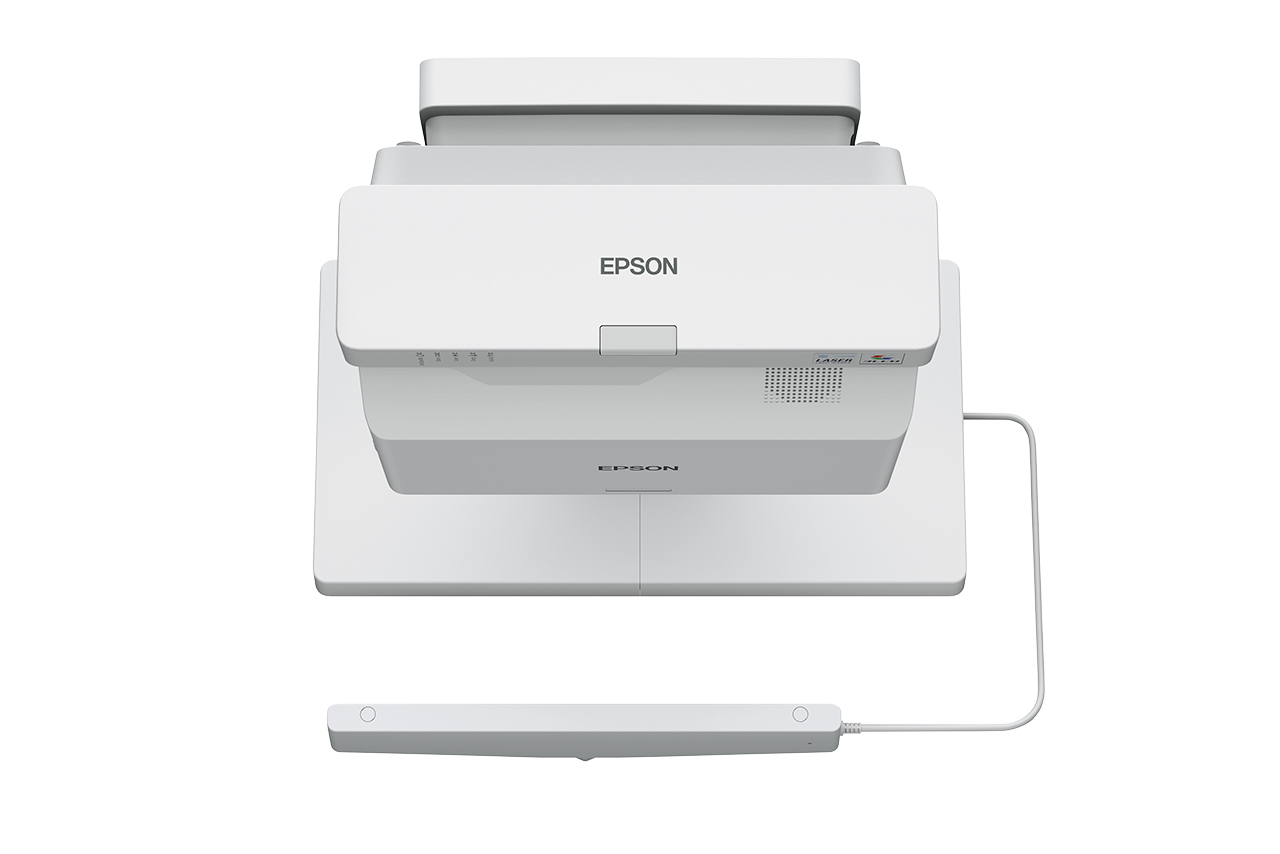

The EB-760Wi is a step up from the EB-760W, with added interactive features.
Interactive technology enables two digital pens to be used simultaneously on the display (finger touch available through optional accessory FT01). Presentations can be controlled and brought to life with on-screen annotations, while a variety of convenient built-in tools support productivity. An optional Epson visualiser camera can be controlled via the display, projecting documents or objects from a desk for everyone to see in incredible HD detail.
The ultra short throw lens allows safe, discreet positioning above the display, enabling presenters free access to interact without casting shadows.
With a 4,100 lumens laser-light source, combined with 3LCD technology, it produces a large, bright and vibrant display up to 100", visibly clear from all angles and at a distance.
Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots from certain angles, and presenters are not subjected to LCD panel direct blue light radiation, believed to damage eyes.
Specs
| Weight & dimensions |
| Weight |
6 kg |
| Width |
356 mm |
| Depth |
395 mm |
| Height |
133 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
-10 - 90% |
| Projector |
| Projector brightness |
4100 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WXGA (1280x800) |
| Contrast ratio (typical) |
2500000:1 |
| Native aspect ratio |
16:10 |
| Smart projector |
No |
| Screen size compatibility |
1346.2 - 2540 mm (53 - 100") |
| Number of colours |
1.07 billion colours |
| Projector brightness (economic mode) |
2100 ANSI lumens |
| Keystone correction, horizontal |
-3 - 3° |
| Keystone correction, vertical |
-3 - 3° |
| Matrix size |
1.5 cm (0.59") |
| Video |
| Analog signal format system |
Not supported |
| Full HD |
No |
| 3D |
No |
| Display |
| Built-in display |
No |
| Lens system |
| Focus |
Manual |
| Fixed focal length |
3.7 mm |
| F-number (relative aperture) |
1.6 |
| Zoom ratio |
1.35:1 |
| Throw ratio |
0.27 - 0.37:1 |
| Power |
| Power source |
AC |
| Power consumption (typical) |
197 W |
| Power consumption (economy mode) |
141 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
3 |
| HDMI ports quantity |
3 |
| Composite video in |
1 |
| Component video (YPbPr/YCbCr) in |
0 |
| DVI port |
No |
| Serial interface type |
RS-232C |
| Service port type |
USB Type-B |
| USB 2.0 ports quantity |
2 |
| Headphone outputs |
3 |
| Microphone in |
Yes |
| Networking |
| Smart TV |
No |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast |
Yes |
| Storage |
| Card reader integrated |
No |
| Packaging content |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Cables included |
AC, USB |
| Interactive pen included |
Yes |
| Design |
| Market positioning |
Presentation |
| Product colour |
White |
| Placement |
Ceiling, Desktop, Wall |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Multimedia |
| Built-in speaker(s) |
Yes |
| RMS rated power |
16 W |
| Features |
| Noise level |
37 dB |
| Interactive |
Yes |
| Noise level (economic mode) |
27 dB |
| On Screen Display (OSD) |
Yes |
| Air filter |
Yes |
| Light source |
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
Features
Epson EB-760Wi. Projector brightness: 4100 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280x800). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Fixed focal length: 3.7 mm, Zoom ratio: 1.35:1. Serial interface type: RS-232C, Service port type: USB Type-B. Ethernet LAN data rates: 10,100 Mbit/s, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Product Description
The EB-760Wi is a step up from the EB-760W, with added interactive features.
Interactive technology enables two digital pens to be used simultaneously on the display (finger touch available through optional accessory FT01). Presentations can be controlled and brought to life with on-screen annotations, while a variety of convenient built-in tools support productivity. An optional Epson visualiser camera can be controlled via the display, projecting documents or objects from a desk for everyone to see in incredible HD detail.
The ultra short throw lens allows safe, discreet positioning above the display, enabling presenters free access to interact without casting shadows.
With a 4,100 lumens laser-light source, combined with 3LCD technology, it produces a large, bright and vibrant display up to 100", visibly clear from all angles and at a distance.
Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots from certain angles, and presenters are not subjected to LCD panel direct blue light radiation, believed to damage eyes.
