Stock Status: 1x unit in stock
The ideal scalable and affordable display solution for informative signage needs.

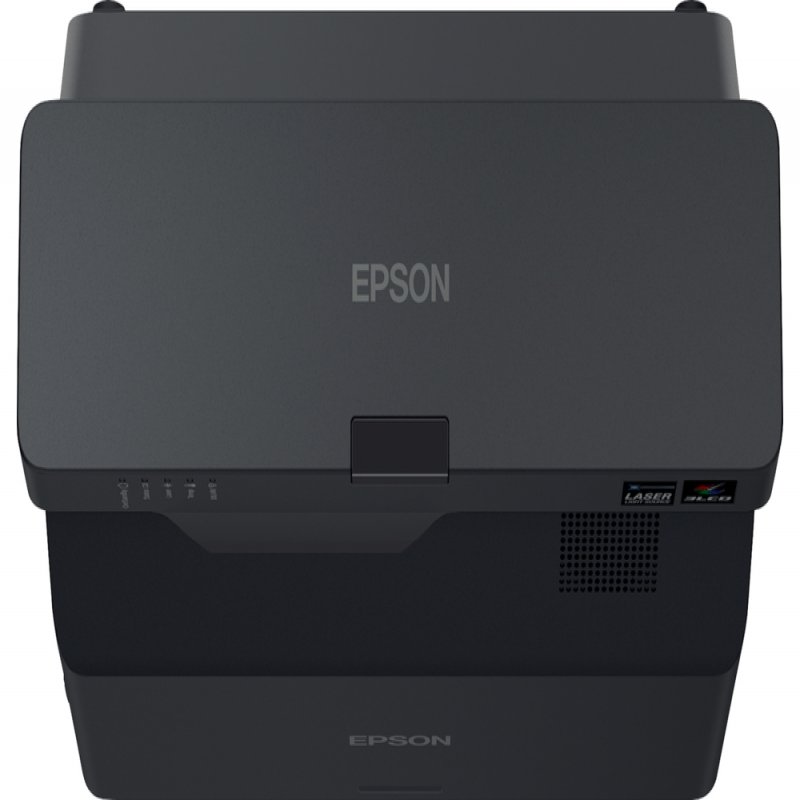

The EB-775F is a cost effective way to create large, informative and immersive displays on multiple surfaces and in tight spaces at full HD and up to 4,100 lumens.
It is designed to display visitor and customer information (e.g. in hospitality, retail and offices), exhibition information - even projecting directly onto exhibits - and boardroom presentations or school lessons.
Create enaging displays
Epson's advanced laser technology makes this a flexible and easy to use digital signage solution. Create enaging displays up to 150" (larger when using 2 devices) at up to 4,100 lumens for easy visibility in bright environments.
Bring any surface to life, discretely
The EB-775F can be installed on wall or ceiling and can project onto almost any surface (even unconventional surfaces such as floor or pillars). It's UST design also makes it ideal for projecting large images in tight spaces. Choose between a black (EB-775F) or white (EB-770F) model to discretely blend it into your environment - it can even be hidden to create floating and borderless displays to surprise and delight audiences.
Robust, reliable and cost effective
Our laser technology is also robust and low maintenance. Offering up to 20,000 hours maintenance-free use and a 5 year warranty, this is a fit-and-forget display solution you can rely on at a cost-effective price.
Flexible playback options
Epson offers free apps for content creation (Epson Creative Projection & Epson Projector Content Management). Content can be played directly from USB (including playlists, videos, and signage content) via the built-in playback feature, or users can upload and playback content wirelessly with built-in Wi-Fi and Miracast.
Specs
| Weight & dimensions |
| Weight |
5.9 kg |
| Width |
356 mm |
| Depth |
395 mm |
| Height |
133 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Projector |
| Projector brightness |
4100 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
1080p (1920x1080) |
| Contrast ratio (typical) |
2500000:1 |
| Native aspect ratio |
16:9 |
| Screen size compatibility |
1244.6 - 3810 mm (49 - 150") |
| Supported aspect ratios |
16:9, 21:9 |
| Video |
| Full HD |
Yes |
| Supported video modes |
1080p |
| Display |
| Built-in display |
No |
| Lens system |
| Focus |
Manual |
| Zoom capability |
Yes |
| Zoom ratio |
1.35:1 |
| Power |
| Power source |
AC |
| Power consumption (typical) |
263 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
2 |
| HDMI ports quantity |
3 |
| DVI port |
No |
| Audio (L/R) in |
2 |
| Serial interface type |
RS-232C |
| USB 2.0 ports quantity |
1 |
| USB 2.0 Type-B ports quantity |
1 |
| Audio (L/R) out |
1 |
| AC (power) in |
Yes |
| Networking |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Miracast |
Yes |
| Storage |
| Card reader integrated |
No |
| Packaging content |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Cables included |
AC |
| Quick start guide |
Yes |
| Manual |
Yes |
| Design |
| Product type |
Ultra short throw projector |
| Market positioning |
Presentation |
| Product colour |
Black |
| Multimedia |
| Built-in speaker(s) |
Yes |
| RMS rated power |
16 W |
| Number of built-in speakers |
1 |
| Technical details |
| Warranty period |
5 year(s) |
| Light source |
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Logistics data |
| Quantity per pack |
1 pc(s) |
Features
Epson EB-775F. Projector brightness: 4100 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Laser, Service life of light source: 20000 h. Focus: Manual, Zoom ratio: 1.35:1. Supported video modes: 1080p. Serial interface type: RS-232C
Product Description
The ideal scalable and affordable display solution for informative signage needs.
The EB-775F is a cost effective way to create large, informative and immersive displays on multiple surfaces and in tight spaces at full HD and up to 4,100 lumens.
It is designed to display visitor and customer information (e.g. in hospitality, retail and offices), exhibition information - even projecting directly onto exhibits - and boardroom presentations or school lessons.
Create enaging displays
Epson's advanced laser technology makes this a flexible and easy to use digital signage solution. Create enaging displays up to 150" (larger when using 2 devices) at up to 4,100 lumens for easy visibility in bright environments.
Bring any surface to life, discretely
The EB-775F can be installed on wall or ceiling and can project onto almost any surface (even unconventional surfaces such as floor or pillars). It's UST design also makes it ideal for projecting large images in tight spaces. Choose between a black (EB-775F) or white (EB-770F) model to discretely blend it into your environment - it can even be hidden to create floating and borderless displays to surprise and delight audiences.
Robust, reliable and cost effective
Our laser technology is also robust and low maintenance. Offering up to 20,000 hours maintenance-free use and a 5 year warranty, this is a fit-and-forget display solution you can rely on at a cost-effective price.
Flexible playback options
Epson offers free apps for content creation (Epson Creative Projection & Epson Projector Content Management). Content can be played directly from USB (including playlists, videos, and signage content) via the built-in playback feature, or users can upload and playback content wirelessly with built-in Wi-Fi and Miracast.
