Stock Status: 1x unit in stock

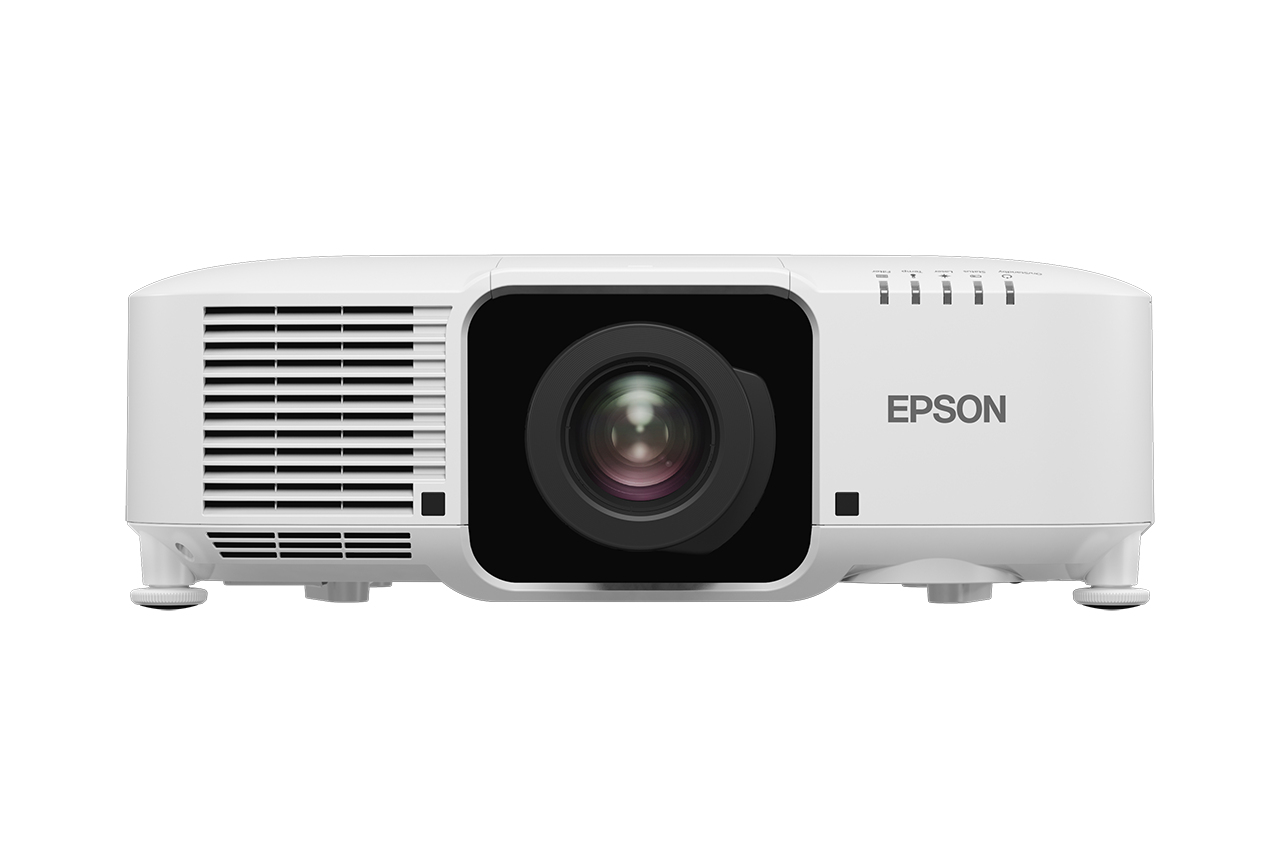

The EB-PU1006W is a compact and versatile high brightness projector with optional interchangeable lenses and advanced installation features.
This highly versatile 6,000 lumens installation projector is sold as 'body only' and pairs seamlessly with Epson’s existing lens family to deliver bright, true-to-life images in a wide variety of environments: from visitor attractions to lecture theatres, museums to meeting rooms. The high lumens EB-PU1006W offers WUXGA resolution with 4K enhancement, HDR and advanced installation features.
Superior image quality
The 6,000 lumens EB-PU1006W projects clear whites, vivid details, deep blacks, defined shadows and high contrast imagery.
Compact and lightweight
The compact size makes this projector more transportable and saves storage space, providing size and cost advantages to projector fleets. The unobtrusive design allows it to blend seamlessly into most environments.
Interchangeable lens support
The EB-PU1006W accommodates different lenses to suit a wide range of projection environments, including a zero-offset ultra-short-throw lens. Epson supplies the projector as ‘body only’, without a lens, which puts the power to build the right projection solution, for the right application, in the hands of the user.
Designed for installation agility
Produce large-scale, extremely bright displays, even as part of multi-projector installations where edge blending, stacking and lens flexibility is key. Epson Projector Professional Tool makes advanced installation techniques easy, such as projection mapping, while the optional external camera module (ELPEC01) uses built-in processing for PC-free geometry correction for stacking. The EB-PU1006W also features NFC for multi-projector set up, making diagnostics and installations easier using the Epson Projector Config Tool.
Specs
| Weight & dimensions |
| Weight |
15.4 kg |
| Width |
545 mm |
| Depth |
436 mm |
| Height |
189 mm |
| Package width |
561 mm |
| Package depth |
760 mm |
| Package height |
265 mm |
| Package weight |
20.6 kg |
| Operational conditions |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Projector |
| Projector brightness |
6000 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WUXGA (1920x1200) |
| Contrast ratio (typical) |
2000:1 |
| Native aspect ratio |
16:10 |
| Number of colours |
1.07 billion colours |
| Projector brightness (economic mode) |
4200 ANSI lumens |
| Projector brightness (portrait mode) |
6000 ANSI lumens |
| Keystone correction, horizontal |
-30 - 30° |
| Keystone correction, vertical |
-45 - 45° |
| Matrix size |
1.93 cm (0.76") |
| Heat dissipation |
1247.8 BTU/h |
| Video |
| Analog signal format system |
Not supported |
| Full HD |
Yes |
| 3D |
No |
| Video processing |
10 bit |
| Video colour modes |
Cinema, Dynamic, Natural, Presentation, DICOM simulation mode, Multi-projection, BT.709 |
| Display |
| Built-in display |
No |
| Lens system |
| Focal length range |
varies by lens |
| Zoom type |
Auto |
| Throw ratio |
0.35 - 10.11:1 |
| Interchangeable lens |
Yes |
| Power |
| Power source |
AC |
| Power consumption (typical) |
367 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (economy mode) |
310 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50 - 60 Hz |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| DVI port |
Yes |
| Audio (L/R) in |
1 |
| Serial interface type |
RS-232C |
| HDBaseT port |
Yes |
| USB 2.0 ports quantity |
2 |
| USB 2.0 Type-B ports quantity |
1 |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Storage |
| Card reader integrated |
No |
| Packaging content |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Cables included |
AC |
| Manual |
Yes |
| Warranty card |
Yes |
| WLAN adapter included |
Yes |
| Bundled software |
Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management, Epson Projektor Professional Tool |
| Other features |
| Supported network protocols |
HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Design |
| Product type |
Large venue projector |
| Market positioning |
Presentation |
| Product colour |
White |
| Placement |
Ceiling, Desktop, Flying frame |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Software |
| Software support |
via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery |
| Features |
| Noise level |
30 dB |
| Noise level (economic mode) |
28 dB |
| HDCP |
Yes |
| Country of origin |
Philippines |
| Password protection |
Yes |
| Light source |
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
| Logistics data |
| Quantity per pack |
1 pc(s) |
| Products per pallet |
14 pc(s) |
| Pallet gross weight |
0 g |
| Products per pallet (UK) |
14 pc(s) |
| Pallet weight (UK) |
0 g |
| Harmonized System (HS) code |
85286200 |
Features
Epson EB-PU1006W. Projector brightness: 6000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focal length range: varies by lens, Zoom type: Auto, Throw ratio: 0.35 - 10.11:1. Video processing: 10 bit, Video colour modes: Cinema, Dynamic, Natural, Presentation, DICOM simulation mode, Multi-projection, BT.709. Serial interface type: RS-232C
Product Description
The EB-PU1006W is a compact and versatile high brightness projector with optional interchangeable lenses and advanced installation features.
This highly versatile 6,000 lumens installation projector is sold as 'body only' and pairs seamlessly with Epson’s existing lens family to deliver bright, true-to-life images in a wide variety of environments: from visitor attractions to lecture theatres, museums to meeting rooms. The high lumens EB-PU1006W offers WUXGA resolution with 4K enhancement, HDR and advanced installation features.
Superior image quality
The 6,000 lumens EB-PU1006W projects clear whites, vivid details, deep blacks, defined shadows and high contrast imagery.
Compact and lightweight
The compact size makes this projector more transportable and saves storage space, providing size and cost advantages to projector fleets. The unobtrusive design allows it to blend seamlessly into most environments.
Interchangeable lens support
The EB-PU1006W accommodates different lenses to suit a wide range of projection environments, including a zero-offset ultra-short-throw lens. Epson supplies the projector as ‘body only’, without a lens, which puts the power to build the right projection solution, for the right application, in the hands of the user.
Designed for installation agility
Produce large-scale, extremely bright displays, even as part of multi-projector installations where edge blending, stacking and lens flexibility is key. Epson Projector Professional Tool makes advanced installation techniques easy, such as projection mapping, while the optional external camera module (ELPEC01) uses built-in processing for PC-free geometry correction for stacking. The EB-PU1006W also features NFC for multi-projector set up, making diagnostics and installations easier using the Epson Projector Config Tool.
