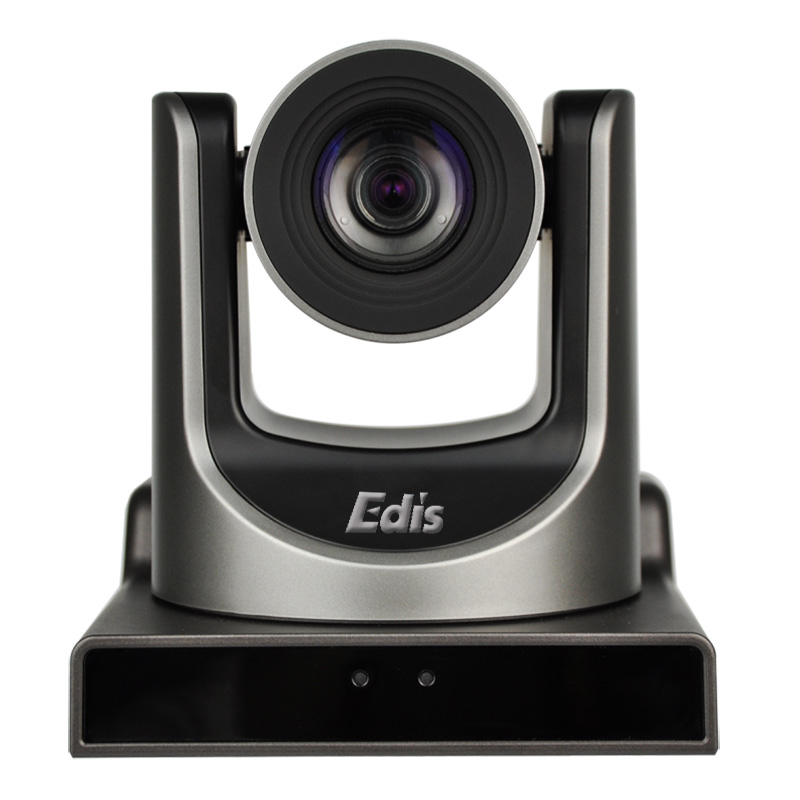

Edis 20x Hdmi Sdi Camera V60cl

Part Number: V60CL

Manufacturer: Edis

Condition: New

Short Description:

Edis 20x Hdmi Sdi Camera V60cl

Edis 20x Hdmi Sdi Camera V60cl

£972.00 - Inc VAT

Click the Follow Button below to see the latest discount:

For medium sized churches or halls a 20x zoom camera is ideal for distances of up to 65 feet (20 to 25 metre)



Weight & dimensions
Width 152 mm
Depth 146 mm
Height 164 mm
Weight 1.35 kg
Megapixel 2.07 MP
Sensor type CMOS
Optical sensor size 25.4 / 2.8 mm (1 / 2.8")
Optical zoom 20x
Digital zoom 16x
Focal length range 4.42 - 88.5 mm
Horizontal field of view 60.7°
Minimum illumination 0.5 lx
White balance Auto, Indoor, Manual, One push, Outdoor
Signal-to-Noise Ratio (SNR) 55 dB
Number of camera presets 255
Gain control type Auto
Aperture range (F-F) 1.8 - 2.8
3D NR (Noise Reduction) Y
Operational conditions
Operating temperature (T-T) -10 - 40 °C
Storage temperature (T-T) -40 - 60 °C
Power source type DC
DC input voltage 12 V
Maximum video resolution 1920 x 1080 pixels
Maximum frame rate 60 fps
HD type Full HD
Supported video modes 480i,576i,720p,1080i,1080p
Video formats supported H.264,M-JPEG
Supported graphics resolutions 320 x 240,720 x 480,720 x 576,1280 x 720 (HD 720),1920 x 1080 (HD 1080)
Ports & interfaces
HDMI ports quantity 1
HDMI version 1.3
USB 2.0 ports quantity 1
BNC output ports 1
RS-232 input ports 1
RS-232 output ports 1
RS-485 ports 1
Ethernet LAN (RJ-45) ports 1
DC-in jack Y
3G-SDI output Y
Product colour Black, Silver
Tilt speed (min) 1.7 °/sec
Tilt speed (max) 69.9 °/sec
Pan speed (min) 1.7 °/sec
Pan speed (max) 100 °/sec
Packaging content
Handheld remote control Y
Cables included AC
AC adapter included Y
Noise reduction Y
Automatic gain control Y
Networking standards IEEE 802.3af
Ethernet LAN data rates 10,100 Mbit/s
Supported network protocols TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, GB/T28181

Related Products

Refurbished Printers


EDIS V60CL. Megapixel: 2.07 MP, Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Maximum video resolution: 1920 x 1080 pixels, Maximum frame rate: 60 fps, HD type: Full HD. Product colour: Black, Silver, Tilt speed (min): 1.7 °/sec, Tilt speed (max): 69.9 °/sec. Power source type: DC, DC input voltage: 12 V. Cables included: AC

Product Description

For medium sized churches or halls a 20x zoom camera is ideal for distances of up to 65 feet (20 to 25 metre)
