Stock Status: 1x unit in stock
The ColorEdge CS2400S is the perfect entry into the world of maximum precision: the panel offers extremely wide coverage of the relevant colour spaces (e.g. 99 % AdobeRGB). The Digital Uniformity Equalizer (DUE) ensures homogeneous image representation and the 16-bit look-up table guarantees absolutely precise colour representation with up to 10 bits. On the one hand, the exact factory calibration guarantees the highest precision "out of the box". On the other hand, the regularly recommended recalibration is done in no time at all. This means that photographers, filmmakers or image editors can always rely on their monitor to show them an absolutely precise view of their image file. The docking functions via USB-C allow the image signal to be transferred and the monitor’s USB hub to be powered with just one cable. In addition, a mobile device can be supplied with up to 70 watts of charging current. In this way, the CS2400S becomes the central dock of the creative workflow with a flick of the wrist. Alternatively, the monitor can of course also be operated via HDMI or DisplayPort as well as USB-B upstream. The CS2400S-LE is fully compatible with all Windows PCs and Intel Macs. Apple M1/2 devices may currently be incompatible due to a special feature of the image signal.
Specs
| Weight & dimensions |
| Width (with stand) |
554.4 mm |
| Depth (with stand) |
245 mm |
| Height (with stand) |
396 mm |
| Weight (with stand) |
8.2 kg |
| Width (without stand) |
554.4 mm |
| Depth (without stand) |
64 mm |
| Height (without stand) |
362 mm |
| Weight (without stand) |
5.2 kg |
| Power |
| Energy efficiency class (SDR) |
E |
| Energy efficiency class (HDR) |
Not available |
| Energy consumption (SDR) per 1000 hours |
16 kWh |
| Power consumption (typical) |
18 W |
| Power consumption (standby) |
0.3 W |
| Power consumption (max) |
149 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| European Product Registry for Energy Labelling (EPREL) code |
1389790 |
| Display |
| Display diagonal |
61.2 cm (24.1") |
| Display resolution |
1920 x 1200 pixels |
| Native aspect ratio |
16:10 |
| Display technology |
LED |
| Touchscreen |
No |
| HD type |
WUXGA |
| Panel type |
IPS |
| Response time |
19 ms |
| Screen shape |
Flat |
| Contrast ratio (typical) |
1350:1 |
| Maximum refresh rate |
60 Hz |
| Display number of colours |
1.07 billion colours |
| Display brightness (typical) |
410 cd/m² |
| Anti-glare screen |
Yes |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.27 x 0.27 mm |
| Pixel density |
94 ppi |
| Horizontal scan range |
15 - 76 kHz |
| Vertical scan range |
23 - 61 Hz |
| Viewable size, horizontal |
51.8 cm |
| Viewable size, vertical |
32.4 cm |
| Display diagonal (metric) |
61.1 cm |
| Colour gamut standard |
Adobe RGB |
| sRGB coverage (typical) |
100% |
| Adobe RGB coverage |
99% |
| DCI-P3 coverage |
99% |
| Operational conditions |
| Operating temperature (T-T) |
0 - 35 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Ports & interfaces |
| Built-in USB hub |
Yes |
| HDMI |
Yes |
| USB upstream port type |
USB Type-B, USB Type-C |
| Number of USB Type-B upstream ports quantity |
1 |
| Number of USB Type-C upstream ports quantity |
1 |
| USB Type-A downstream ports quantity |
4 |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
70 W |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| HDCP |
Yes |
| HDCP version |
2.3 |
| Ergonomics |
| VESA mounting |
Yes |
| Height adjustment |
15.5 cm |
| Pivot |
Yes |
| Pivot angle |
0 - 90° |
| Swivelling |
Yes |
| Swivel angle range |
0 - 344° |
| Tilt adjustment |
Yes |
| Tilt angle range |
-5 - 35° |
| On Screen Display (OSD) |
Yes |
| Other features |
| Compatible operating systems |
Windows, macOS (Intel based) |
| Hardware calibration |
Yes |
| Compliance certificates |
CB, CCC, CE, China Compulsory Certification (CCC), Federal Communications Commission (FCC), PSE, RoHS, cTUVus, UKCA, WEEE |
| Design |
| Market positioning |
Graphics design |
| Product colour |
Black |
| Feet colour |
Black |
| Performance |
| NVIDIA G-SYNC |
No |
| AMD FreeSync |
No |
| Flicker-free technology |
Yes |
| Multimedia |
| Built-in speaker(s) |
No |
| Built-in camera |
No |
| Packaging content |
| Cables included |
AC, HDMI, USB Type-C to USB Type-C |
| Quick start guide |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
Features

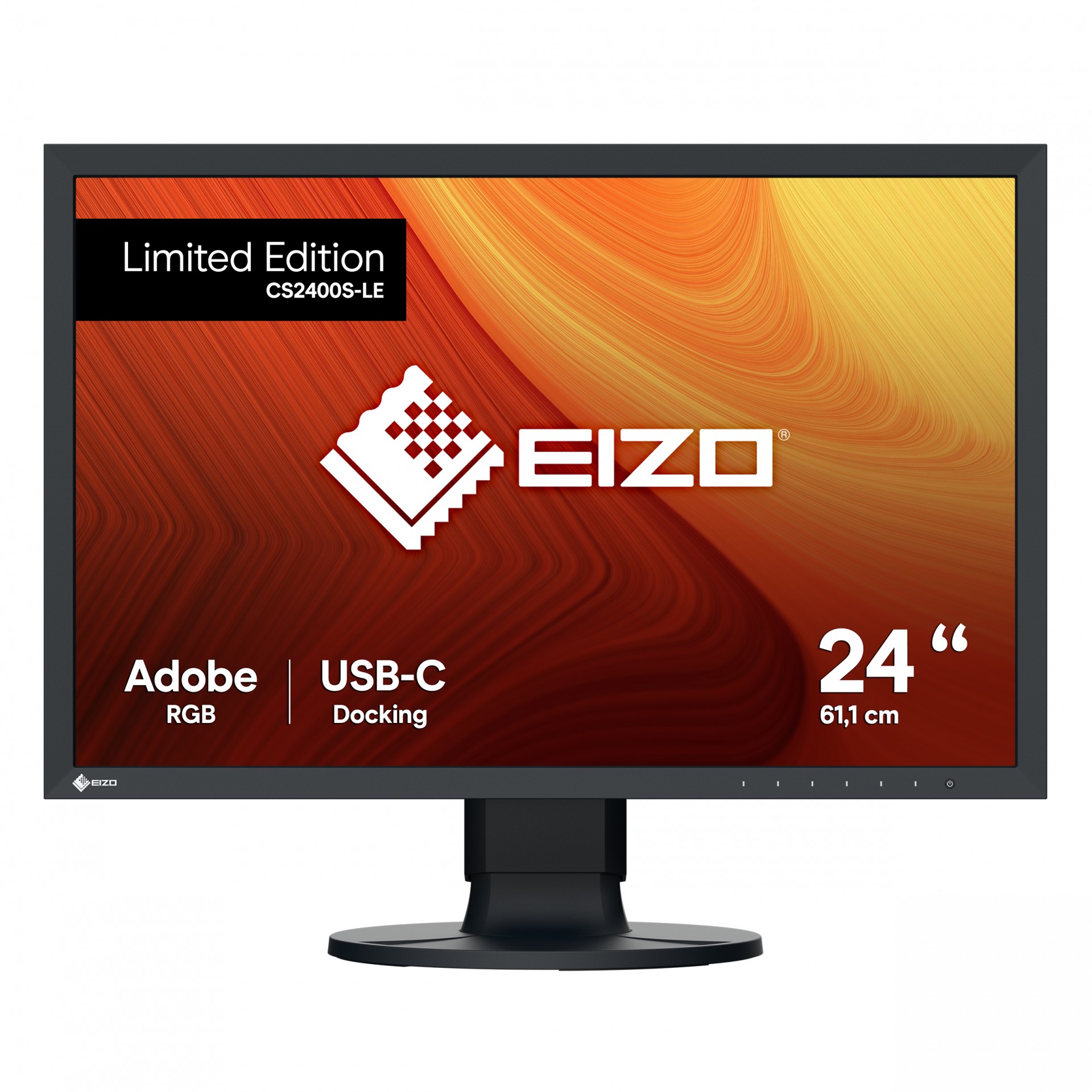

EIZO ColorEdge CS2400S-LE. Display diagonal: 61.2 cm (24.1"), Display resolution: 1920 x 1200 pixels, HD type: WUXGA, Display technology: LED, Response time: 19 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub. VESA mounting, Height adjustment. Product colour: Black
Product Description
The ColorEdge CS2400S is the perfect entry into the world of maximum precision: the panel offers extremely wide coverage of the relevant colour spaces (e.g. 99 % AdobeRGB). The Digital Uniformity Equalizer (DUE) ensures homogeneous image representation and the 16-bit look-up table guarantees absolutely precise colour representation with up to 10 bits. On the one hand, the exact factory calibration guarantees the highest precision "out of the box". On the other hand, the regularly recommended recalibration is done in no time at all. This means that photographers, filmmakers or image editors can always rely on their monitor to show them an absolutely precise view of their image file. The docking functions via USB-C allow the image signal to be transferred and the monitor’s USB hub to be powered with just one cable. In addition, a mobile device can be supplied with up to 70 watts of charging current. In this way, the CS2400S becomes the central dock of the creative workflow with a flick of the wrist. Alternatively, the monitor can of course also be operated via HDMI or DisplayPort as well as USB-B upstream. The CS2400S-LE is fully compatible with all Windows PCs and Intel Macs. Apple M1/2 devices may currently be incompatible due to a special feature of the image signal.
