Stock Status: 1x unit in stock

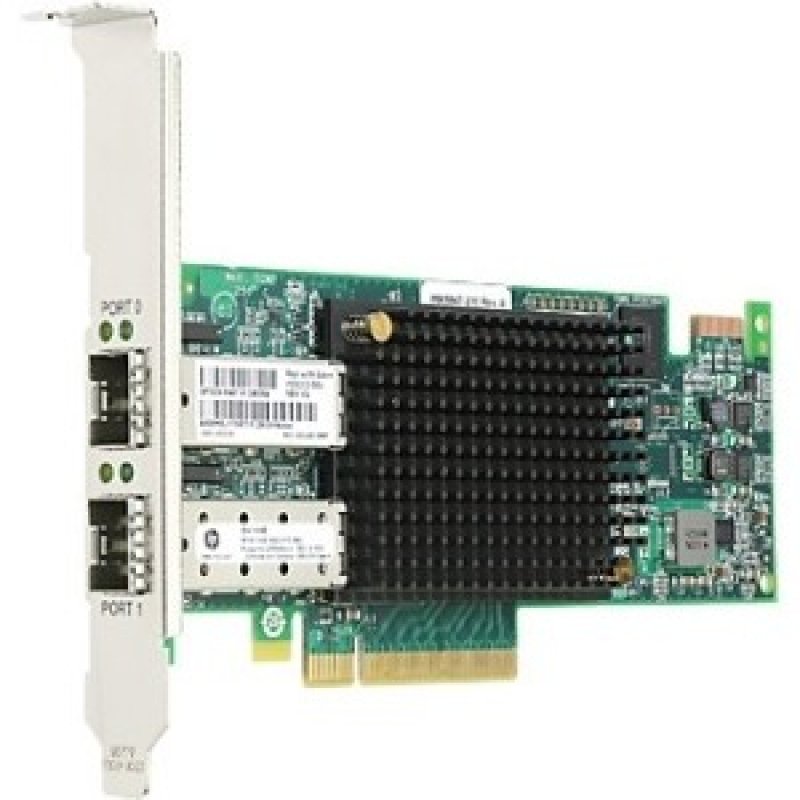

The Emulex 16 Gb (Generation 6) Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution for all Lenovo System x servers requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications. They are designed to meet the needs of modern networked storage systems that utilize high performance and low latency solid state storage drives for caching and persistent storage as well as hard disk drive arrays.
The Emulex 16 Gb Gen 6 FC HBAs feature ExpressLane™, which prioritizes mission-critical traffic in congested networks ensuring maximum application performance on flash storage arrays. They also seamlessly support Brocade ClearLink™ diagnostics through Emulex OneCommand® Manager, ensuring the reliability and management of storage network when connected to Brocade Gen 5 FC SAN fabrics.
Specs
| Networking |
| Maximum data transfer rate |
16000 Mbit/s |
| Full duplex |
Yes |
| Web-based management |
Yes |
| Maximum operating distance |
150 m |
| System requirements |
| Linux operating systems supported |
RedHat EL Linux 6.0, RedHat EL Linux 7.0, SuSE Linux 11, SuSE Linux 12.0 |
| Other operating systems supported |
VMware vSphere ESXi |
| Server operating systems supported |
Windows Server 2012, Windows Server 2012 R2 |
| Weight & dimensions |
| Depth |
168 mm |
| Height |
69 mm |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
PCIe |
| Interface |
Fiber |
| Fiber ports quantity |
2 |
| Fiber optic connector |
FC, SFP+ |
| PCI version |
3.0 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Other features |
| PCI-SIG* SR-IOV Capable |
Yes |
| Design |
| Internal |
Yes |
| Component for |
Server |
| Product colour |
Black, Green, Silver |
| Rack mounting |
Yes |
| Rack capacity |
2U |
| Hot-swap |
Yes |
| Hot-Plug support |
Yes |
| LED indicators |
Yes |
| Mean time between failures (MTBF) |
10000000 h |
| Certification |
AS/NZS CISPR22:2009+A1, Class A
Australian EMC Framework (RCM)
cUR recognized to CSA 22.2, No. 60950-1-07
EN55022:2010, Class A
EN55024:2010
EN55032:2012
EU (CE Mark)
FCC Rules, Part 15, Class A
Industry Canada, ICES-003, Class A
Japan VCCI, Class A
Korea |
| Compatible products |
System x3500 M5 Type 5464
System x3550 M5 Type 5463
System x3550 M5 Type 8869
System x3650 M5 Type 5462
System x3650 M5 Type 8871
System x3750 M4 Type 8753
System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)
System x3950 X6 Type 6241 (E7 v2, E7 v3, and E7 |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Packaging data |
| Low-profile bracket |
Yes |
| Quantity per pack |
1 pc(s) |
| Package type |
Box |
| Technical details |
| Compliance certificates |
RoHS |
| Packaging content |
| Mounting brackets included |
Yes |
Features
Lenovo 01CV840. Internal. Connectivity technology: Wired, Host interface: PCIe, Interface: Fiber. Maximum data transfer rate: 16000 Mbit/s. Product colour: Black, Green, Silver
Product Description
The Emulex 16 Gb (Generation 6) Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution for all Lenovo System x servers requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications. They are designed to meet the needs of modern networked storage systems that utilize high performance and low latency solid state storage drives for caching and persistent storage as well as hard disk drive arrays.
The Emulex 16 Gb Gen 6 FC HBAs feature ExpressLane™, which prioritizes mission-critical traffic in congested networks ensuring maximum application performance on flash storage arrays. They also seamlessly support Brocade ClearLink™ diagnostics through Emulex OneCommand® Manager, ensuring the reliability and management of storage network when connected to Brocade Gen 5 FC SAN fabrics.
