Stock Status: 1x unit in stock

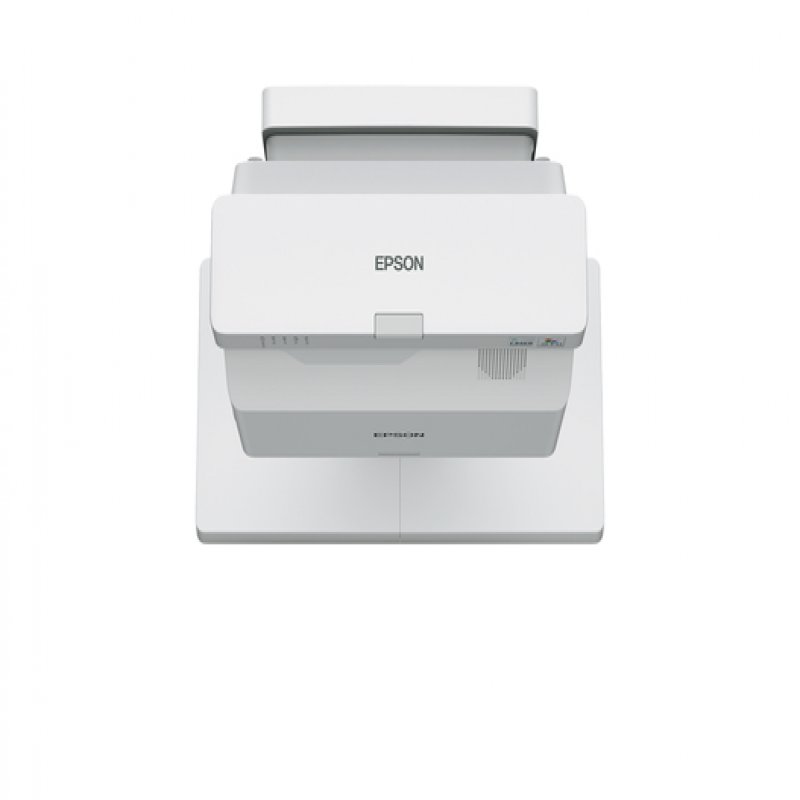

Agile UST laser display
Project your vision, with an affordable, large screen display up to 150" that will enhance engagement, learning and productivity.
Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.
The EB-760W's bright image, scalable up to 150", is clearly visible from any angle and from a distance, and content can be easiliy shared or streamed directly from multiple devices for the perfect collaborative experience.
The EB-760W's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.
Versatile wired and wireless connectivity options, including screen mirroring via Miracast, allow participants to effortlessly share content from their PCs or mobile devices. With a connected optional Epson visualiser, documents, presentations or 3D objects can be viewed with incredible detail.
With 4,100 lumens Colour Light Output and Epson 3LCD technology, the display is bright and vibrant up-to 150", clearly visible from all angles and from a distance. The experience is immersive and user-friendly.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygienic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off.
Projection also enables flexible display sizes, scalable from 49-150", display sizes can be optimised for each room with one familiar product and at a fixed cost.
Specs
| Weight & dimensions |
| Weight |
5.9 kg |
| Width |
356 mm |
| Depth |
395 mm |
| Height |
133 mm |
| Operational conditions |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Projector |
| Projector brightness |
4100 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
1080p (1920x1080) |
| Contrast ratio (typical) |
2500000:1 |
| Native aspect ratio |
16:10 |
| Screen size compatibility |
1524 - 3810 mm (60 - 150") |
| Supported aspect ratios |
16:10 |
| Number of colours |
1.07 billion colours |
| Projector brightness (economic mode) |
2800 ANSI lumens |
| Vertical scan range |
100 - 120 Hz |
| Keystone correction, horizontal |
-3 - 3° |
| Keystone correction, vertical |
-3 - 3° |
| Heat dissipation |
895 BTU/h |
| Video |
| Full HD |
Yes |
| 3D |
No |
| Video colour modes |
Blackboard, Cinema, Dynamic, Presentation, sRGB |
| Display |
| Built-in display |
No |
| Lens system |
| Focus |
Manual |
| Fixed focal length |
3.7 mm |
| F-number (relative aperture) |
1.6 |
| Zoom capability |
Yes |
| Zoom ratio |
1.35:1 |
| Throw ratio |
0.27 - 0.37:1 |
| Power |
| Power source |
AC |
| Power consumption (typical) |
197 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (max) |
263 W |
| Power consumption (PowerSave) |
199 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
2 |
| HDMI ports quantity |
3 |
| Composite video in |
1 |
| Component video (YPbPr/YCbCr) in |
0 |
| DVI port |
No |
| Audio (L/R) in |
3 |
| Serial interface type |
RS-232C |
| USB 2.0 ports quantity |
3 |
| USB 2.0 Type-A ports quantity |
2 |
| USB 2.0 Type-B ports quantity |
1 |
| Audio (L/R) out |
1 |
| Microphone in |
Yes |
| Consumer Electronics Control (CEC) support |
Yes |
| Audio Return Channel (ARC) |
Yes |
| Networking |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast |
Yes |
| Storage |
| Card reader integrated |
No |
| Packaging content |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Cables included |
AC |
| Manual |
Yes |
| Design |
| Product type |
Ultra short throw projector |
| Market positioning |
Presentation |
| Product colour |
White |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Multimedia |
| Built-in speaker(s) |
Yes |
| RMS rated power |
16 W |
| Technical details |
| Warranty period |
5 year(s) |
| Features |
| Noise level |
37 dB |
| Noise level (economic mode) |
27 dB |
| On Screen Display (OSD) |
Yes |
| Screen mirroring |
Yes |
| Light source |
| Light source type |
Laser/LED hybrid |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
| Supplier features |
| Recommended gender |
Any gender |
Features
Epson EB-760W. Projector brightness: 4100 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Laser/LED hybrid, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Fixed focal length: 3.7 mm, Zoom ratio: 1.35:1. Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB. Serial interface type: RS-232C
Product Description
Agile UST laser display
Project your vision, with an affordable, large screen display up to 150" that will enhance engagement, learning and productivity.
Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.
The EB-760W's bright image, scalable up to 150", is clearly visible from any angle and from a distance, and content can be easiliy shared or streamed directly from multiple devices for the perfect collaborative experience.
The EB-760W's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.
Versatile wired and wireless connectivity options, including screen mirroring via Miracast, allow participants to effortlessly share content from their PCs or mobile devices. With a connected optional Epson visualiser, documents, presentations or 3D objects can be viewed with incredible detail.
With 4,100 lumens Colour Light Output and Epson 3LCD technology, the display is bright and vibrant up-to 150", clearly visible from all angles and from a distance. The experience is immersive and user-friendly.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygienic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off.
Projection also enables flexible display sizes, scalable from 49-150", display sizes can be optimised for each room with one familiar product and at a fixed cost.
