| Weight & dimensions |
| Weight |
9.4 kg |
| Width |
458 mm |
| Depth |
375 mm |
| Height |
210 mm |
| Package width |
535 mm |
| Package depth |
595 mm |
| Package height |
350 mm |
| Package weight |
13.2 kg |
| Operational conditions |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Projector |
| Projector brightness |
5000 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
1080p (1920x1080) |
| Contrast ratio (typical) |
2500000:1 |
| Native aspect ratio |
16:9 |
| Screen size compatibility |
1651 - 3302 mm (65 - 130") |
| Projection distance (wide) |
0 - 0.4 m |
| Projection distance (tele) |
0 - 0.8 m |
| Number of colours |
1.07 billion colours |
| Projector brightness (economic mode) |
3500 ANSI lumens |
| Vertical scan range |
192 - 240 Hz |
| Keystone correction, horizontal |
-3 - 3° |
| Keystone correction, vertical |
-3 - 3° |
| Matrix size |
1.57 cm (0.62") |
| White light output |
5000 ANSI lumens |
| Colour light output |
5000 ANSI lumens |
| Heat dissipation |
1244 BTU/h |
| Video |
| Full HD |
Yes |
| Video processing |
10 bit |
| Video colour modes |
Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection |
| Lens system |
| Focus |
Manual |
| Fixed focal length |
3.9 mm |
| Zoom type |
Auto |
| Zoom ratio |
1.35:1 |
| Throw ratio |
0.27 - 0.37:1 |
| Power |
| Power source |
AC |
| Power consumption (typical) |
366 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (economy mode) |
262 W |
| AC input voltage |
220-240 V |
| AC input frequency |
50 - 60 Hz |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
2 |
| HDMI ports quantity |
4 |
| USB 2.0 ports quantity |
2 |
| Audio (L/R) in |
3 |
| Serial interface type |
RS-232C |
| HDMI connector type |
Full-size |
| USB 2.0 Type-B ports quantity |
1 |
| Audio (L/R) out |
1 |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Packaging content |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Cables included |
AC |
| Warranty card |
Yes |
| WLAN adapter included |
Yes |
| Bundled software |
Inhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management |
| Other features |
| Supported network protocols |
HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Design |
| Product type |

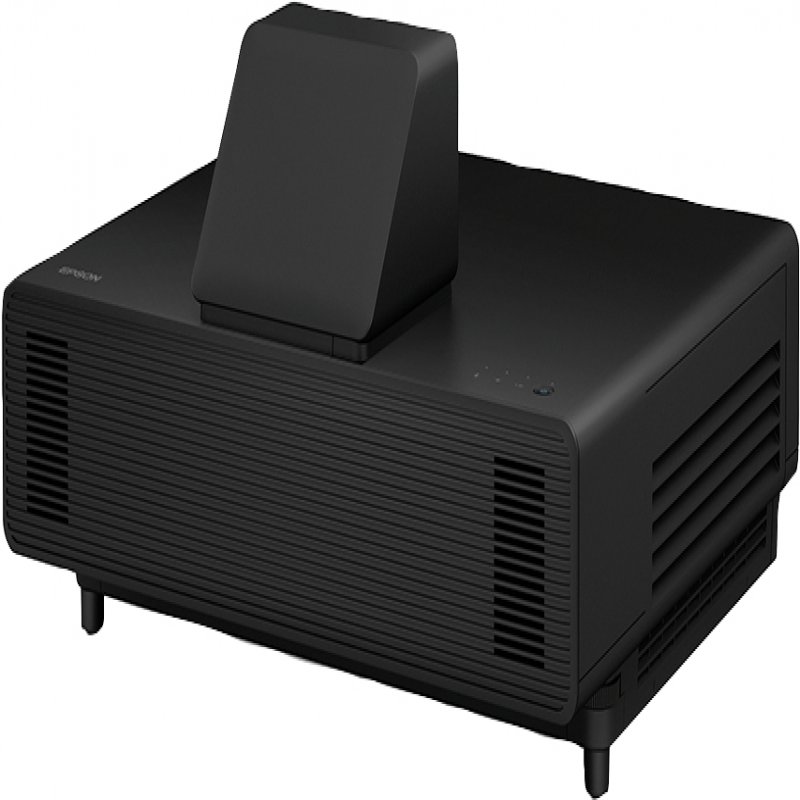

Ultra short throw projector |
| Product colour |
Black |
| Placement |
Ceiling, Desktop, Wall |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Multimedia |
| Built-in speaker(s) |
Yes |
| RMS rated power |
8 W |
| Technical details |
| Sustainability certificates |
TCO |
| Software |
| Software support |
via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| Features |
| Noise level |
36 dB |
| Noise level (economic mode) |
27 dB |
| Country of origin |
China |
| Password protection |
Yes |
| Light source |
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
| Logistics data |
| Quantity per pack |
1 pc(s) |
| Products per pallet |
12 pc(s) |
| Products per pallet (UK) |
12 pc(s) |
| Harmonized System (HS) code |
85286200 |
