Stock Status: 1x unit in stock

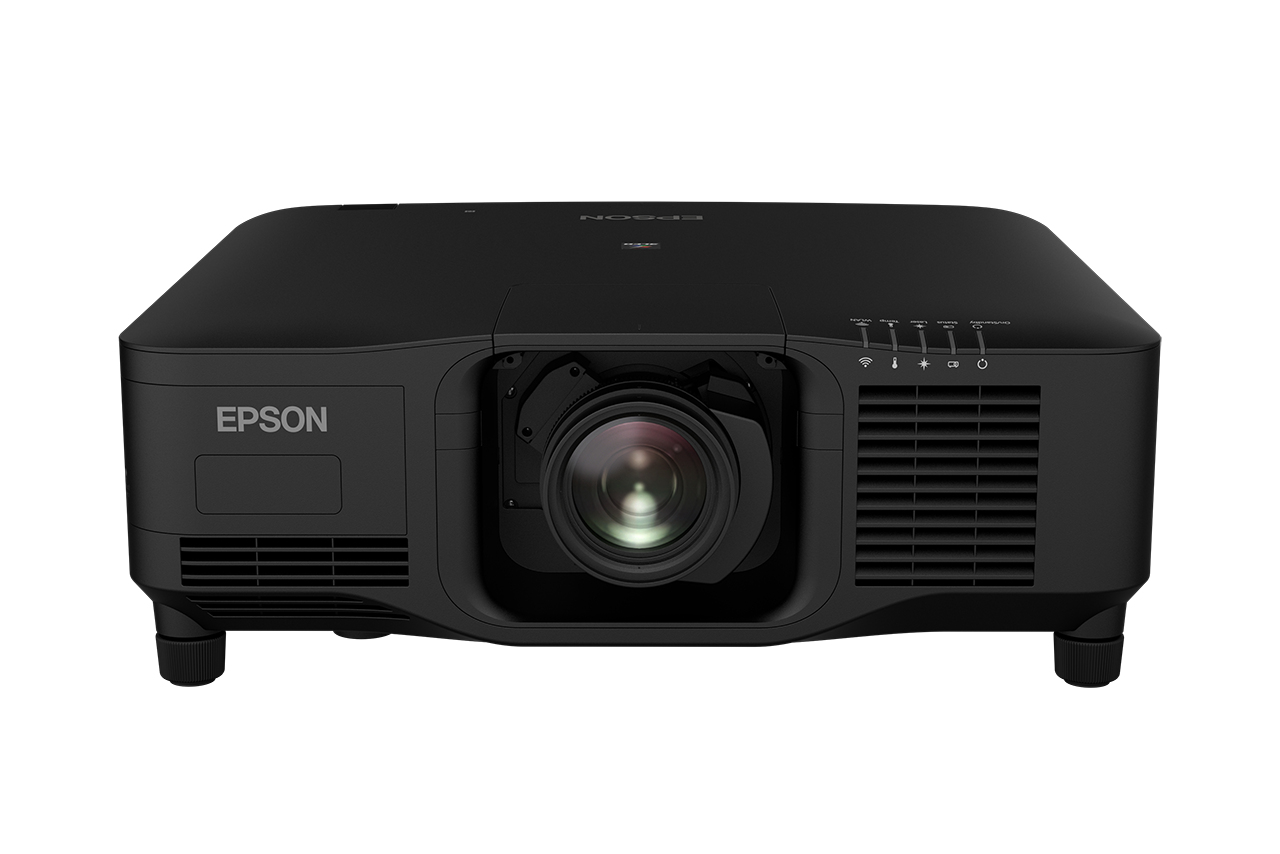

The world's smallest and lightest 20,000lm 4K projector
Building on the success of the EB-PU Series, the EB-PQ2220B is not only the smallest and lightest in its class, but is highly affordable, versatile, extremely energy-efficient and packed with advanced features.
A revolutionary 4K experience
Marvel at the clarity of the images produced by Epson’s latest 4K technology. Combining its patented, state of the art 4K Crystal Motion, panel thermo-control and double micro-lens array technologies, Epson achieves a new benchmark in 4K image quality.
Fantastically flexible
Featuring a wide range of connectivity, including 12G SDI in/out and HDMI in/out supporting 120Hz 4K. This high brightness projector also benefits from cross-platform lens compatibility, using the same 4K lenses as the existing EB-PU Series, including the ELPLX02S zero-offset ultra-short throw lens which is perfect for immersive spaces. This projector is supplied 'body-only', allowing you to build the perfect solution for your installation.
Reliable
Built for exceptional reliability, the EB-PQ2220B features IP5X rated dust resistance² and up to 20,000 hours maintenance-free operation, or even longer in extended modes.
Extensive software
Compatible with the ELPEC01 camera, Epson Projector Professional Tool and Epson Projector Config Tool for a wealth of calibration, assistance and control functionality.
Specs
| Weight & dimensions |
| Weight |
29.2 kg |
| Width |
586 mm |
| Depth |
492 mm |
| Height |
218 mm |
| Operational conditions |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Projector |
| Projector brightness |
20000 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
UHD 4K (3840x2160) |
| Contrast ratio (typical) |
5000000:1 |
| Native aspect ratio |
16:9 |
| Smart projector |
No |
| Supported aspect ratios |
16:9, 21:9 |
| Number of colours |
1.07 billion colours |
| Projector brightness (economic mode) |
14000 ANSI lumens |
| Keystone correction, horizontal |
-30 - 30° |
| Keystone correction, vertical |
-45 - 45° |
| Matrix size |
2.64 cm (1.04") |
| White light output |
20000 ANSI lumens |
| Colour light output |
20000 ANSI lumens |
| Heat dissipation |
4865 BTU/h |
| Video |
| Analog signal format system |
Not supported |
| Full HD |
Yes |
| 3D |
No |
| Video colour modes |
Cinema, Dynamic, Natural, Presentation |
| Display |
| Built-in display |
No |
| Colour depth |
10 bit |
| Lens system |
| Zoom capability |
Yes |
| Throw ratio |
0.34 - 7.16:1 |
| Power |
| Power source |
AC |
| Power consumption (typical) |
1431 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (economy mode) |
975 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Ports & interfaces |
| HDMI ports quantity |
3 |
| DVI port |
No |
| USB 2.0 ports quantity |
2 |
| Serial interface type |
RS-232C |
| HDBaseT port |
Yes |
| Service port type |
USB Type-B |
| USB 2.0 Type-A ports quantity |
2 |
| USB 2.0 Type-B ports quantity |
1 |
| AC (power) in |
Yes |
| Networking |
| Smart TV |
No |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Storage |
| Card reader integrated |
No |
| Packaging content |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Design |
| Market positioning |
Presentation |
| Product colour |
Black |
| Placement |
Ceiling, Desktop, Floor, Flying frame, Wall |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Features |
| Noise level |
48 dB |
| Interactive |
No |
| Noise level (economic mode) |
39 dB |
| On Screen Display (OSD) |
Yes |
| High Dynamic Range (HDR) supported |
Yes |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| International Protection (IP) code |
IPX5 |
| Password protection |
Yes |
| Light source |
| Light source type |
Laser |
| Service life of light source |
20000 h |
| Service life of light source (economic mode) |
30000 h |
Features
Epson EB-PQ2220B. Projector brightness: 20000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: UHD 4K (3840x2160). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Throw ratio: 0.34 - 7.16:1. Video colour modes: Cinema, Dynamic, Natural, Presentation. Serial interface type: RS-232C, Service port type: USB Type-B
Product Description
The world's smallest and lightest 20,000lm 4K projector
Building on the success of the EB-PU Series, the EB-PQ2220B is not only the smallest and lightest in its class, but is highly affordable, versatile, extremely energy-efficient and packed with advanced features.
A revolutionary 4K experience
Marvel at the clarity of the images produced by Epson’s latest 4K technology. Combining its patented, state of the art 4K Crystal Motion, panel thermo-control and double micro-lens array technologies, Epson achieves a new benchmark in 4K image quality.
Fantastically flexible
Featuring a wide range of connectivity, including 12G SDI in/out and HDMI in/out supporting 120Hz 4K. This high brightness projector also benefits from cross-platform lens compatibility, using the same 4K lenses as the existing EB-PU Series, including the ELPLX02S zero-offset ultra-short throw lens which is perfect for immersive spaces. This projector is supplied 'body-only', allowing you to build the perfect solution for your installation.
Reliable
Built for exceptional reliability, the EB-PQ2220B features IP5X rated dust resistance² and up to 20,000 hours maintenance-free operation, or even longer in extended modes.
Extensive software
Compatible with the ELPEC01 camera, Epson Projector Professional Tool and Epson Projector Config Tool for a wealth of calibration, assistance and control functionality.
