Stock Status: 1x unit in stock
Affordable

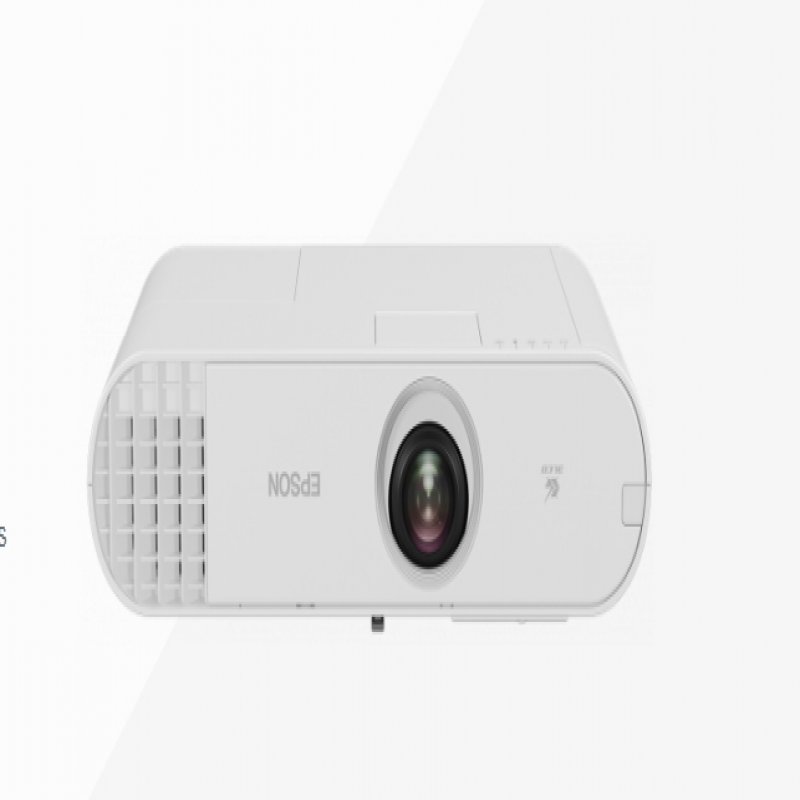

The most affordable device in Epson’s signage projector range. It's lamp-based (not laser) and boasts a low total cost of ownership (TCO). The lamps and filters have a longer life than other lamp-based projectors, with a lamp life of 10,000 hours in normal mode and 17,000 hours in Eco Mode. The filter has a 10,000-hour maintenance cycle.1
Image quality
3LCD technology ensures the projection of bright and vivid imagery.
Easy to install and use
Low TCO runs through every element of the EB-U50… starting with the simplicity and flexibility of installation. It can be easily installed and attached to a lighting track, ceiling mounted or used in a floor-standing position.2 The EB-U50 also rotates 360 degrees horizontally and 30 degrees vertically.
Unobtrusive design
The EB-U50 is space-friendly, understated, clean, white, edge-free, and blends beautifully into most environments.
Flexibility
Epson Projector Content Manager Software allows quick, easy set-up without specialist installation. Playback is PC-free (with built-in Wi-Fi), via a USB drive and can be changed using the remote control. The EB-U50 also includes multi-projection features to allow edge blending, display scaled images, adjust multiple projected images, and synchronise playback.
Specs
| Weight & dimensions |
| Weight |
3.1 kg |
| Width |
364 mm |
| Depth |
87 mm |
| Height |
248 mm |
| Operational conditions |
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Projector |
| Projector brightness |
3700 ANSI lumens |
| Projection technology |
3LCD |
| Projector native resolution |
WUXGA (1920x1200) |
| Contrast ratio (typical) |
16000:1 |
| Native aspect ratio |
16:10 |
| Projection distance |
1.1 - 11 m |
| Projection distance (wide) |
0.9 - 9 m |
| Projector brightness (economic mode) |
2400 ANSI lumens |
| Video |
| Full HD |
Yes |
| Lens system |
| Focal length range |
20.42 - 24.5 mm |
| Power |
| Power source |
AC |
| Power consumption (typical) |
285 W |
| Power consumption (standby) |
0.3 W |
| Power consumption (economy mode) |
218 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
2 |
| HDMI ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Audio (L/R) in |
2 |
| Serial interface type |
RS-232C |
| USB 2.0 Type-B ports quantity |
1 |
| Audio (L/R) out |
1 |
| Design |
| Product type |
Standard throw projector |
| Market positioning |
Portable |
| Product colour |
White |
| Features |
| Noise level |
37 dB |
| Noise level (economic mode) |
28 dB |
| Light source |
| Light source type |
Lamp |
| Service life of light source |
10000 h |
| Service life of light source (economic mode) |
17000 h |
| Lamp type |
UHE |
| Lamp power |
200 W |
| Logistics data |
| Harmonized System (HS) code |
85286200 |
Features
Epson EB-U50. Projector brightness: 3700 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Lamp, Service life of light source: 10000 h, Service life of light source (economic mode): 17000 h. Focal length range: 20.42 - 24.5 mm. Serial interface type: RS-232C. Noise level: 37 dB, Noise level (economic mode): 28 dB
Product Description
Affordable
The most affordable device in Epson’s signage projector range. It's lamp-based (not laser) and boasts a low total cost of ownership (TCO). The lamps and filters have a longer life than other lamp-based projectors, with a lamp life of 10,000 hours in normal mode and 17,000 hours in Eco Mode. The filter has a 10,000-hour maintenance cycle.1
Image quality
3LCD technology ensures the projection of bright and vivid imagery.
Easy to install and use
Low TCO runs through every element of the EB-U50… starting with the simplicity and flexibility of installation. It can be easily installed and attached to a lighting track, ceiling mounted or used in a floor-standing position.2 The EB-U50 also rotates 360 degrees horizontally and 30 degrees vertically.
Unobtrusive design
The EB-U50 is space-friendly, understated, clean, white, edge-free, and blends beautifully into most environments.
Flexibility
Epson Projector Content Manager Software allows quick, easy set-up without specialist installation. Playback is PC-free (with built-in Wi-Fi), via a USB drive and can be changed using the remote control. The EB-U50 also includes multi-projection features to allow edge blending, display scaled images, adjust multiple projected images, and synchronise playback.
