Stock Status: 1x unit in stock

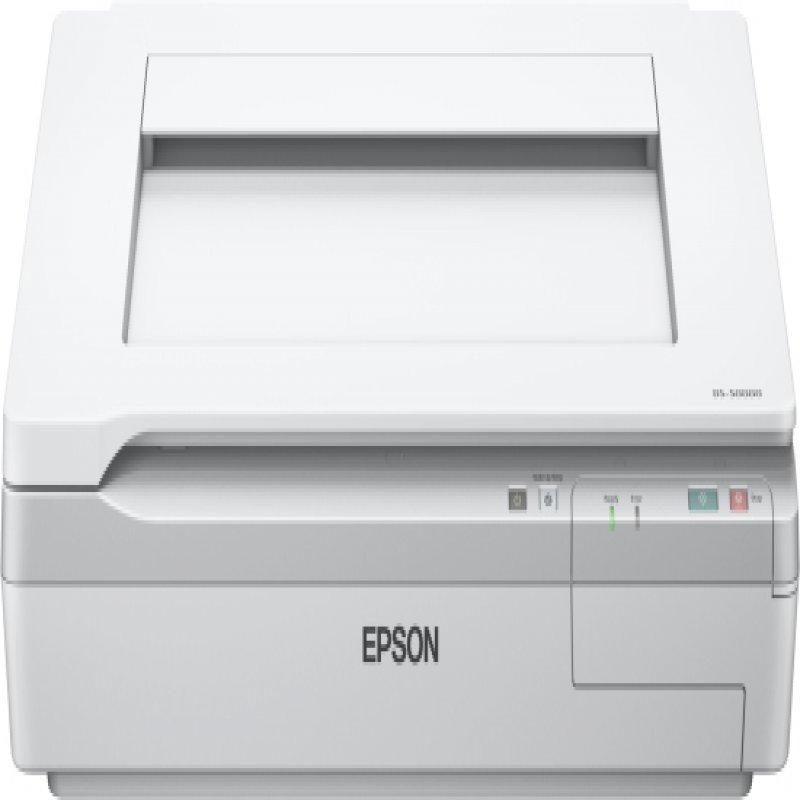

Epson WorkForce DS-50000
This A3 document scanner addresses the needs of vertical markets who require easy document capture and conversion thanks to its high-quality CCD technology and powerful imaging features by Epson Scan and Document Capture Pro.
This device is specially designed to accommodate documents individually, and is ideal for users with specific capture needs, such as scanning bound materials and thick or fragile documents. This scanner can be easily integrated into vertical applications thanks to TWAIN, ISIS and WIA support, as well as Document Capture Pro connectors.
High-quality scanning results are ensured by CCD technology and innovating imaging features, such as Book Spine Correction, and improved colour dropout/enhance powered by Epson Scan. In addition, Document Capture Pro makes it easy to treat scanned data before its conversion and distribution in virtually any document repository or document management system.
This scanner and its features can be shared between multiple users using the optional Network Interface Panel. Combined with Document Capture Pro solutions, the Network Interface Panel allows users to benefit from Push Scan features and customise ‘scan to’ job functions such as ‘scan to email’ or ‘scan to Microsoft SharePoint®’, among others*2. These features enable complicated tasks to be carried out effortlessly.
Epson ReadyScan LED technology eradicates warm-up time, guarantees an absence of mercury, and lowers power consumption. These elements, combined with ENERGY STAR qualification*1, creates an environmentally friendly device.
-A3 flatbed scanner: Scan documents up to A3 size
-Quality results: High quality CCD technology
-No warm-up time: ReadyScan LED for immediate scanning
-Network capable: Optional Network Interface Panel
-Eco-friendly: ENERGY STAR-qualified *1
Specs
| Weight & dimensions |
| Width |
640 mm |
| Depth |
468 mm |
| Height |
156 mm |
| Weight |
14.8 kg |
| Ports & interfaces |
| USB port |
Yes |
| USB version |
2.0 |
| Optional connectivity |
Ethernet |
| Standard interfaces |
USB 2.0 |
| System requirements |
| Windows operating systems supported |
Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Window |
| Mac operating systems supported |
Yes |
| Power |
| Power supply type |
AC |
| Power consumption (typical) |
25.5 W |
| Power consumption (off) |
1.5 W |
| Power consumption (PowerSave) |
9.5 W |
| AC input frequency |
50 - 60 Hz |
| Input voltage |
100-240 V |
| Scanning |
| Optical scanning resolution |
600 x 600 DPI |
| Duplex scanning |
Yes |
| Colour scanning |
Yes |
| Input colour depth |
48 bit |
| Output colour depth |
24 bit |
| Film scanning |
No |
| Greyscale levels |
256 |
| ADF scan speed (b/w, A4) |
15 ppm |
| ADF scan speed (colour, A4) |
15 ppm |
| Flatbed scan speed (b/w, A4) |
4 sec/page |
| Operational conditions |
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-25 - 60 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Storage relative humidity (H-H) |
10 - 85% |
| Paper handling |
| Maximum ISO A-series paper size |
A3 |
| Scanning media types supported |
Plain paper, Thick paper, Thin paper, Transparencies |
| ISO A-series sizes (A0...A9) |
A3, A4, A5, A6 |
| ISO B-series sizes (B0...B9) |
B5 |
| Letter |
Yes |
| Legal |
Yes |
| Design |
| Scanner type |
Flatbed scanner |
| Built-in display |
No |
| Product colour |
White |
| Display |
LCD |
| Packaging content |
| Drivers included |
Yes |
| Bundled software |
ABBYY FineReader® Sprint 8.0 (MacOS), ABBYY FineReader® Sprint 9.0 (Windows), Epson Document Capture Pro (Windows only), Epson Document Capture Pro Server (on free download), Epson Event Manager (Mac Only), Epson Scan |
| Performance |
| Sensor type |
CCD |
| Light source |
ReadyScan LED |
| Scan file formats |
JPG, PDF, TIFF |
| Scan drivers |
ISIS, TWAIN, WIA |
| Scanning noise level |
54.9 dB |
| Technical details |
| Sustainability certificates |
ENERGY STAR |
| Networking |
| Ethernet LAN |
Yes |
| Features |
| Country of origin |
China |
| Logistics data |
| Products per pallet |
5 pc(s) |
| Pallet gross length |
120 cm |
| Pallet gross width |
80 cm |
| Pallet gross height |
162.5 cm |
| Products per pallet layer |
1 pc(s) |
| Products per pallet layer (UK) |
1 pc(s) |
| Products per pallet (UK) |
5 pc(s) |
| Pallet length (UK) |
120 cm |
| Pallet width (UK) |
100 cm |
| Pallet height (UK) |
162.5 cm |
| Harmonized System (HS) code |
84716070 |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
635 mm |
| Package depth |
844 mm |
| Package height |
360 mm |
| Package weight |
18.5 kg |
Features
Epson WorkForce DS-50000. Optical scanning resolution: 600 x 600 DPI, Input colour depth: 48 bit, Output colour depth: 24 bit. Scanner type: Flatbed scanner, Product colour: White, Display: LCD. Sensor type: CCD, Light source: ReadyScan LED, Scan file formats: JPG, PDF, TIFF. Maximum ISO A-series paper size: A3, Scanning media types supported: Plain paper, Thick paper, Thin paper, Transparencies, ISO A-series sizes (A0...A9): A3, A4, A5, A6. Optional connectivity: Ethernet, Standard interfaces: USB 2.0
Product Description
Epson WorkForce DS-50000
This A3 document scanner addresses the needs of vertical markets who require easy document capture and conversion thanks to its high-quality CCD technology and powerful imaging features by Epson Scan and Document Capture Pro.
This device is specially designed to accommodate documents individually, and is ideal for users with specific capture needs, such as scanning bound materials and thick or fragile documents. This scanner can be easily integrated into vertical applications thanks to TWAIN, ISIS and WIA support, as well as Document Capture Pro connectors.
High-quality scanning results are ensured by CCD technology and innovating imaging features, such as Book Spine Correction, and improved colour dropout/enhance powered by Epson Scan. In addition, Document Capture Pro makes it easy to treat scanned data before its conversion and distribution in virtually any document repository or document management system.
This scanner and its features can be shared between multiple users using the optional Network Interface Panel. Combined with Document Capture Pro solutions, the Network Interface Panel allows users to benefit from Push Scan features and customise ‘scan to’ job functions such as ‘scan to email’ or ‘scan to Microsoft SharePoint®’, among others*2. These features enable complicated tasks to be carried out effortlessly.
Epson ReadyScan LED technology eradicates warm-up time, guarantees an absence of mercury, and lowers power consumption. These elements, combined with ENERGY STAR qualification*1, creates an environmentally friendly device.
-A3 flatbed scanner: Scan documents up to A3 size
-Quality results: High quality CCD technology
-No warm-up time: ReadyScan LED for immediate scanning
-Network capable: Optional Network Interface Panel
-Eco-friendly: ENERGY STAR-qualified *1
