Stock Status: 1x unit in stock

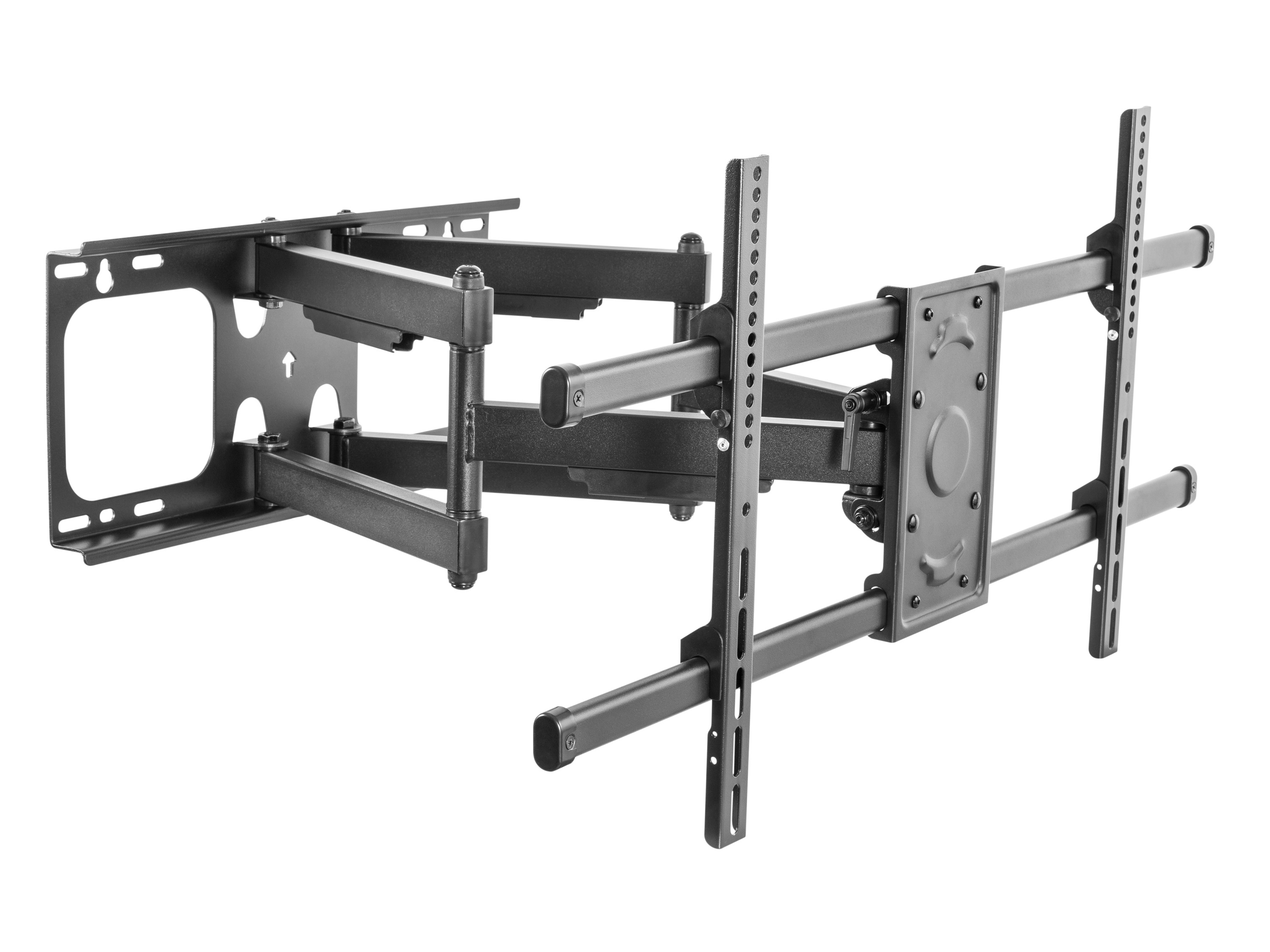

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.
Specs
| Weight & dimensions |
| Width |
885 mm |
| Depth |
635 mm |
| Height |
430 mm |
| Weight |
10.5 kg |
| Packaging data |
| Package width |
920 mm |
| Package depth |
288 mm |
| Package height |
73 mm |
| Package weight |
11.2 kg |
| Mounting |
| Number of displays supported |
1 |
| Maximum screen size |
2.29 m (90") |
| Mounting type |
Wall |
| Maximum weight capacity |
75 kg |
| Minimum VESA mount |
200 x 200 mm |
| Maximum VESA mount |
816 x 410 mm |
| Minimum screen size |
94 cm (37") |
| Panel mounting interface |
200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 400 |
| Ergonomics |
| Tilt angle range |
-15 - 5° |
| Swivel angle range |
-60 - 60° |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| Technical details |
| Country of origin |
China |
| Packaging content |
| Screws included |
Yes |
| Quick installation guide |
Yes |
| Logistics data |
| Master (outer) case width |
935 mm |
| Master (outer) case length |
305 mm |
| Master (outer) case height |
165 mm |
| Master (outer) case gross weight |
23.1 kg |
| Products per master (outer) case |
2 pc(s) |
| Harmonized System (HS) code |
85299097 |
Features
Equip 37"-90" Tilt/Swivel TV Wall Mount Bracket. Maximum weight capacity: 75 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 2.29 m (90"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 816 x 410 mm. Tilt angle range: -15 - 5°, Swivel angle range: -60 - 60°. Product colour: Black
Product Description
The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.
