| Weight & dimensions |
| Weight |
190 g |
| Width |
72 mm |
| Depth |
101 mm |
| Height |
175 mm |
| Operational conditions |
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Power |
| Power source type |
Battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery type |
Built-in battery |
| Number of batteries supported |
1 |
| Battery capacity |
1500 mAh |
| Battery voltage |
3.7 V |
| Battery life |
20 h |
| Input voltage |
5 V |
| Ports & interfaces |
| Connectivity technology |
Wireless |
| Standard interfaces |
RF Wireless |
| Operating frequency |
2400 MHz |
| Cable length |
1.8 m |
| Scanning |
| Type |

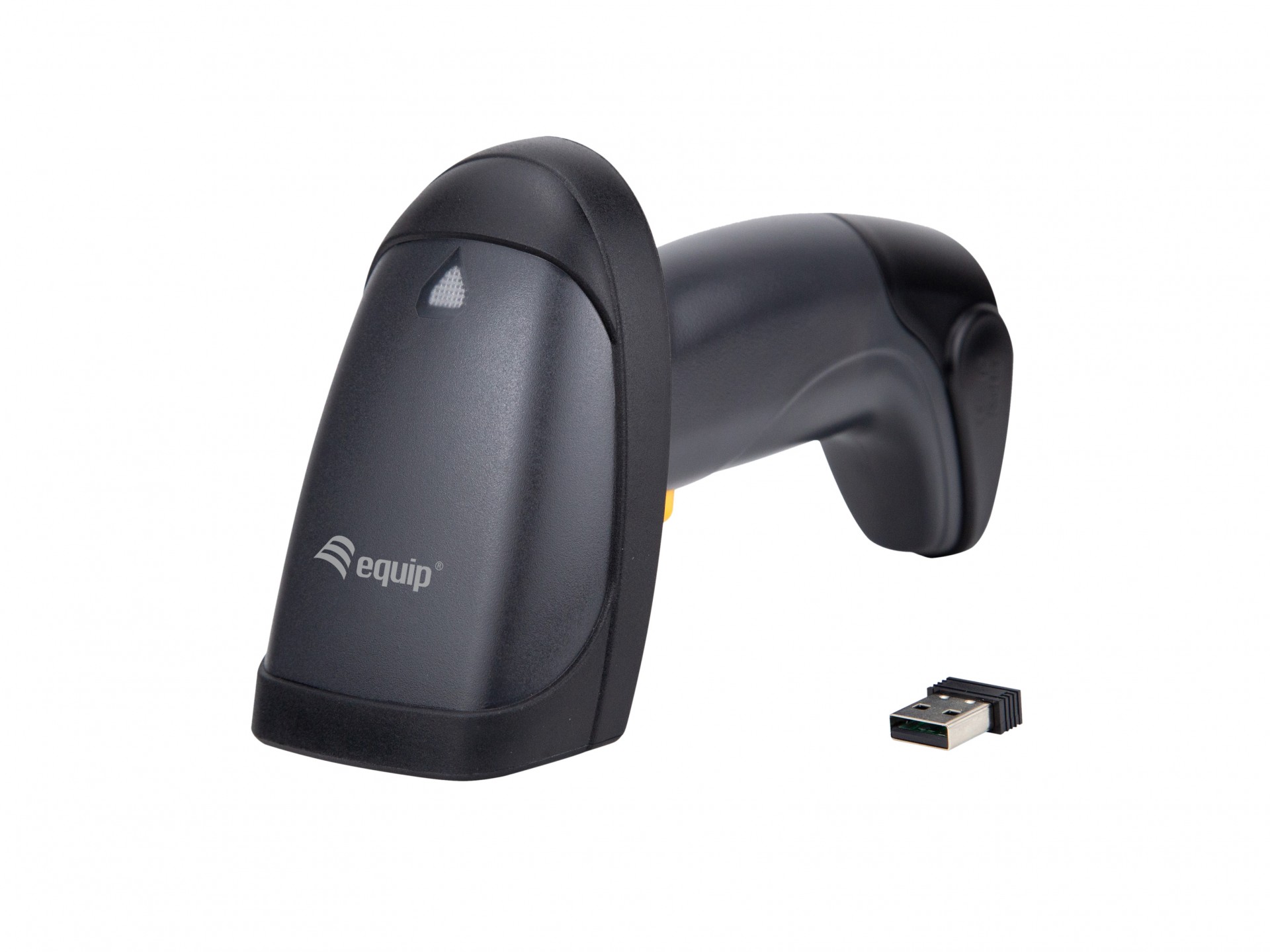

Handheld bar code reader |
| Scanner type |
1D |
| Sensor type |
LED |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, Interleaved 2 of 5, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported |
Not supported |
| Trigger mode |
Auto-induction, Continuous, Manual |
| Scanner resolution |
4 mm |
| Working distance |
70 cm |
| Read rate (max) |
200 reads/s |
| Wavelength |
650 nm |
| Maximum scan width |
30 cm |
| Depth of field range |
7.5 cm |
| Performance |
| Product colour |
Black |
| Housing material |
Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code |
IP54 |
| Protection features |
Drop proof, Water resistant |
| Country of origin |
China |
| Other features |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Mobile operating systems supported |
Android, iOS |
| Linux operating systems supported |
Yes |
| Quick start guide |
Yes |
| Logistics data |
| Products per master (outer) case |
30 pc(s) |
| Master (outer) case gross weight |
15.5 kg |
| Master (outer) case length |
485 mm |
| Master (outer) case width |
440 mm |
| Master (outer) case height |
525 mm |
| Harmonized System (HS) code |
8471900090 |
| Technical details |
| Compliance certificates |
CE, RoHS |
| Sustainability compliance |
Yes |
| Packaging data |
| Cables included |
USB |
| Charging base |
Yes |
| Receiver included |
Yes |
| Receiver type |
Nano receiver |
| Stand included |
Yes |
| Package width |
150 mm |
| Package depth |
207 mm |
| Package height |
100 mm |
| Package weight |
465 g |
| Battery |
| Battery capacity |
5.55 Wh |
