Stock Status: 1x unit in stock
Ernitec Electra-M10-Outdoor is a managed Outdoor Industrial Ethernet Switch with 8 x 10/100/1000Base-T PoE+ (max 2 ports supporting 90W PoE++) ports and 2 x 1000Base-X SFP ports.
The switch is designed inside an outdoor cabinet with IP66 protection level, which can be flexibly mounted on poles, walls and other racks near
surveillance cameras.
It is featured with full L2 features such as VLAN, QoS, Multicast, Port Mirroring, LLDP, security, Spanning Tree and ITU-T G.8032 ERPS ring protection, PoE
management and SNMP network management.

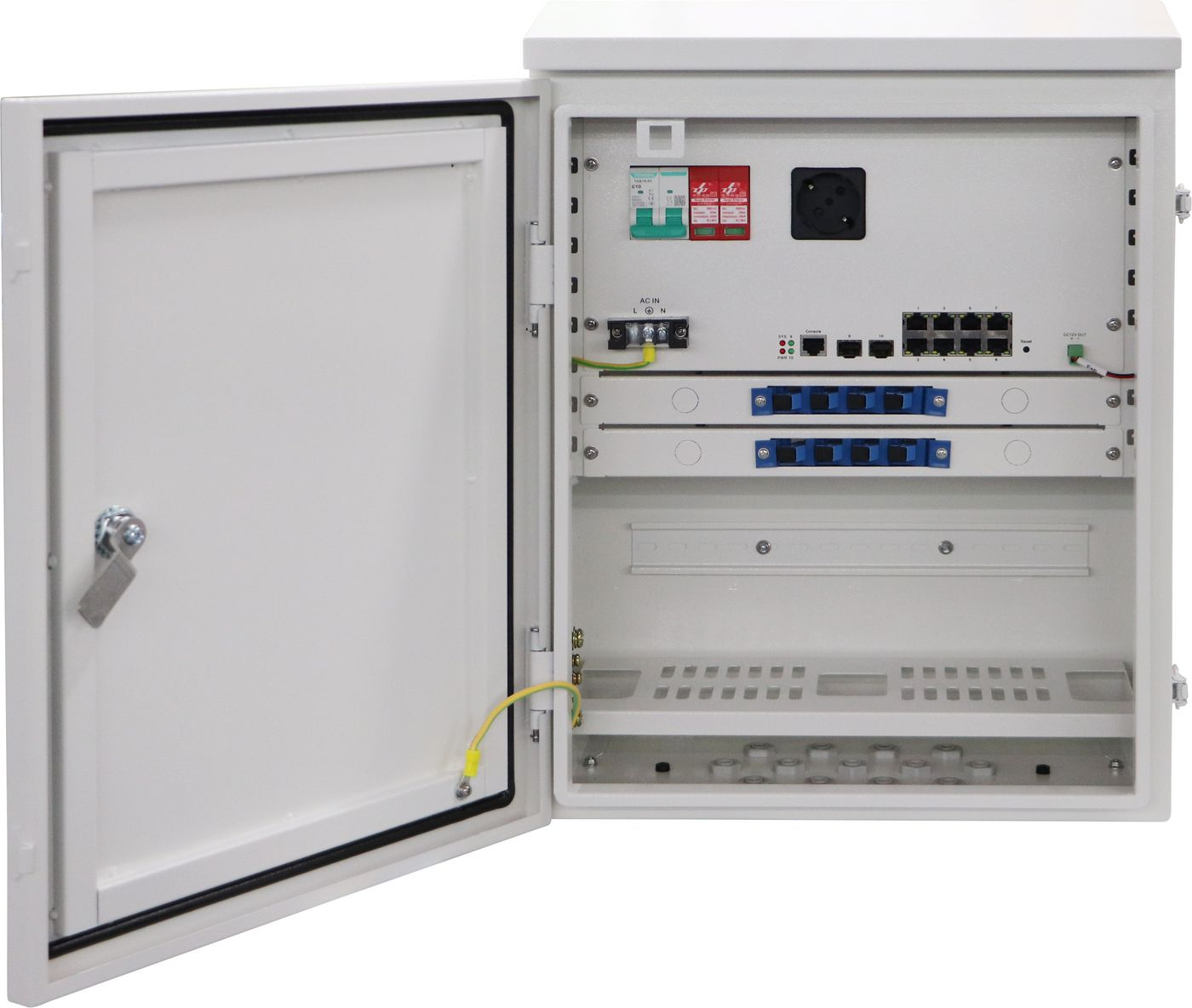

Electra-M10-Outdoor cabinet is integrated with a fiber tray, an air circuit breaker, a surge protector and a cooling fan to operate at extended temperature from -40°C to 70°C with anti-corrosion treatment. Din rail is also included in this model.
It is a powerful and easy-to-deploy solution for most industrial
environment, such as manufacturing, transportation, electricity, oil & gas, chemistry, video surveillance and other various industry automation networks.
2 x 1000Base-X SFP fiber interfaces, 8 x 10/100/1000BASE-T RJ45 PoE LAN interfaces and 1 x RJ45 console port
Standard ITU-T G.8032 ERPS ring protection, sub 20ms switchover time
Full L2 switching functions and network management.
802.3bt 90W on first 2 ports, 802.3af/at 30W PoE+ on all ports, total 285W budget IP66 protection level, pole and wall mounted.
6KV surge protection; ESD: 6KV/contact, 8KV/air protection
Operation temperature from -40 to +70°C
Product Description
Ernitec Electra-M10-Outdoor is a managed Outdoor Industrial Ethernet Switch with 8 x 10/100/1000Base-T PoE+ (max 2 ports supporting 90W PoE++) ports and 2 x 1000Base-X SFP ports.
The switch is designed inside an outdoor cabinet with IP66 protection level, which can be flexibly mounted on poles, walls and other racks near
surveillance cameras.
It is featured with full L2 features such as VLAN, QoS, Multicast, Port Mirroring, LLDP, security, Spanning Tree and ITU-T G.8032 ERPS ring protection, PoE
management and SNMP network management.
Electra-M10-Outdoor cabinet is integrated with a fiber tray, an air circuit breaker, a surge protector and a cooling fan to operate at extended temperature from -40°C to 70°C with anti-corrosion treatment. Din rail is also included in this model.
It is a powerful and easy-to-deploy solution for most industrial
environment, such as manufacturing, transportation, electricity, oil & gas, chemistry, video surveillance and other various industry automation networks.
2 x 1000Base-X SFP fiber interfaces, 8 x 10/100/1000BASE-T RJ45 PoE LAN interfaces and 1 x RJ45 console port
Standard ITU-T G.8032 ERPS ring protection, sub 20ms switchover time
Full L2 switching functions and network management.
802.3bt 90W on first 2 ports, 802.3af/at 30W PoE+ on all ports, total 285W budget IP66 protection level, pole and wall mounted.
6KV surge protection; ESD: 6KV/contact, 8KV/air protection
Operation temperature from -40 to +70°C
