Stock Status: 1x unit in stock

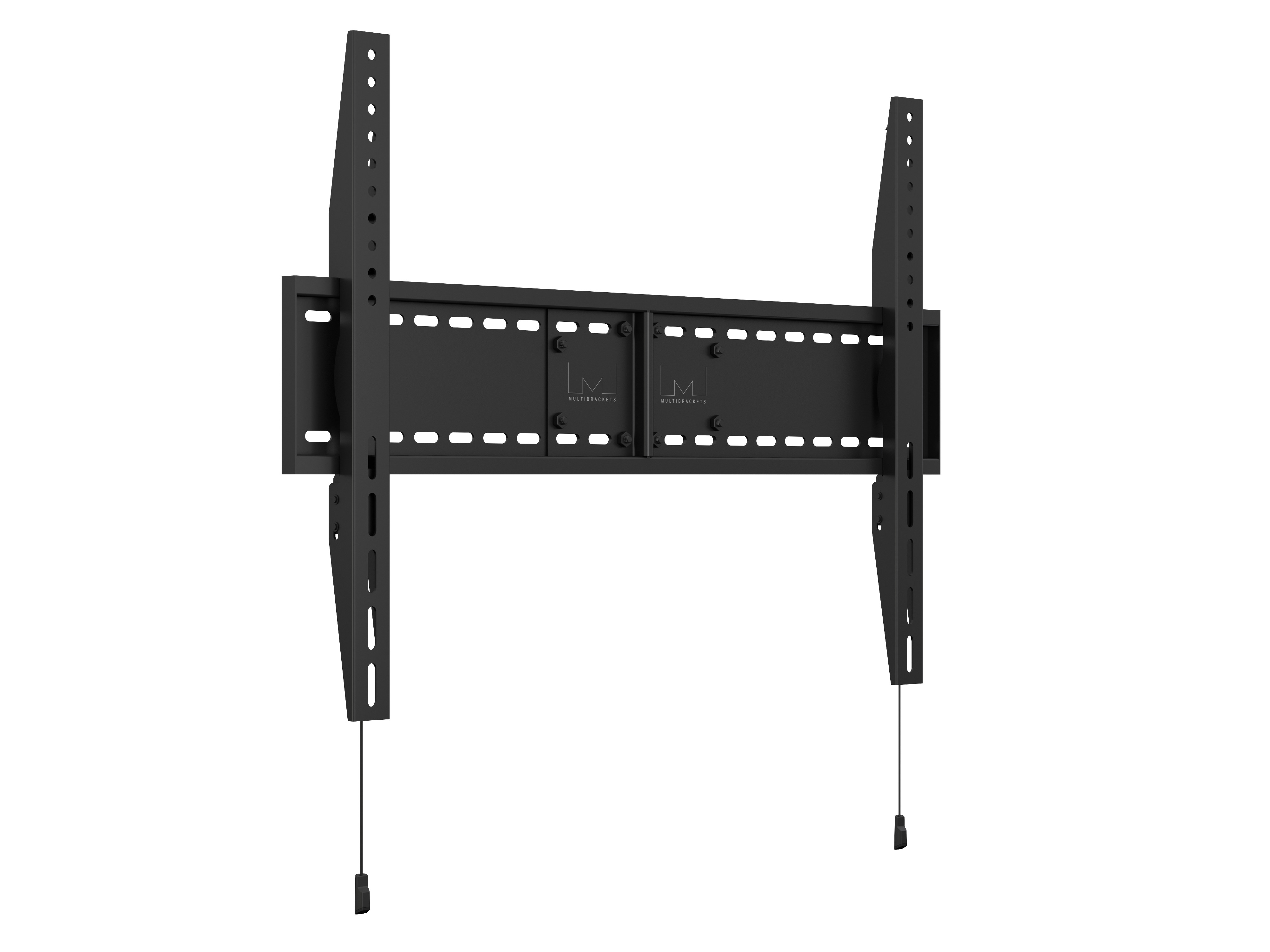

The Multibrackets M Universal Fixed SD is a versatile wall mount for large display installations. With its smart design the mount can be used for both landscape and portrait installations. With a maxweight capacity of 125kg it can handle screens up to 110". With a wide VESA range of 800x600 it can also handle most VESA specifications large screens are using.
The Multibrackets M Universal Mount SD series of fixed, tilt and pull-out mounts from Multibrackets are engineered to solve tough installation problems such as leveling and stud location. Installerinspired features make installation and maintenance safe and easy. This series of mounts makes it easy to take control of your installation. Universal and with low-profile mounts they are engineeredfor speed of installation and usability. With a variety of products ranging from a single TV to a video wall matrix for digital signage, Multibrackets SD mounts are the perfect solution for manyapplications.
Specs
| Weight & dimensions |
| Depth (min) |
3.9 cm |
| Height |
630 mm |
| Weight |
8.5 kg |
| Packaging data |
| Package width |
200 mm |
| Package depth |
670 mm |
| Package height |
100 mm |
| Package weight |
8 kg |
| Package type |
Box |
| Mounting |
| Maximum weight capacity |
125 kg |
| Maximum screen size compatibility |
2.79 m (110") |
| Maximum VESA mount |
800 x 600 mm |
| Minimum screen size compatibility |
152.4 cm (60") |
| Suitable for |
TV |
| Panel mounting interface |
200 x 300,200 x 400,200 x 600,400 x 400,400 x 600,600 x 200,600 x 400,600 x 600,600 x 300,800 x 300,800 x 400,800 x 500,800 x 600 |
| Number of displays supported |
1 |
| Maximum screen size |
2.79 m (110") |
| Mounting type |
Wall |
| Minimum VESA mount |
200 x 300 mm |
| Minimum screen size |
152.4 cm (60") |
| Ergonomics |
| Distance to the wall (min) |
3.9 cm |
| Design |
| Product colour |
Black |
| Housing material |
Steel |
| Anti-theft function |
Y |
| Accepts padlock |
Y |
| Technical details |
| Orientation |
Landscape/Portrait |
| Logistics data |
| Shipping (inner) case width |
50 cm |
| Shipping (inner) case length |
68 cm |
| Shipping (inner) case height |
23 cm |
| Shipping (inner) case weight |
39.4 kg |
| Quantity per shipping (inner) case |
5 pc(s) |
| Shipping (inner) case gross weight |
39.4 kg |
| Products per shipping (inner) case |
5 pc(s) |
Features
Multibrackets M Universal Fixed Wallmount SD MAX 800x600. Maximum weight capacity: 125 kg, Minimum screen size: 152.4 cm (60"), Maximum screen size: 2.79 m (110"), Minimum VESA mount: 200 x 300 mm, Maximum VESA mount: 800 x 600 mm. Distance to the wall (min): 3.9 cm. Product colour: Black
Product Description
The Multibrackets M Universal Fixed SD is a versatile wall mount for large display installations. With its smart design the mount can be used for both landscape and portrait installations. With a maxweight capacity of 125kg it can handle screens up to 110". With a wide VESA range of 800x600 it can also handle most VESA specifications large screens are using.
The Multibrackets M Universal Mount SD series of fixed, tilt and pull-out mounts from Multibrackets are engineered to solve tough installation problems such as leveling and stud location. Installerinspired features make installation and maintenance safe and easy. This series of mounts makes it easy to take control of your installation. Universal and with low-profile mounts they are engineeredfor speed of installation and usability. With a variety of products ranging from a single TV to a video wall matrix for digital signage, Multibrackets SD mounts are the perfect solution for manyapplications.
