Stock Status: 1x unit in stock
FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.
HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.
120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
Specs
| Power |
| Total power |
750 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Input current |
12-6 A |
| Power Factor Correction (PFC) type |
Active |
| Hold time |
16 ms |
| Efficiency |
90% |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Weight & dimensions |
| Width |
150 mm |
| Depth |
140 mm |
| Height |
86 mm |
| Ports & interfaces |
| Motherboard power connector |
20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| Motherboard power cable length |
61 cm |
| Number of SATA power connectors |
8 |
| SATA power cable length |
150,600 mm |
| Peripheral (Molex) power cable length |
120,500 mm |
| EPS power connector (4+4 pin) |
Yes |
| PCI Express power connectors (6+2 pin) |
4 |
| PCI Express power cable length |
60 cm |
| CPU power connector (4+4 pin) |
Yes |
| CPU power cable length |
60 cm |
| ATX power connector (20+4 pin) |
Yes |
| Floppy drive power connector |
1 |
| Floppy disk drive cable length |
12 cm |
| PCI Express connector |
Yes |
| Cabling type |
Fully-Modular |
| Performance |
| Purpose |
PC |
| Power supply unit (PSU) form factor |
ATX |
| 80 PLUS certification |
80 PLUS Gold |
| ATX version |
2.31 |
| Mean time between failures (MTBF) |
100000 h |
| Design |
| Product colour |
Black |
| Cooling type |
Active |
| Fan diameter |
12 cm |
| Number of fans |
1 fan(s) |
| Fan location |
Top |
| Logistics data |
| Harmonized System (HS) code |
84733020 |
| Packaging content |
| Cables included |
CPU, PCIe, Peripheral (Molex), SATA |
Features

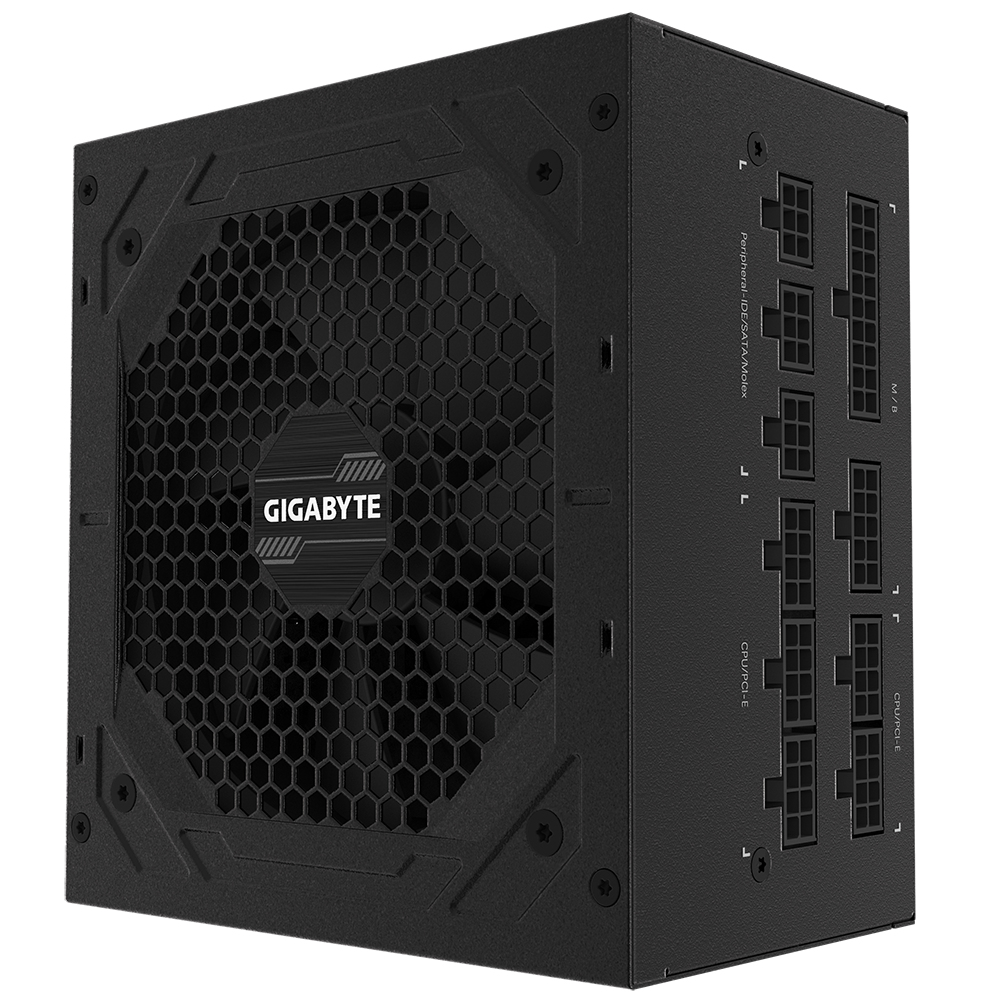

GIGABYTE P750GM. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Product Description
FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.
HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.
120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
