Stock Status: 1x unit in stock
TWIN Digital VRM Design
To ensure maximum Turbo Boost and overclocking performance of AMD's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.
The New Generation Ultra Durable™ SMD PCIe 5.0 Armor
The new generation, GIGABYTE's exclusive stainless-steel PCI-e shielding becomes 20% wider providing reinforced tensile strength.
DDR5 Auto Booster
Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.
GIGABYTE Active OC Tuner
With GIGABYTE's exclusive Active OC Tuner BIOS function, CPU* can work with AMD P.B.O. for gaming and other light workload applications with the highest CPU boost clock, but when the applications require all CPU cores horsepower, it automatically switches to the Manual OC mode where it can utilize the high frequency for all the CPU cores.
OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
Specs
| Weight & dimensions |
| Width |
305 mm |
| Depth |
269 mm |
| Memory |
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
4 |
| Maximum internal memory |
128 GB |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| Supported memory clock speeds |
4400,4800,5200,5600,6000,6200,6400 MHz |
| Processor |
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM5 |
| Compatible processor series |
AMD Ryzen™ 7 |
| Maximum number of SMP processors |
1 |
| Back panel I/O ports |
| USB 2.0 ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| HDMI version |
2.0 |
| S/PDIF out port |
Yes |
| Internal I/O |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Number of SATA III connectors |
6 |
| Audio connector |
Yes |
| Front panel connector |
Yes |
| CPU fan connector |
Yes |
| Chassis intrusion connector |
Yes |
| RGB LED pin header |
Yes |
| Networking |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 6E AX210 |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Packaging content |
| Cables included |
SATA |
| Drivers included |
Yes |
| BIOS |
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Graphics |
| Parallel processing technology support |
Crossfire |
| Features |
| Component for |
PC |
| Motherboard form factor |
ATX |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD X670 |
| Audio output channels |
7.1 channels |
| Windows operating systems supported |
Windows 10 Home x64, Windows 11 x64 |
| Storage controllers |
| Supported storage drive interfaces |
M.2, SATA II |
| Supported storage drive types |
HDD & SSD |
| RAID levels |
0, 1, 10 |
Features

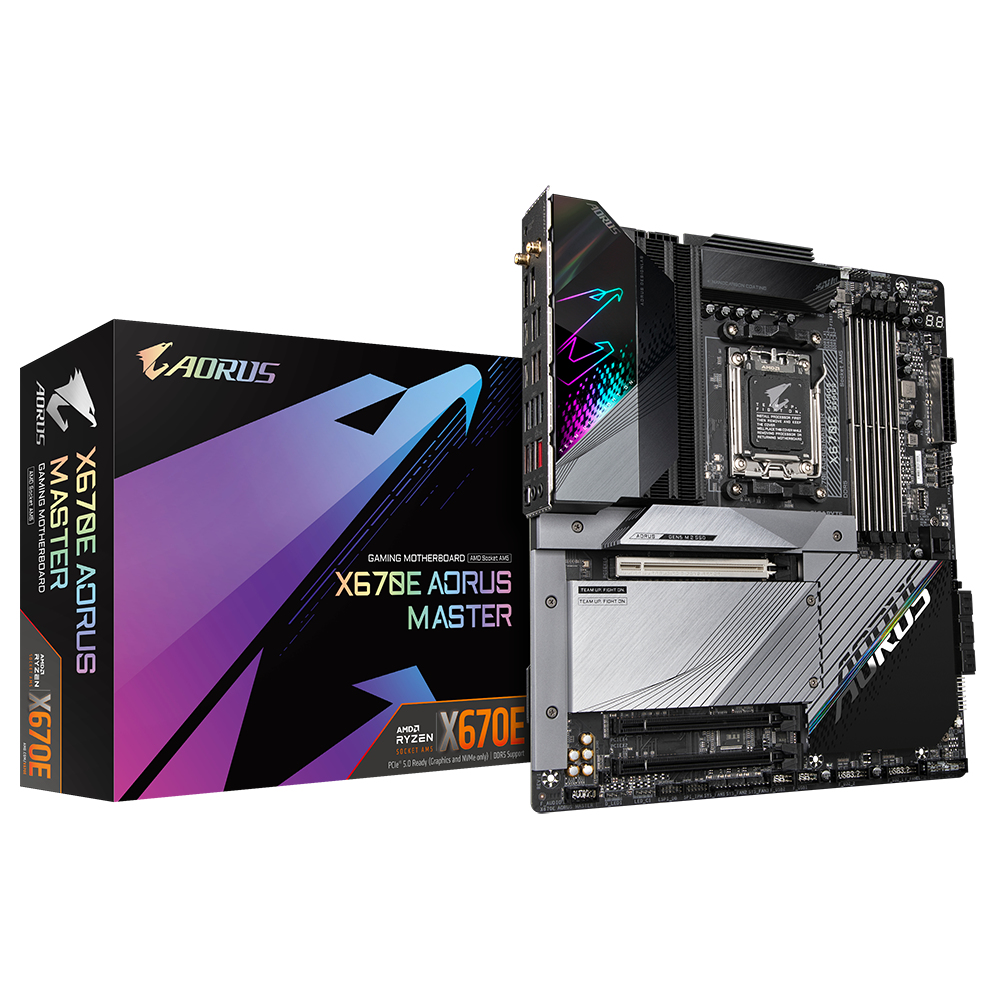

Gigabyte X670E AORUS MASTER (REV. 1.0). Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA II, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: Crossfire. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
Product Description
TWIN Digital VRM Design
To ensure maximum Turbo Boost and overclocking performance of AMD's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.
The New Generation Ultra Durable™ SMD PCIe 5.0 Armor
The new generation, GIGABYTE's exclusive stainless-steel PCI-e shielding becomes 20% wider providing reinforced tensile strength.
DDR5 Auto Booster
Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.
GIGABYTE Active OC Tuner
With GIGABYTE's exclusive Active OC Tuner BIOS function, CPU* can work with AMD P.B.O. for gaming and other light workload applications with the highest CPU boost clock, but when the applications require all CPU cores horsepower, it automatically switches to the Manual OC mode where it can utilize the high frequency for all the CPU cores.
OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
ULTRA DURABLE
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
