Performance . Stability
GIGABYTE NVMe SSD
Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.
Breaking the barriers of SATA limitations (256GB)
Outstanding performance
- GIGABYTE NVMe SSD provides performance for your daily computing tasks, boast of best controller & NAND flash that provide.
- Sequential read speeds up to 1700 MB/s.
- Sequential write speeds up to 1100 MB/s.
- GIGABYTE M.2 PCIe SSD gives you faster data transferring experience compared to 2.5" SATA solid state drive.
SSD Tool Box
The newly updated SSD Tool Box is an application that helps users monitor SSD Status, provides general information such as model name, FW version, health condition, drive optimization and also detects sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the Support.
Specs
| Weight & dimensions |
| Width |
80 mm |
| Depth |
22 mm |
| Height |
2.3 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Power |
| Operating voltage |
3.3 V |
| Current |
1 A |
| Power consumption (read) |
2.6 W |
| Power consumption (write) |
2.4 W |
| Power consumption (idle) |
0.0019 W |
| Features |
| SSD form factor |
M.2 |
| SSD capacity |
256 GB |
| Interface |
PCI Express 3.0 |
| NVMe |
Y |
| Component for |
PC/notebook |
| NVMe version |
1.3 |
| Read speed |
1700 MB/s |
| Write speed |
1100 MB/s |
| Random read (4KB) |
180000 IOPS |
| Random write (4KB) |
250000 IOPS |
| Mean time between failures (MTBF) |
1500000 h |
| TBW rating |
300 |
| Harmonized System (HS) code |
84717070 |
Features

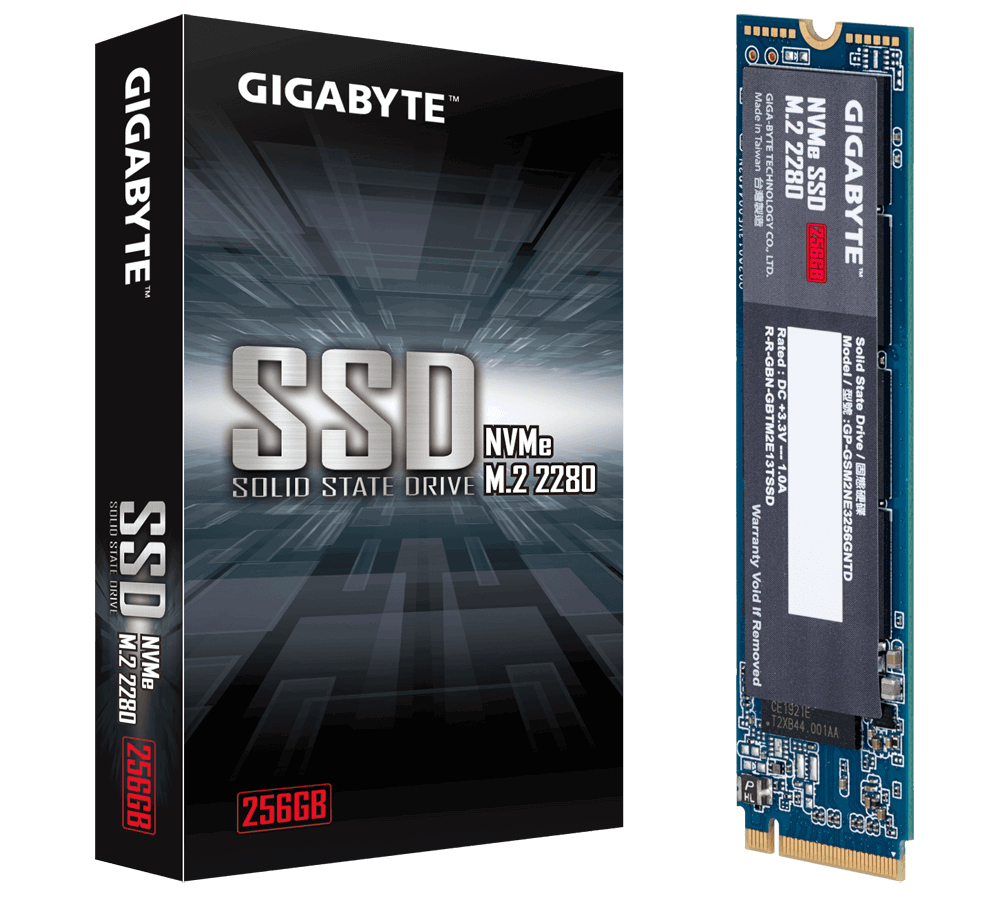

Gigabyte GP-GSM2NE3256GNTD. SSD capacity: 256 GB, SSD form factor: M.2, Read speed: 1700 MB/s, Write speed: 1100 MB/s, Component for: PC/notebook
Product Description
Performance . Stability
GIGABYTE NVMe SSD
Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.
Breaking the barriers of SATA limitations (256GB)
Outstanding performance
- GIGABYTE NVMe SSD provides performance for your daily computing tasks, boast of best controller & NAND flash that provide.
- Sequential read speeds up to 1700 MB/s.
- Sequential write speeds up to 1100 MB/s.
- GIGABYTE M.2 PCIe SSD gives you faster data transferring experience compared to 2.5" SATA solid state drive.
SSD Tool Box
The newly updated SSD Tool Box is an application that helps users monitor SSD Status, provides general information such as model name, FW version, health condition, drive optimization and also detects sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the Support.
