Stock Status: 1x unit in stock
GIGABYTE custom-designed 90mm fan cooler
GIGABYTE custom-designed 90 mm fan cooler, with air flow optimized cover and aluminum base. The cooler can dissipate heat effectively from the GPU while keeping the fan at lower speed and noise.
Cooling System
90mm Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
Performance
One-click Super overclocking
With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.
Durability
Ultra Cooling
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
Low Power Loss
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
Longer Life
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
Intuitive Utility
Intuitive XTREME Engine Utility
Clock speeds, voltage, fan performance, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
Specs
| System requirements |
| Windows operating systems supported |
Y |
| Linux operating systems supported |
Y |
| Other operating systems supported |
FreeBSD |
| Weight & dimensions |
| Depth |
172 mm |
| Height |
30 mm |
| Width |
113 mm |
| Processor |
| Graphics processor family |
NVIDIA |
| Graphics processor |
GeForce GTX 1050 Ti |
| Maximum resolution |
7680 x 4320 pixels |
| CUDA |
Y |
| Processor frequency |
1290 MHz |
| CUDA cores |
768 |
| Processor boost clock speed |
1392 MHz |
| Processor frequency (OC mode) |
1316 MHz |
| Processor boost clock speed (OC mode) |
1430 MHz |
| Maximum digital resolution |
7680 x 4320 pixels |
| Maximum displays per videocard |
3 |
| Memory |
| Discrete graphics card memory |
4 GB |
| Graphics card memory type |
GDDR5 |
| Memory bus |
128 bit |
| Memory clock speed |
7008 MHz |
| Data transfer rate |
7 Gbit/s |
| Memory bandwidth (max) |
112 GB/s |
| Ports & interfaces |
| Interface type |
PCI Express x16 3.0 |
| HDMI ports quantity |
1 |
| DVI-D ports quantity |
1 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.0b |
| DisplayPort version |
1.4 |
| Power |
| Minimum system power supply |
300 W |
| Power consumption (typical) |
75 W |
| Performance |
| DirectX version |
12.0 |
| OpenGL version |
4.5 |
| Dual Link DVI |
Y |
| HDCP |
Y |
| NVIDIA G-SYNC |
Y |
| Design |
| Cooling type |
Active |
| Number of fans |
1 fan(s) |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Bracket height |
Full-Height (FH) |
| Number of slots |
2 |
| Product colour |
Black |
| Technical details |
| Harmonized System (HS) code |
84733020 |
Features

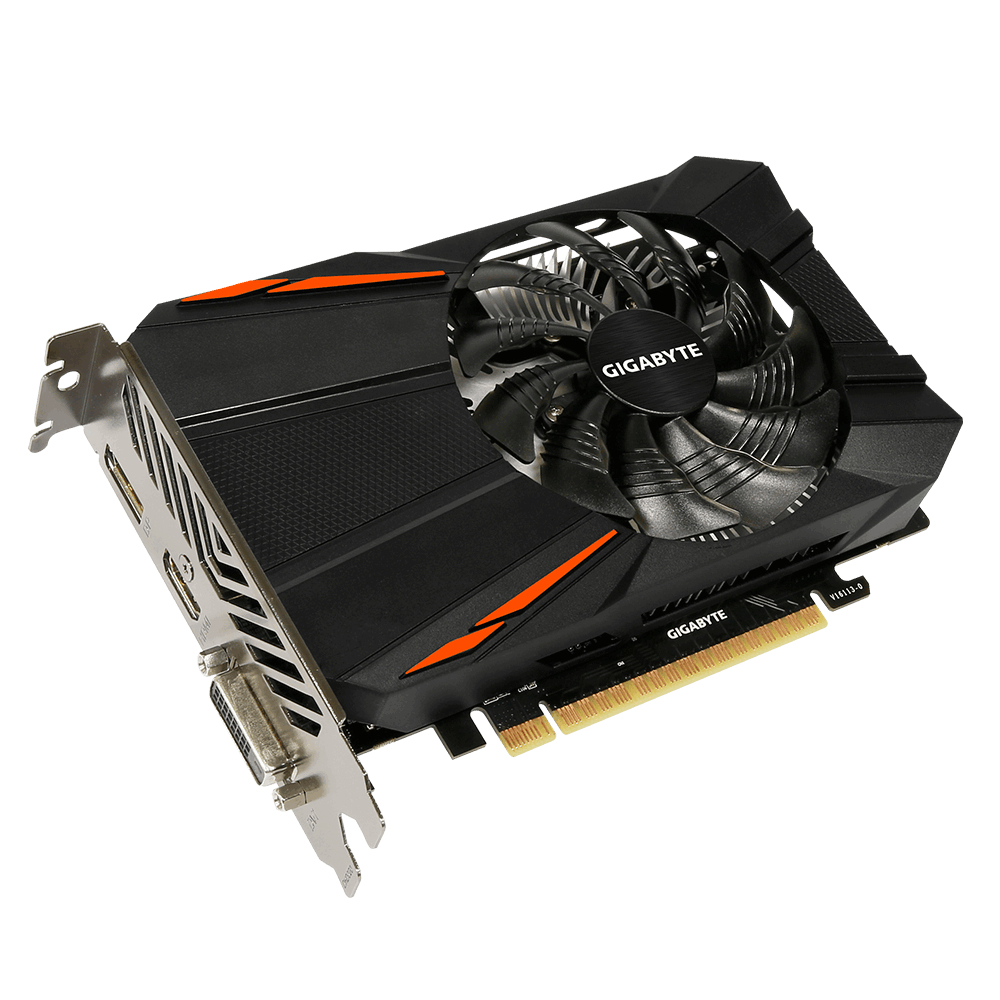

Gigabyte GeForce GTX 1050 Ti D5 4G. Graphics processor family: NVIDIA, Graphics processor: GeForce GTX 1050 Ti, Processor frequency: 1290 MHz. Discrete graphics card memory: 4 GB, Graphics card memory type: GDDR5, Memory bus: 128 bit, Memory clock speed: 7008 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.5, Dual Link DVI. Interface type: PCI Express x16 3.0. Cooling type: Active, Number of fans: 1 fan(s)
Product Description
GIGABYTE custom-designed 90mm fan cooler
GIGABYTE custom-designed 90 mm fan cooler, with air flow optimized cover and aluminum base. The cooler can dissipate heat effectively from the GPU while keeping the fan at lower speed and noise.
Cooling System
90mm Unique Blade Fan Design
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
3D Active Fan
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
Performance
One-click Super overclocking
With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.
Durability
Ultra Cooling
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
Low Power Loss
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
Longer Life
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
Intuitive Utility
Intuitive XTREME Engine Utility
Clock speeds, voltage, fan performance, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
