Stock Status: 1x unit in stock
WINDFORCE 2X COOLING SYSTEM
WINDFORCE 2X cooling system features two 100mm unique blade fans, alternate spinning, two composite copper heat pipe direct touches the GPU and 3D active fans, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPE DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
BUILT STRONG
EXTREME DURABILITY
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
IN TOTAL COMMAND
The actual software UI and functionalities depend on each device model.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
Specs
| System requirements |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64, Windows 7 x64 |
| Weight & dimensions |
| Depth |
265 mm |
| Height |
40 mm |
| Width |
121 mm |
| Processor |
| Graphics processor family |
NVIDIA |
| Graphics processor |
GeForce RTX 2060 |
| Maximum resolution |
7680 x 4320 pixels |
| CUDA |
Y |
| Processor frequency |
1680 MHz |
| Parallel processing technology support |
Not supported |
| CUDA cores |
2176 |
| Maximum displays per videocard |
4 |
| Memory |
| Discrete graphics card memory |
12 GB |
| Graphics card memory type |
GDDR6 |
| Memory bus |
192 bit |
| Memory clock speed |
14000 MHz |
| Memory bandwidth (max) |
336 GB/s |
| Ports & interfaces |
| Interface type |
PCI Express x16 3.0 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
3 |
| HDMI version |
2.0b |
| DisplayPort version |
1.4 |
| Power |
| Minimum system power supply |
550 W |
| Supplementary power connectors |
1x 8-pin |
| Packaging data |
| Manual |
Y |
| Package type |
Box |
| Performance |
| TV tuner integrated |
N |
| DirectX version |
12.0 |
| OpenGL version |
4.6 |
| Dual Link DVI |
N |
| Virtual Reality (VR) ready |
Y |
| NVIDIA G-SYNC |
Y |
| Design |
| Cooling type |
Active |
| Cooling technology |
GIGABYTE WINDFORCE 2X |
| Number of fans |
2 fan(s) |
| Fan diameter |
10 cm |
| Product colour |
Black |
| Technical details |
| Harmonized System (HS) code |
84733020 |
Features

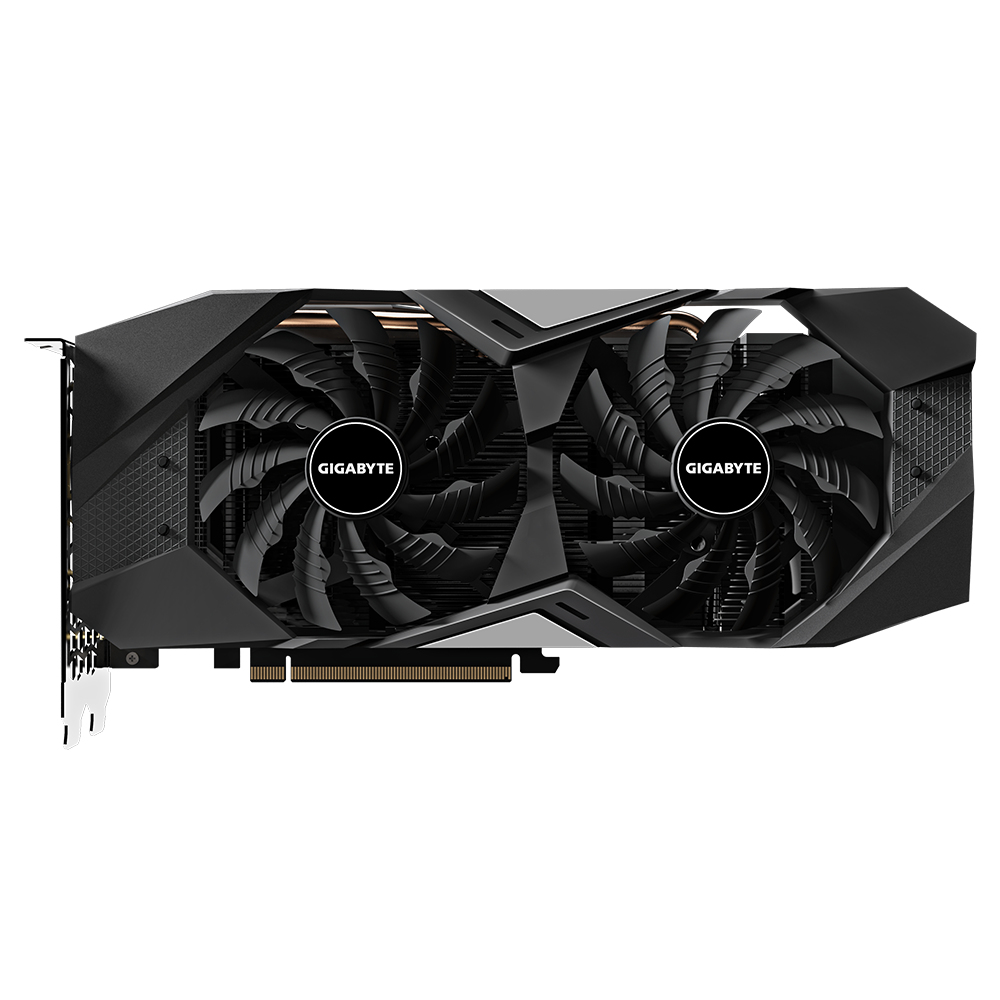

Gigabyte GeForce RTX 2060 WINDFORCE OC 12G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 2060, Processor frequency: 1680 MHz. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6, Memory bus: 192 bit, Memory clock speed: 14000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 3.0. Cooling type: Active, Number of fans: 2 fan(s)
Product Description
WINDFORCE 2X COOLING SYSTEM
WINDFORCE 2X cooling system features two 100mm unique blade fans, alternate spinning, two composite copper heat pipe direct touches the GPU and 3D active fans, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPE DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
BUILT STRONG
EXTREME DURABILITY
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
IN TOTAL COMMAND
The actual software UI and functionalities depend on each device model.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
