Stock Status: 1x unit in stock
WINDFORCE
3XCOOLING SYSTEM
The WINDFORCE 3X cooling system features three 80mm unique blade fans, alternate spinning, 6 composite copper heat pipes direct touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
Specs
| Weight & dimensions |
| Depth |
283 mm |
| Height |
50 mm |
| Width |
115 mm |
| Processor |
| Graphics processor family |
NVIDIA |
| Graphics processor |
GeForce RTX 3070 Ti |
| Maximum resolution |
7680 x 4320 pixels |
| CUDA |
Y |
| Processor frequency |
1800 MHz |
| CUDA cores |
6144 |
| Maximum displays per videocard |
4 |
| FireStream |
N |
| Memory |
| Discrete graphics card memory |
8 GB |
| Graphics card memory type |
GDDR6X |
| Memory bus |
256 bit |
| Memory clock speed |
19000 MHz |
| Memory bandwidth (max) |
608 GB/s |
| Ports & interfaces |
| Interface type |
PCI Express x16 4.0 |
| HDMI ports quantity |
2 |
| DisplayPorts quantity |
2 |
| HDMI version |
2.1 |
| DisplayPort version |
1.4a |
| Power |
| Minimum system power supply |
750 W |
| Supplementary power connectors |
2x 8-pin |
| Packaging data |
| User guide |
Y |
| Package type |
Box |
| Performance |
| TV tuner integrated |
N |
| DirectX version |
12 Ultimate |
| OpenGL version |
4.6 |
| Dual Link DVI |
N |
| HDCP |
Y |
| Design |
| Cooling type |
Active |
| Cooling technology |
GIGABYTE WINDFORCE 3X |
| Number of fans |
3 fan(s) |
| Illumination |
Y |
| Illumination colour |
Multi |
| Product colour |
Black |
| Technical details |
| Harmonized System (HS) code |
84733020 |
Features

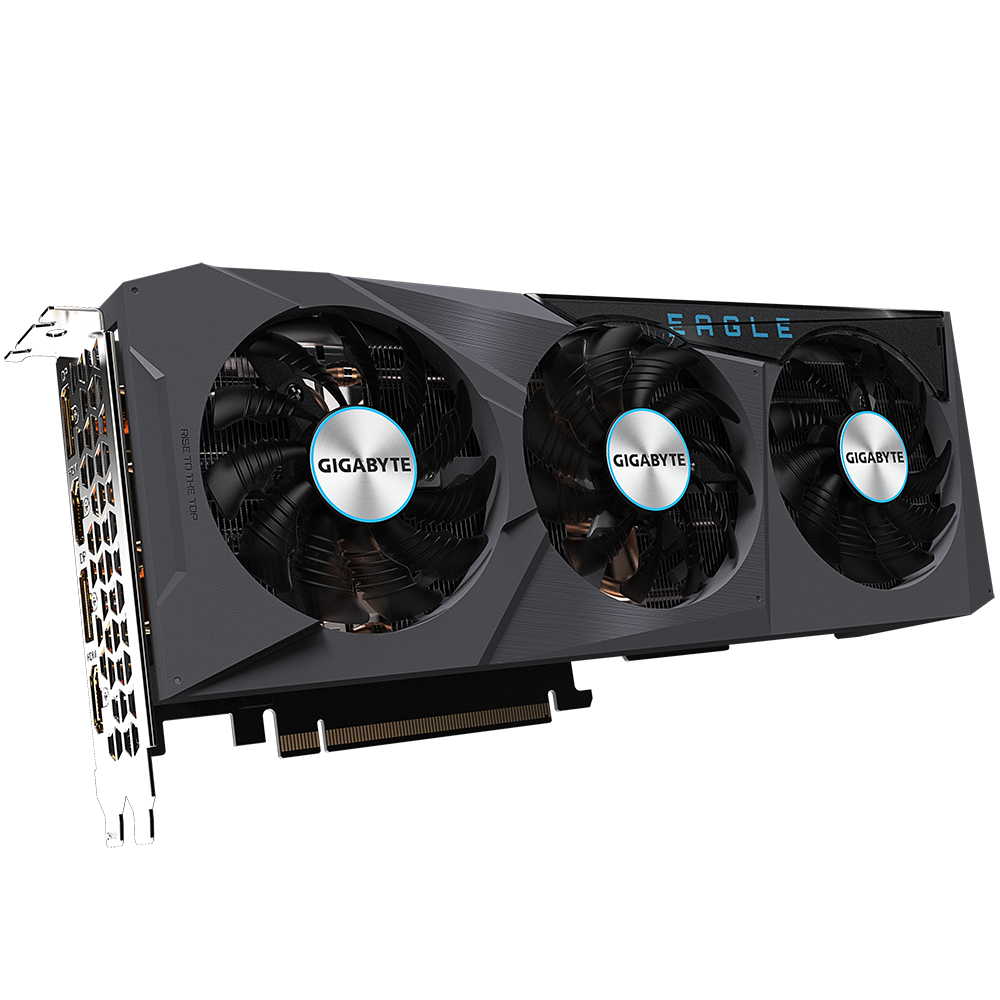

Gigabyte GeForce RTX 3070 Ti EAGLE OC 8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3070 Ti, Processor frequency: 1800 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6X, Memory bus: 256 bit, Memory clock speed: 19000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 1?2 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x16 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Product Description
WINDFORCE
3XCOOLING SYSTEM
The WINDFORCE 3X cooling system features three 80mm unique blade fans, alternate spinning, 6 composite copper heat pipes direct touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
