Stock Status: 1x unit in stock
- HP offers a full line of docking stations designed exclusively for select HP Business Notebook platforms so you can maintain the connectivity and comfort of your laptop at a fixed station.
- Simply insert your laptop into the dock until it clicks and you’re ready to go—without the hassle of rerouting cables or reconnecting the devices at your desk.
- Get convenient port replication and cord management, backward compatibility with legacy devices, room to grow with new technologies, an upgrade bay for additional storage, and battery charging on the connected notebook.
- USB 2.0 and 3.0 ports enable instant connection to your USB peripherals. USB 3.0 reduces the time required for data transmission (vs. USB 2.0), is backward compatible with USB 2.0, and is bi-directional.
Specs
| Weight & dimensions |
| Width |
270.5 mm |
| Depth |
260 mm |
| Height |
66 mm |
| Weight |
1.63 kg |
| Ports & interfaces |
| Connectivity technology |
Docking |
| USB 2.0 ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DisplayPorts quantity |
2 |
| DVI-D ports quantity |
2 |
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| DC-in jack |
Yes |
| eSATA ports quantity |
1 |
| Power |
| AC input voltage |
100-240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
120 W |
| Packaging content |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Manual |
Yes |
| Other features |
| Dimensions (WxDxH) |
270.5 x 260 x 66 mm |
| Power requirements |
"Rated Voltage: 100 to 240 V; Rated Current:2.5A rms; Line Frequency:50 - 60 Hz" |
| I/O ports |
4 USB 3.0 ports (Always-On); 2 USB 2.0 ports (1 Always-On, 1 powered); 1 eSATA adapter; 1 Line-in jack; 1 Audio-out (headphone) jack; 2 DisplayPort; 1 VGA; 2 DVI-D; AC adapter connector with light; 1 Mouse connector; 1 Keyboard connector; 1 Parallel port; |
| Security management description |
Supports the HP Docking Station Cable Lock, which gives you two security options: lock the docking station only (which also prevents access to the Advanced Docking Station drive bay); or lock both the docking station and your notebook for additional secur |
| Expansion slots |
SATA upgrade bay |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
| Product colour |
Black |
| Card reader integrated |
No |
| Optical drive included |
No |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| LED indicators |
Yes |
| Brand compatibility |
HP |
Features

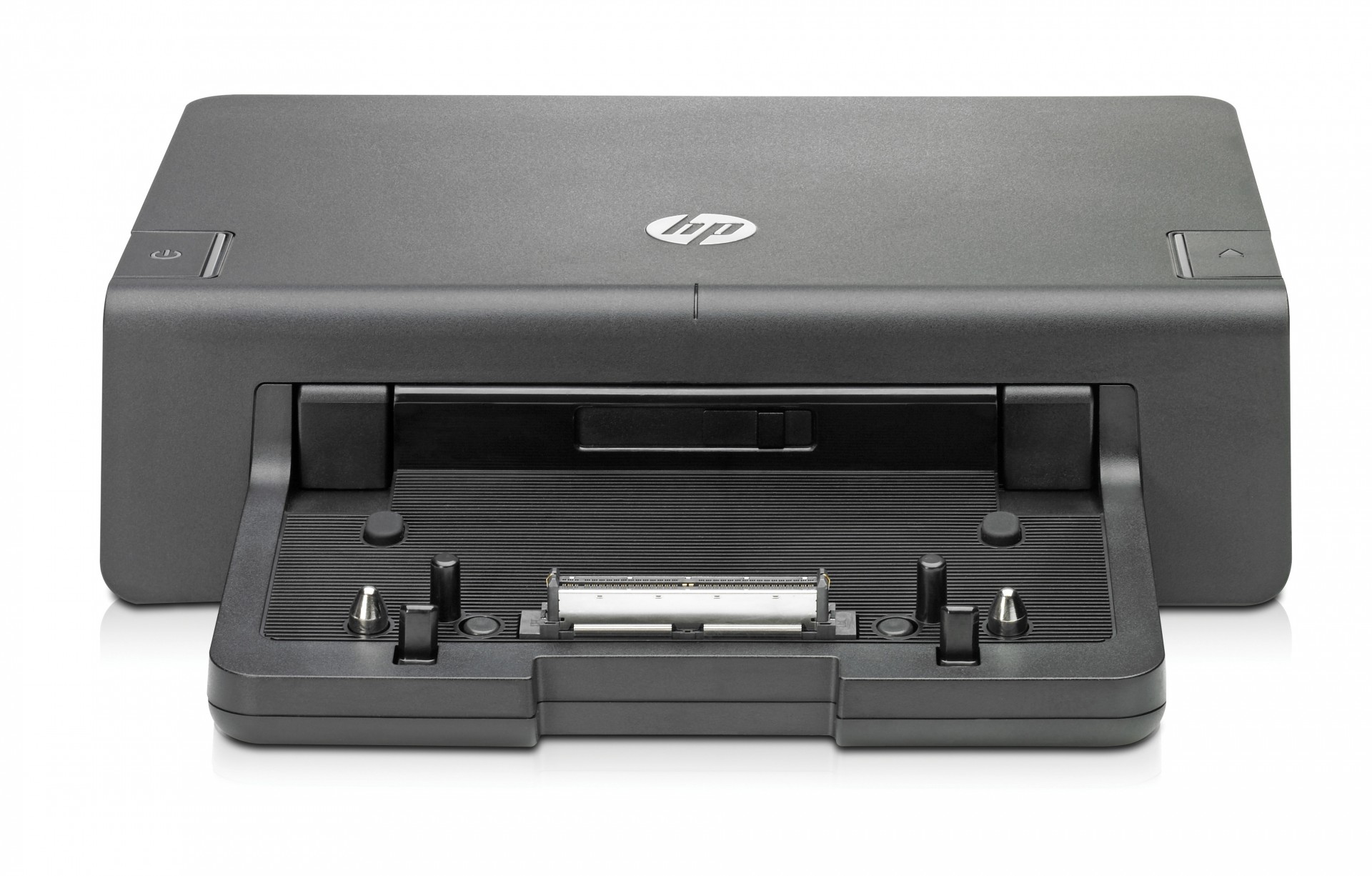

HP 2012 120W Advanced Docking Station. Connectivity technology: Docking. Product colour: Black, Cable lock slot type: Kensington, Brand compatibility: HP. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Power consumption (typical): 120 W. Width: 270.5 mm, Depth: 260 mm, Height: 66 mm. Dimensions (WxDxH): 270.5 x 260 x 66 mm, Power requirements: "Rated Voltage: 100 to 240 V; Rated Current: 2.5A rms; Line Frequency: 50 - 60 Hz", I/O ports: 4 USB 3.0 ports (Always-On); 2 USB 2.0 ports (1 Always-On, 1 powered); 1 eSATA adapter; 1 Line-in...
Product Description
- HP offers a full line of docking stations designed exclusively for select HP Business Notebook platforms so you can maintain the connectivity and comfort of your laptop at a fixed station.
- Simply insert your laptop into the dock until it clicks and you’re ready to go—without the hassle of rerouting cables or reconnecting the devices at your desk.
- Get convenient port replication and cord management, backward compatibility with legacy devices, room to grow with new technologies, an upgrade bay for additional storage, and battery charging on the connected notebook.
- USB 2.0 and 3.0 ports enable instant connection to your USB peripherals. USB 3.0 reduces the time required for data transmission (vs. USB 2.0), is backward compatible with USB 2.0, and is bi-directional.
