Stock Status: 1x unit in stock

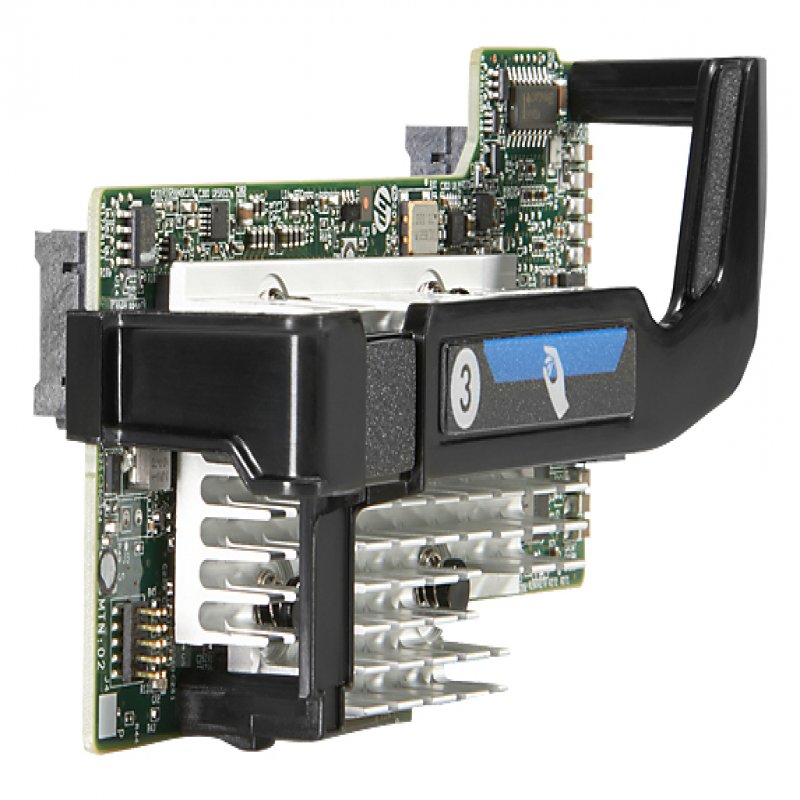

The HP FlexFabric 20Gb 2-port 630FLB Adapter for HP ProLiant Gen8 Blades servers gives you twice the bandwidth of 10 Gb adapters for virtualized and converged data centers. This new FlexibleLOM Adapter improves Ethernet, FCoE and iSCSI speed increasing workload performance and scalability.
Each FlexFabric 20Gb adapter replaces a 10Gb Nic and 8Gb FC HBA simplifying I/O hardware by 50% and reducing costs by 60%.
Features
20Gb bandwidth improves performance and accelerates virtualized workloads.
2X bandwidth improvement to remove server I/O bottlenecks.
One 20Gb adapter provides 35% cpu improvement over two 10Gb adapters.
Flex-20/FlexFabric technology allows you to dynamically fine tune up to four partitioned connections to meet different application needs.
Flex-20/FlexFabric technology simplifies I/O hardware and reduces costs.
Consolidate server I/O connections reducing NIC/HBA adapters, cabling and switch port requirements.
Each adapter eliminates server I/O hardware by 50% and reduces costs by 60%.
Reduce up to 95% of the hardware needed to connect servers to the network, when used with the HP Virtual Connect FlexFabric 20/40 F8 Module.
Centralized Life-cycle management streamlines operations.
Provision multiple adapters in seconds using Virtual Connect profiles.
Manage updates from centralized Virtual Connect Manager or Virtual Connect Enterprise Manger.
Orchestrate reliable adapter firmware updates on multiple blade servers with HP Smart Update Manager (SUM).
Specs
| Networking |
| Maximum data transfer rate |
20000 Mbit/s |
| Networking standards |
IEEE 802.1ab,IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3x |
| Full duplex |
Y |
| Weight & dimensions |
| Width |
57.2 mm |
| Depth |
241.3 mm |
| Height |
190.5 mm |
| Weight |
450 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
PCI Express |
| Interface |
Ethernet |
| PCI version |
2.0 |
| Power |
| Power consumption (typical) |
12 W |
| Other features |
| Ports quantity |
2 |
| Design |
| Internal |
Y |
| Component for |
Server |
| Chipset |
Broadcom BCM 57840S MAC/PHY |
| Form factor |
FlexibleLOM |
Features
Hewlett Packard Enterprise FlexFabric 20Gb 2-port 630FLB. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 20000 Mbit/s
Product Description
The HP FlexFabric 20Gb 2-port 630FLB Adapter for HP ProLiant Gen8 Blades servers gives you twice the bandwidth of 10 Gb adapters for virtualized and converged data centers. This new FlexibleLOM Adapter improves Ethernet, FCoE and iSCSI speed increasing workload performance and scalability.
Each FlexFabric 20Gb adapter replaces a 10Gb Nic and 8Gb FC HBA simplifying I/O hardware by 50% and reducing costs by 60%.
Features
20Gb bandwidth improves performance and accelerates virtualized workloads.
2X bandwidth improvement to remove server I/O bottlenecks.
One 20Gb adapter provides 35% cpu improvement over two 10Gb adapters.
Flex-20/FlexFabric technology allows you to dynamically fine tune up to four partitioned connections to meet different application needs.
Flex-20/FlexFabric technology simplifies I/O hardware and reduces costs.
Consolidate server I/O connections reducing NIC/HBA adapters, cabling and switch port requirements.
Each adapter eliminates server I/O hardware by 50% and reduces costs by 60%.
Reduce up to 95% of the hardware needed to connect servers to the network, when used with the HP Virtual Connect FlexFabric 20/40 F8 Module.
Centralized Life-cycle management streamlines operations.
Provision multiple adapters in seconds using Virtual Connect profiles.
Manage updates from centralized Virtual Connect Manager or Virtual Connect Enterprise Manger.
Orchestrate reliable adapter firmware updates on multiple blade servers with HP Smart Update Manager (SUM).
