| Weight & dimensions |
| Width |
121 mm |
| Depth |
121 mm |
| Height |
49.5 mm |
| Weight |
740 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
Thunderbolt 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| Microphone in |
No |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB Power Delivery up to |
100 W |
| HDMI version |
2.1 |
| Thunderbolt 4 ports quantity |
1 |
| Power |
| Power supply |
120 W |
| Thunderbolt 4 cable length |
1 m |
| Packaging content |
| Warranty card |
Yes |
| Cables included |
AC |
| Other features |
| Compatible operating systems |
Windows 10; Windows 11; macOS; Linux; ThinPro; ChromeOS |
| Bundled software |
Poly Lens with automatic firmware updates |
| Pallet dimensions (W x D x H) (imperial) |
1199.9 x 1000 x 140 mm (47.2 x 39.4 x 5.51") |
| Pallet dimensions (W x D x H) |
1200 x 1000 x 140 mm |
| UNSPSC-code |
43211602 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
-15 - 3048 m |
| Non-operating altitude |
-15 - 12192 m |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Performance |
| Product colour |
Grey |
| Card reader integrated |
No |
| HD type |
5K Ultra HD |
| Maximum digital resolution |
5120 x 2880 pixels |
| Maximum refresh rate |
360 Hz |
| Cable lock slot |
Yes |
| Cable lock slot type |
Nano |
| LED indicators |
Power |
| Country of origin |
China, Thailand |
| Compatibility |
Tested and supported on select HP commercial PCs. For HP notebook compatibility please visit - https://pcb.inc.hp.com/webapp/#!/us-en and search by notebook. Tested and supported on select 3rd party PCs. Contact your local sales representative to learn mo |
| HP segment |
Business |
| Technical details |
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
| Box contents |

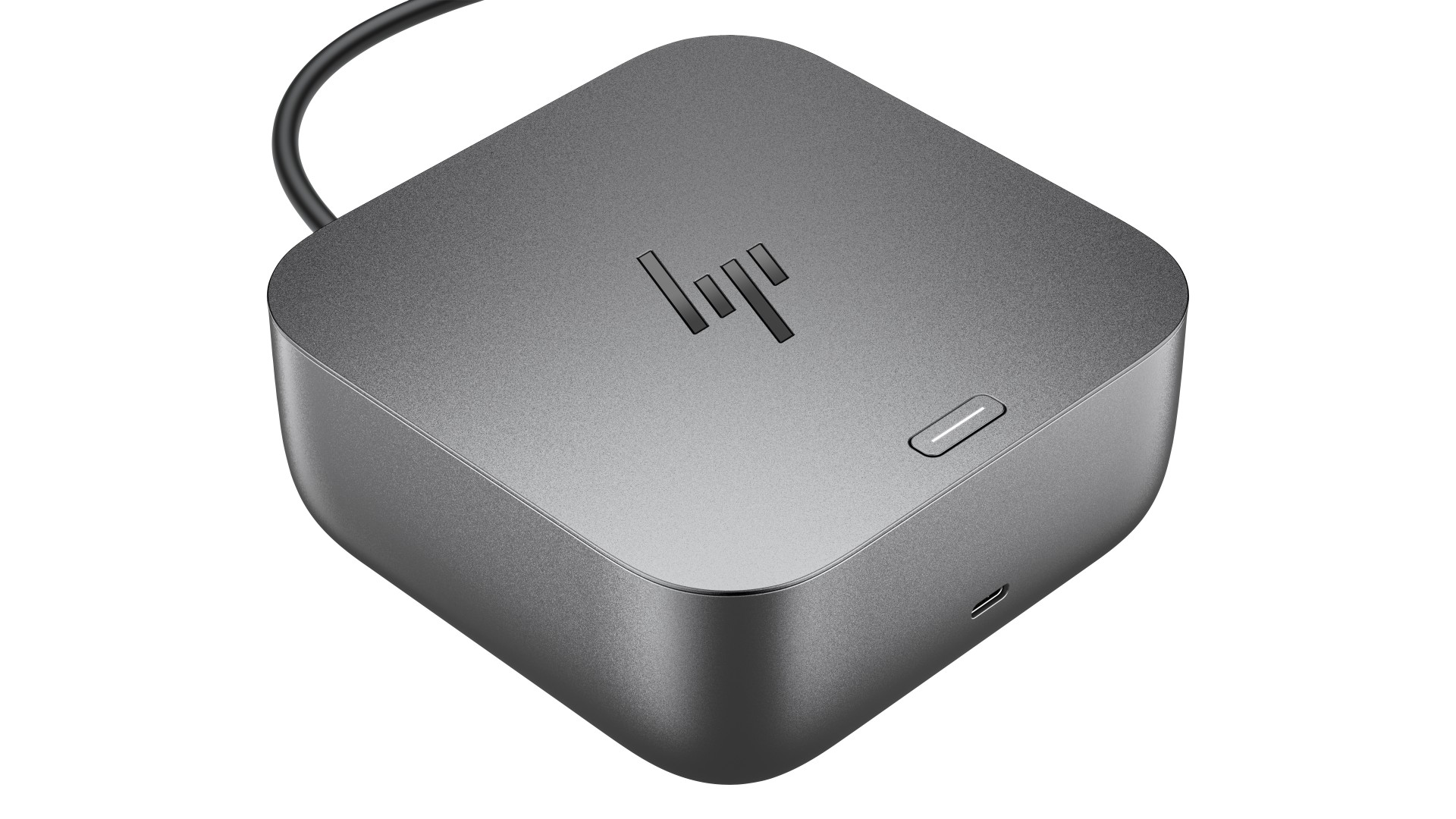

HP Thunderbolt 4 100W G6 Dock; 120 W power adapter; Thunderbolt™ 4 cable (1 m); Power cord; Product notice; Warranty card |
| Software |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Mac operating systems supported |
MacOS |
| Linux operating systems supported |
Yes |
| Other operating systems supported |
ChromeOS |
| Packaging data |
| Package width |
396 mm |
| Package depth |
171 mm |
| Package height |
95 mm |
| Package weight |
1.08 kg |
| Logistics data |
| Master (outer) cases per pallet layer |
28 pc(s) |
| Carbon footprint |
| Total carbon footprint (kg of CO2e) |
10 |
| Carbon emissions, manufacturing (kg of CO2e) |
7 |
| Carbon emissions, logistics (kg of CO2e) |
0.3 |
| Carbon emissions, end-of-life (kg of CO2e) |
0.1 |
| Total carbon emissions, w/o use phase (kg of CO2e) |
2 |
| Brand-specific features |
| HP GTIN (EAN/UPC) with options |
(ABB) 198415233004; (ABU) 198415233042 |
| HP GTIN (EAN/UPC) |
198415233004, 198415233042 |
