Stock Status: 1x unit in stock
Need the latest in KVM technology to manage the servers in your rack? HP KVM Console Kits provide ultra-dense, high-performance KVM consoles that combine both the rack display panel and keyboard with touch pad in a 1U form factor. The 1U rackmount form factor allows for a KVM console switch to be mounted directly behind it.

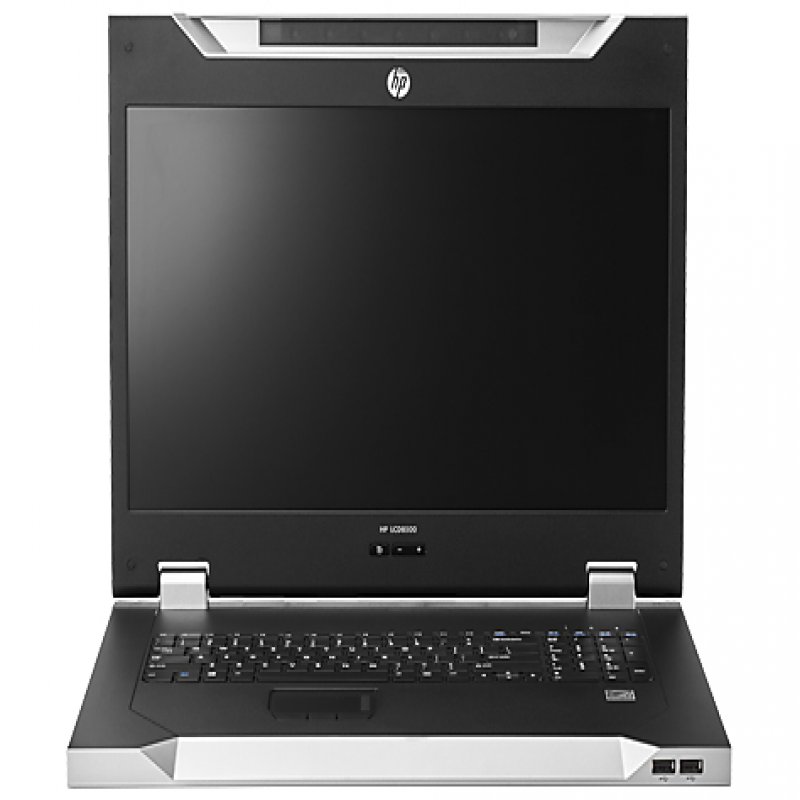

The HP LCD8500 1U Rackmount Console Kit with 18.5-inch WXGA TFT LCD brightview display supports most common video resolutions, up to 1600 x 1200 at 60 to 75 Hz refresh rates. The LCD8500 1U Rackmount Console Kit features a new silver enclosure making identification in the rack much easier.
The rackmount keyboard includes a three-button touch pad with four (4) scroll keys and Windows shortcut keys. The LCD8500 1U Rackmount Console Kit also includes a new Lid Switch display management feature that shuts off the display backlight when the console is closed and repowers to its current state when opened again, helping to prolong the life of the display panel.
Features
Ultra-Dense, High-Performance KVM Console Display and Keyboard
- HP KVM Console Kits provide ultra-dense, high-performance KVM consoles that combine both the rack display panel and keyboard with touch pad in a 1U form factor that allows you to mount a KVM console switch directly behind it.
- The HP LCD8500 1U Rackmount Console Kit features an 18.5-inch WXGA TFT LCD brightview display that supports most common video resolutions, from 800 x 600 through 1600 x 1200 at 60 to 75 Hz refresh rates.
- Active Matrix TFT LCD display guarantees a flicker-free picture that is sharper in focus than a CRT monitor.
- Includes two (2) front side USB pass-through ports for use with KVM Console Switches that support virtual media.
Advanced, Ergonomic Design
- HP KVM Console Kits feature a new silver colored enclosure making identification in the rack much easier.
- The HP LCD8500 1U Rackmount Console Kit keyboard includes a three-button touch pad, four (4) scroll keys, and Windows shortcut keys.
- Includes a new Lid Switch display management feature that shuts off the display backlight when the console is closed and repowers to its current state when opened again, helping to prolong the life of the display panel.
- Tool-less rails for rack installation are included with each console kit allowing for quick and easy installation within minutes.
Specs
| Weight & dimensions |
| Width |
436 mm |
| Height |
42.2 mm |
| Depth |
433 mm |
| Weight |
5.2 kg |
| Technical details |
| Product colour |
Silver |
| Rack mounting |
Y |
| Rack capacity |
1U |
| Display |
| Display diagonal |
47 cm (18.5") |
| Display resolution |
1600 x 1200 pixels |
| Display brightness |
187 cd/m² |
| Contrast ratio (typical) |
700:1 |
| Display type |
LCD |
| Power |
| Power consumption (typical) |
36 W |
| Keyboard |
| Built-in touchpad |
Y |
| Keyboard language |
US International |
| Keyboard layout |
QWERTY |
Features
Hewlett Packard Enterprise LCD8500 1U INTL Rackmount Console Kit. Display diagonal: 47 cm (18.5"), Display resolution: 1600 x 1200 pixels, Display brightness: 187 cd/m². Keyboard language: US International, Keyboard layout: QWERTY. Power consumption (typical): 36 W. Width: 436 mm, Height: 42.2 mm, Depth: 433 mm
Product Description
Need the latest in KVM technology to manage the servers in your rack? HP KVM Console Kits provide ultra-dense, high-performance KVM consoles that combine both the rack display panel and keyboard with touch pad in a 1U form factor. The 1U rackmount form factor allows for a KVM console switch to be mounted directly behind it.
The HP LCD8500 1U Rackmount Console Kit with 18.5-inch WXGA TFT LCD brightview display supports most common video resolutions, up to 1600 x 1200 at 60 to 75 Hz refresh rates. The LCD8500 1U Rackmount Console Kit features a new silver enclosure making identification in the rack much easier.
The rackmount keyboard includes a three-button touch pad with four (4) scroll keys and Windows shortcut keys. The LCD8500 1U Rackmount Console Kit also includes a new Lid Switch display management feature that shuts off the display backlight when the console is closed and repowers to its current state when opened again, helping to prolong the life of the display panel.
Features
Ultra-Dense, High-Performance KVM Console Display and Keyboard
- HP KVM Console Kits provide ultra-dense, high-performance KVM consoles that combine both the rack display panel and keyboard with touch pad in a 1U form factor that allows you to mount a KVM console switch directly behind it.
- The HP LCD8500 1U Rackmount Console Kit features an 18.5-inch WXGA TFT LCD brightview display that supports most common video resolutions, from 800 x 600 through 1600 x 1200 at 60 to 75 Hz refresh rates.
- Active Matrix TFT LCD display guarantees a flicker-free picture that is sharper in focus than a CRT monitor.
- Includes two (2) front side USB pass-through ports for use with KVM Console Switches that support virtual media.
Advanced, Ergonomic Design
- HP KVM Console Kits feature a new silver colored enclosure making identification in the rack much easier.
- The HP LCD8500 1U Rackmount Console Kit keyboard includes a three-button touch pad, four (4) scroll keys, and Windows shortcut keys.
- Includes a new Lid Switch display management feature that shuts off the display backlight when the console is closed and repowers to its current state when opened again, helping to prolong the life of the display panel.
- Tool-less rails for rack installation are included with each console kit allowing for quick and easy installation within minutes.
