Stock Status: 1x unit in stock

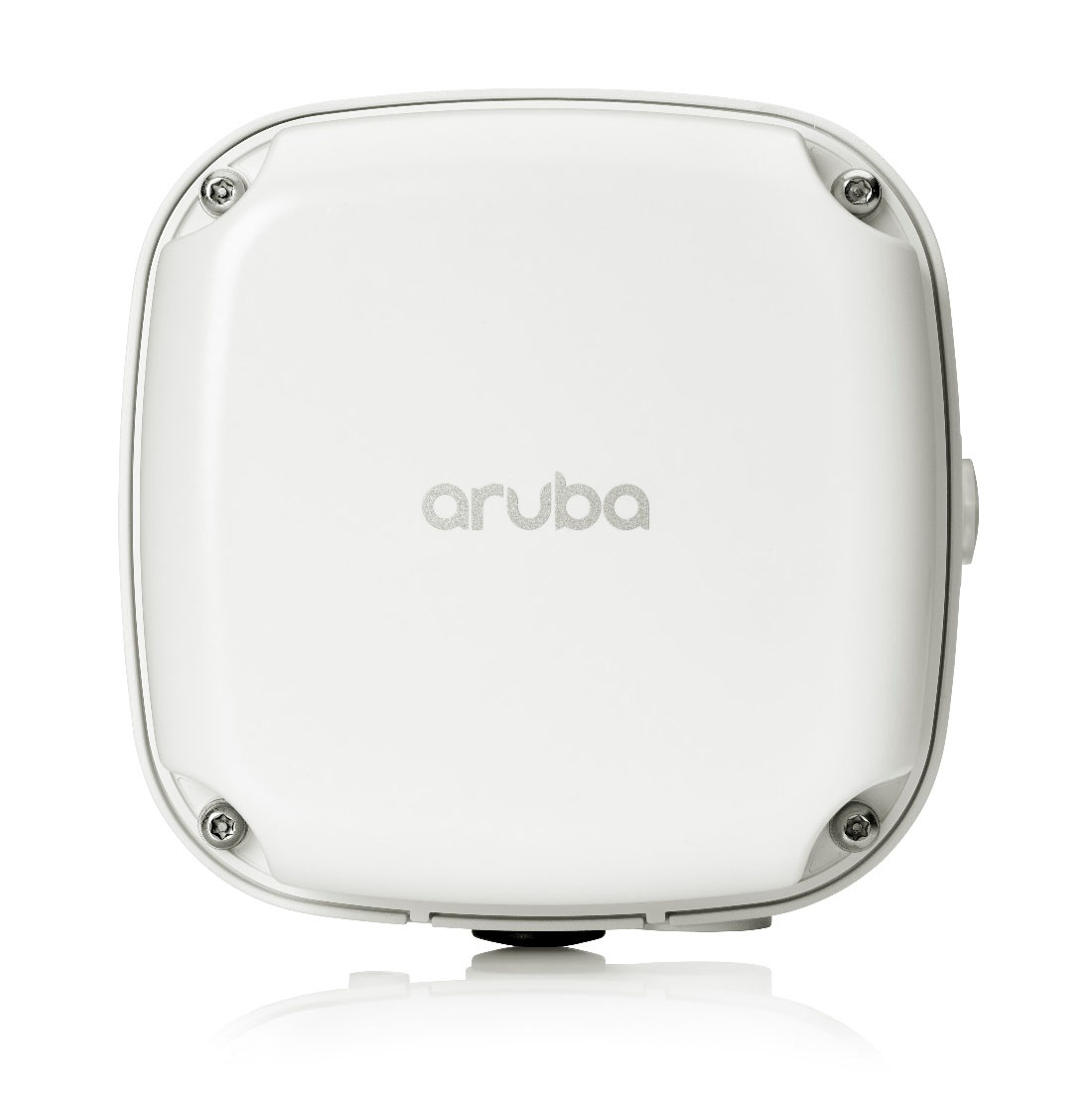

Weatherproof and temperature hardened, Aruba 560 Series Outdoor Access Points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Purpose-built to withstand extreme temperatures, persistent moisture and precipitation, electrical surges, and airborne contaminants.
Includes or interoperates with Aruba ESP capabilities such as AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open security, and Dynamic Segmentation.
Specs
| Operational conditions |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-40 - 55 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating altitude |
0 - 3000 m |
| Weight & dimensions |
| Width |
165 mm |
| Depth |
165 mm |
| Height |
110 mm |
| Weight |
1.03 kg |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| USB connector type |
USB Type-C |
| Power |
| Power over Ethernet (PoE) |
Y |
| Power consumption (max) |
15.6 W |
| Security |
| Security algorithms |
WPA2, WPA3 |
| Antenna |
| Antenna type |
Internal |
| Antenna direction type |
Omni-directional |
| Antenna features |
Integrated antenna |
| Antenna gain level (max) |
5.4 dBi |
| Design |
| Placement |
Pole, Wall |
| Product colour |
White |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Features |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Maximum data transfer rate |
1774 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
574 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1200 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt |
| Bluetooth |
Y |
| Bluetooth version |
5.0 |
| MDI / DMI-X automatic switchover |
Y |
| MIMO |
Y |
| MIMO type |
Multi User MIMO |
| Spread spectrum method |
DSSS, OFDM, OFDMA |
| Modulation |
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
Features
Hewlett Packard Enterprise Aruba AP-565 (RW). Maximum data transfer rate: 1774 Mbit/s, Maximum data transfer rate (2.4 GHz): 574 Mbit/s, Maximum data transfer rate (5 GHz): 1200 Mbit/s. Security algorithms: WPA2, WPA3. USB connector type: USB Type-C. Power consumption (max): 15.6 W. Placement: Pole, Wall, Product colour: White
Product Description
Weatherproof and temperature hardened, Aruba 560 Series Outdoor Access Points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Purpose-built to withstand extreme temperatures, persistent moisture and precipitation, electrical surges, and airborne contaminants.
Includes or interoperates with Aruba ESP capabilities such as AI-powered RF optimization, Live upgrades, WPA3 and Enhanced Open security, and Dynamic Segmentation.
