Stock Status: 1x unit in stock

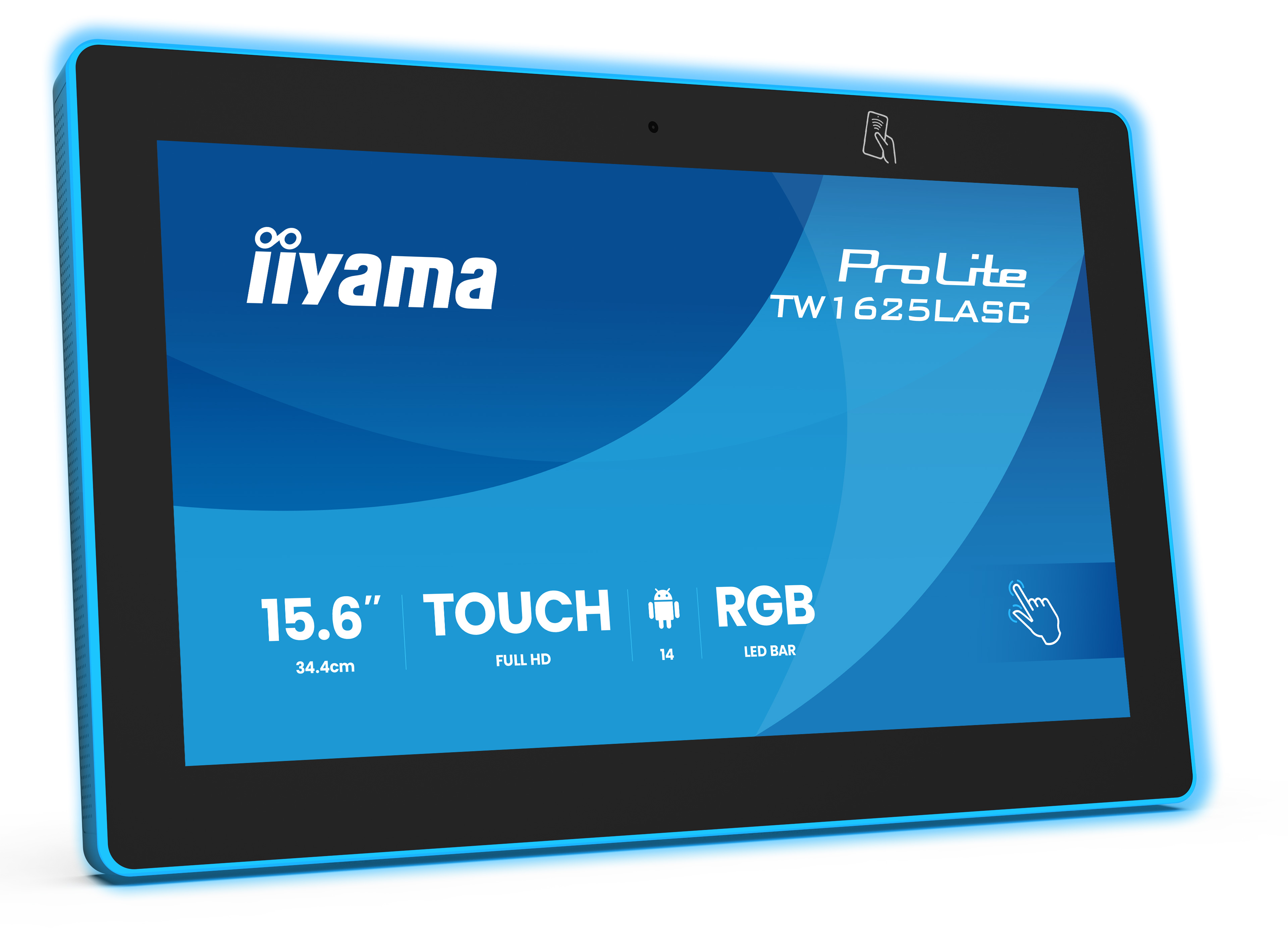

The ProLite TW1625LASC-B3PNR is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology with Optical Bonding ensures smooth and precise interaction with reduced glare, while protecting the display from humidity and moisture build-up. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. The integrated NFC/RFID reader enables contactless interaction with compatible tags or devices – ideal for quick check-in to rooms, employee authentication or triggering automated actions such as starting a presentation. The RGB LED bar integrated into the bezel shows the availability of rooms at a glance. With a built-in 5MP camera, microphone, and speakers, the TW1625LASC-B3PNR delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.
Specs
| Weight & dimensions |
| Display width |
397 mm |
| Display depth |
28.5 mm |
| Display height |
256 mm |
| Display weight |
2 kg |
| Width (with stand) |
397 mm |
| Depth (with stand) |
28.5 mm |
| Height (with stand) |
256 mm |
| Weight (with stand) |
2 kg |
| Display |
| Display diagonal |
39.6 cm (15.6") |
| Display technology |
LED |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
450 cd/m² |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Panel type |
IPS |
| LED backlight |
Yes |
| Touchscreen technology |
Projected capacitive system |
| Number of simultaneous touchpoints |
10 |
| Multi-touch |
Yes |
| Native aspect ratio |
16:9 |
| Response time |
20 ms |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
16.7 million colours |
| Pixel pitch |
0.1792 x 0.1792 mm |
| Active display area (W x H) |
344.16 x 193.5 mm |
| Display diagonal (metric) |
34.4 cm |
| Colour depth |
8 bit |
| Surface hardness |
6H |
| Glass thickness |
2.05 mm |
| Packaging data |
| Package width |
495 mm |
| Package depth |
495 mm |
| Package height |
305 mm |
| Package weight |
3 kg |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
4 W |
| Power |
| Power consumption (typical) |
11 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (off) |
0.5 W |
| Ports & interfaces |
| DVI port |
No |
| USB port |
Yes |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| USB ports quantity |
3 |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type |
USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| PC Audio in |
Yes |
| Card reader integrated |
Yes |
| Compatible memory cards |
SD |
| PC Audio out |
Yes |
| Other features |
| Quick start guide |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Megapixel (approx.) |
5 MP |
| Viewable size, horizontal |
34.4 cm |
| Viewable size, vertical |
19.4 cm |
| Power supply type |
External |
| Cable management |
Yes |
| Built-in camera |
Yes |
| Design |
| Product design |
Interactive flat panel |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Panel mounting interface |
75 x 75 mm |
| Anti-glare screen |
Yes |
| Fingerprint resistant |
Yes |
| Performance |
| Purpose |
Universal |
| Operating hours (hours/days) |
24/7 |
| Computer system |
| Built-in processor |
Yes |
| Processor manufacturer |
ARM |
| Processor family |
ARM Rockchip |
| Processor architecture |
ARM Cortex-A53+Cortex-A72 |
| Processor frequency |
2.2 GHz |
| Processor cores |
8 |
| Internal memory |
4 GB |
| Internal storage capacity |
32 GB |
| Operating system installed |
Android |
| Operating system version |
14 |
| Features |
| Wall mountable |
Yes |
| Certificates |
| Certification |
CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Packaging content |
| Power adapter included |
Yes |
Features
iiyama 15.6” PCAP 10pt touchscreen PC with Android, Power over Ethernet Technology, NFC/RFID reader and a RGB LED bar around the screen. Product design: Interactive flat panel. Display diagonal: 39.6 cm (15.6"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 450 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
Product Description
The ProLite TW1625LASC-B3PNR is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology with Optical Bonding ensures smooth and precise interaction with reduced glare, while protecting the display from humidity and moisture build-up. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. The integrated NFC/RFID reader enables contactless interaction with compatible tags or devices – ideal for quick check-in to rooms, employee authentication or triggering automated actions such as starting a presentation. The RGB LED bar integrated into the bezel shows the availability of rooms at a glance. With a built-in 5MP camera, microphone, and speakers, the TW1625LASC-B3PNR delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.
