Stock Status: 1x unit in stock
PROLITE TF2438MSC-B1
23.8” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing
The Full HD (1920x1080) Open Frame monitor ProLite TF2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.
OPTICAL BONDED PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.
OPEN FRAME LFD
Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.
IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
Specs
| Weight & dimensions |
| Display width |
512.5 mm |
| Display depth |
47 mm |
| Display height |
300 mm |
| Display weight |
5.1 kg |
| Display |
| Display diagonal |
55.9 cm (22") |
| Display technology |
LED |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
600 cd/m² |
| HD type |
Full HD |
| Touchscreen |
Yes |
| Panel type |
IPS |
| Touchscreen technology |
Projected capacitive system |
| Native aspect ratio |
16:9 |
| Response time |
5 ms |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
16.7 million colours |
| Active display area (W x H) |
479 x 260 mm |
| Display diagonal (metric) |
54.5 cm |
| Horizontal scan range |
28 - 160 kHz |
| Native refresh rate |
60 Hz |
| Surface hardness |
7H |
| Packaging data |
| Package width |
572 mm |
| Package depth |
112 mm |
| Package height |
364 mm |
| Package weight |
6.4 kg |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
2 W |
| Power |
| Power consumption (typical) |
17 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (off) |
0.3 W |
| Energy efficiency class (SDR) |
D |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 Hz |
| Ports & interfaces |
| HDMI ports quantity |
1 |
| DVI port |
No |
| DisplayPorts quantity |
1 |
| USB port |
Yes |
| Ethernet LAN |
No |
| Wi-Fi |
No |
| USB ports quantity |
2 |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| Design |
| Product design |
Digital A-board |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Panel mounting interface |
100 x 100 mm |
| Bezel width (bottom) |
1.98 cm |
| Bezel width (side) |
1.7 cm |
| Bezel width (top) |
1.98 cm |
| Performance |
| Purpose |
Universal |
| On Screen Display (OSD) languages |
Simplified Chinese, German, English, French, Japanese, Polish, Russian |
| HDCP |
Yes |
| International Protection (IP) code |
IP1X |
| Computer system |
| Computer system |
No |
| Built-in processor |
No |
| Certificates |
| Certification |
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Packaging content |
| Cables included |
HDMI, Power, USB |
Features

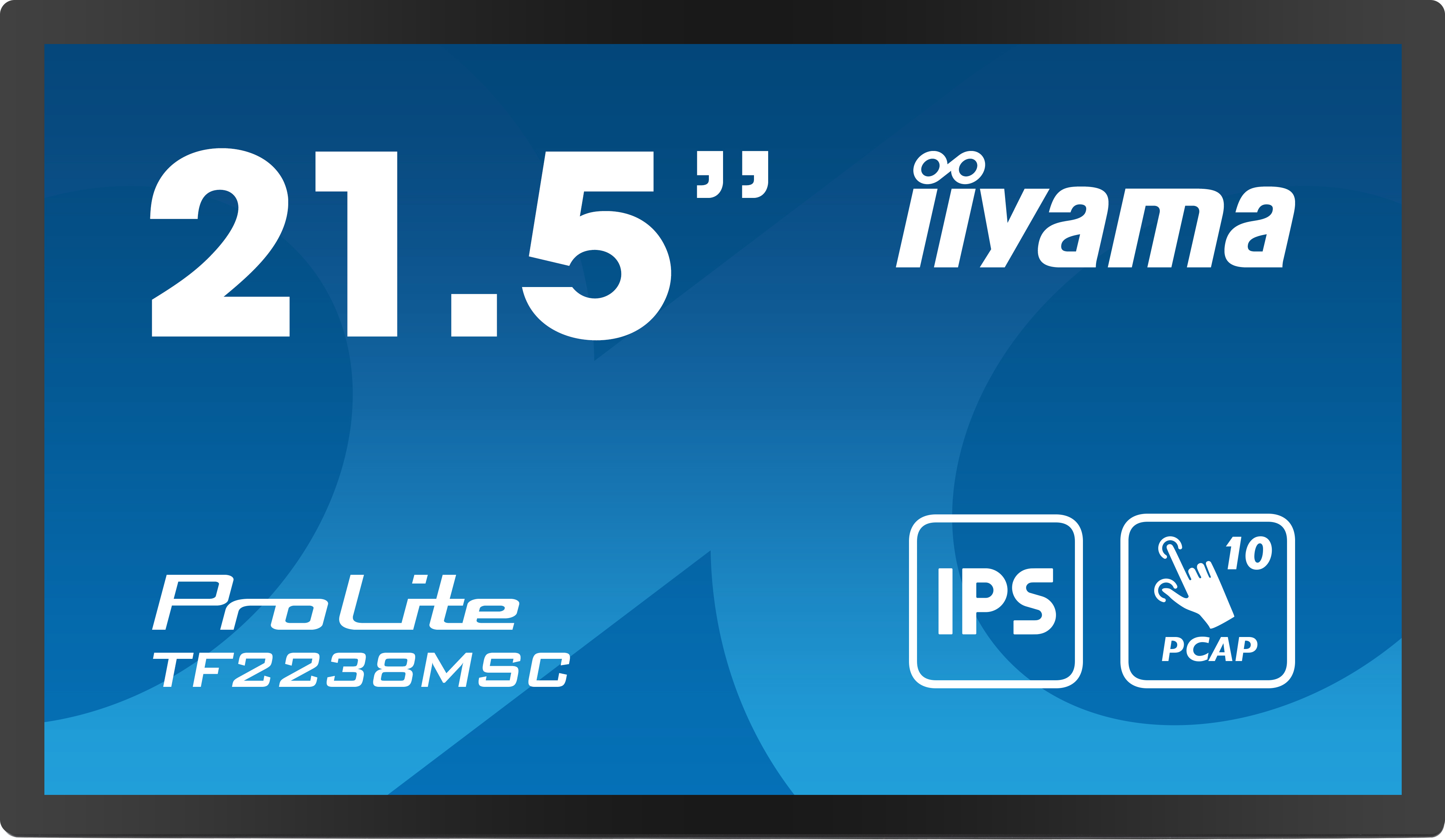

iiyama TF2238MSC-B1. Product design: Digital A-board. Display diagonal: 55.9 cm (22"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 600 cd/m², HD type: Full HD, Touchscreen. Product colour: Black
Product Description
PROLITE TF2438MSC-B1
23.8” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing
The Full HD (1920x1080) Open Frame monitor ProLite TF2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.
OPTICAL BONDED PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.
OPEN FRAME LFD
Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.
IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
