Stock Status: 1x unit in stock
Professional Grade Small Format Signage, optimised with on-board iiSignage² Content Management System

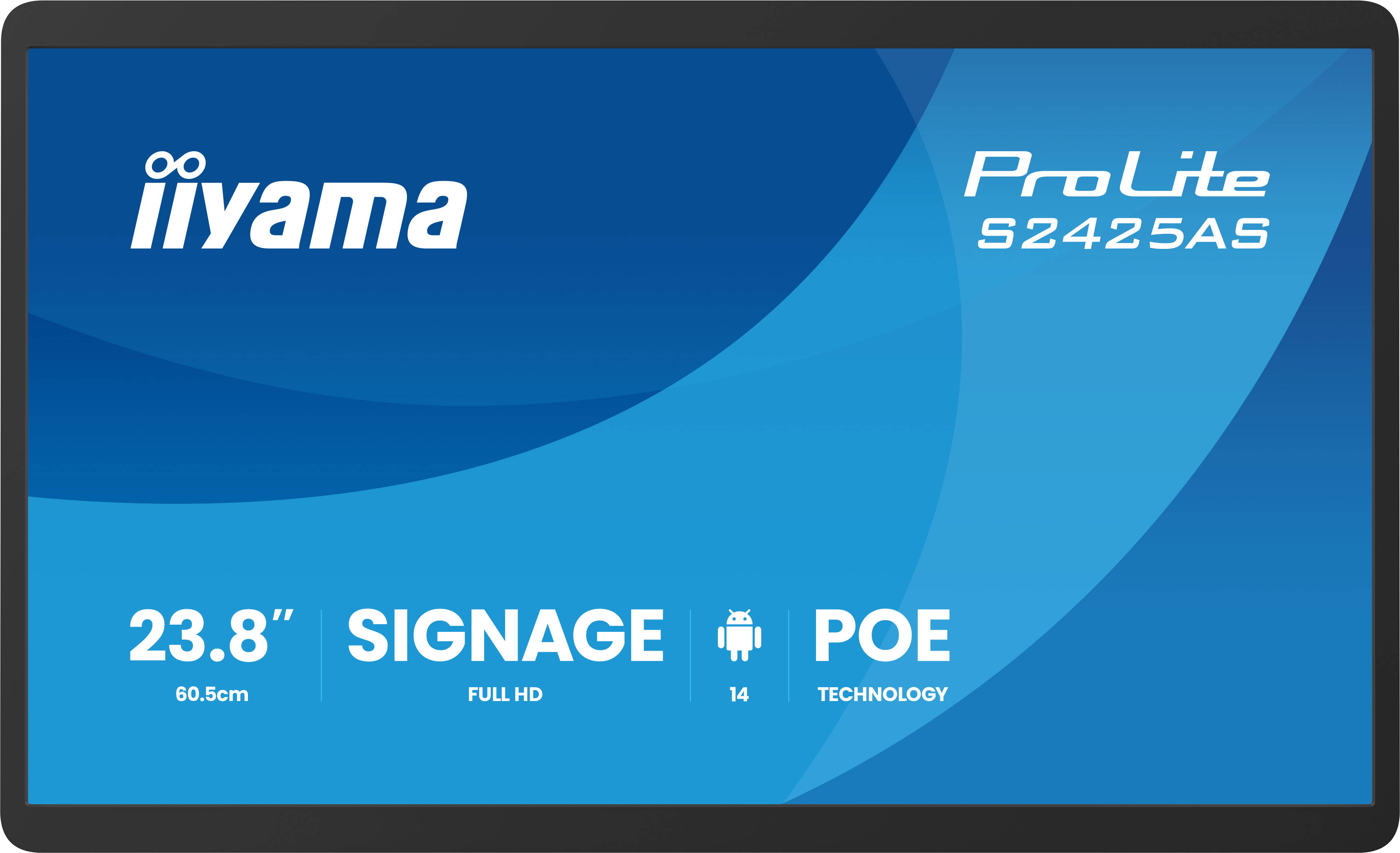

The ProLite S2425AS-B1P is a 23.8” Android display built for stable, secure content presentation in retail and commercial environments. Designed purely for displaying content, it is perfectly suited for supermarkets, shops and information points where interaction is not required. Its high-brightness Full HD IPS panel delivers up to 500cd/m² for excellent visibility, even in bright locations, while Power over Ethernet (PoE) simplifies installation and reduces cabling.
iiyama guarantees compatibility with the platform for a minimum of 5 years, ensuring long-term reliability and peace of mind for professional installations.
Connectivity
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Specs
| Weight & dimensions |
| Display width |
549.5 mm |
| Display depth |
28 mm |
| Display height |
336 mm |
| Display weight |
4.24 kg |
| Display |
| Display diagonal |
60.5 cm (23.8") |
| Display technology |
LCD |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
500 cd/m² |
| HD type |
Full HD |
| Touchscreen |
No |
| Panel type |
IPS |
| Native aspect ratio |
16:9 |
| Response time |
14 ms |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
16.7 million colours |
| Pixel pitch |
0.275 x 0.275 mm |
| Active display area (W x H) |
527 x 296.5 mm |
| Display diagonal (metric) |
60.5 cm |
| Horizontal scan range |
31 - 83 kHz |
| Haze rate |
25% |
| Surface hardness |
3H |
| Packaging data |
| Package width |
640 mm |
| Package depth |
121 mm |
| Package height |
410 mm |
| Package weight |
6.15 kg |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
10 W |
| Power |
| Power consumption (typical) |
17.5 W |
| Power consumption (standby) |
14 W |
| Power consumption (off) |
3.5 W |
| Ports & interfaces |
| HDMI ports quantity |
1 |
| DVI port |
No |
| DisplayPorts quantity |
0 |
| USB port |
Yes |
| USB ports quantity |
4 |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type |
USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Microphone in |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Other features |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| USB 2.0 ports quantity |
2 |
| Design |
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Screen shape |
Flat |
| Panel mounting interface |
100 x 100 mm |
| Anti-glare screen |
Yes |
| Performance |
| Purpose |
Universal |
| Operating hours (hours/days) |
24/7 |
| Number of microphones |
2 |
| Mean time between failures (MTBF) |
50000 h |
| Technical details |
| Compliance certificates |
CE, EAC, WEEE, REACH, UKCA |
| Computer system |
| Computer system |
Yes |
| Built-in processor |
Yes |
| Computer system type |
System on Chip (SoC) |
| Processor manufacturer |
Rockchip |
| Processor family |
ARM Rockchip |
| Processor model |
Rockchip RK3576 |
| Processor cores |
8 |
| Internal memory |
4 GB |
| On-board graphics card model |
Mali-G52 MC3 |
| Internal storage capacity |
32 GB |
| Operating system installed |
Android 14 |
| Packaging content |
| Power adapter included |
Yes |
| Cables included |
AC |
| Network |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Features
iiyama ProLite S2425AS-B1P. Product design: Digital signage flat panel. Display diagonal: 60.5 cm (23.8"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 14. Product colour: Black
Product Description
Professional Grade Small Format Signage, optimised with on-board iiSignage² Content Management System
The ProLite S2425AS-B1P is a 23.8” Android display built for stable, secure content presentation in retail and commercial environments. Designed purely for displaying content, it is perfectly suited for supermarkets, shops and information points where interaction is not required. Its high-brightness Full HD IPS panel delivers up to 500cd/m² for excellent visibility, even in bright locations, while Power over Ethernet (PoE) simplifies installation and reduces cabling.
iiyama guarantees compatibility with the platform for a minimum of 5 years, ensuring long-term reliability and peace of mind for professional installations.
Connectivity
The RJ45 (LAN) connector supporting Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, which simplifies installation in areas where many cables would interfere with the environment.
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
