Stock Status: 1x unit in stock

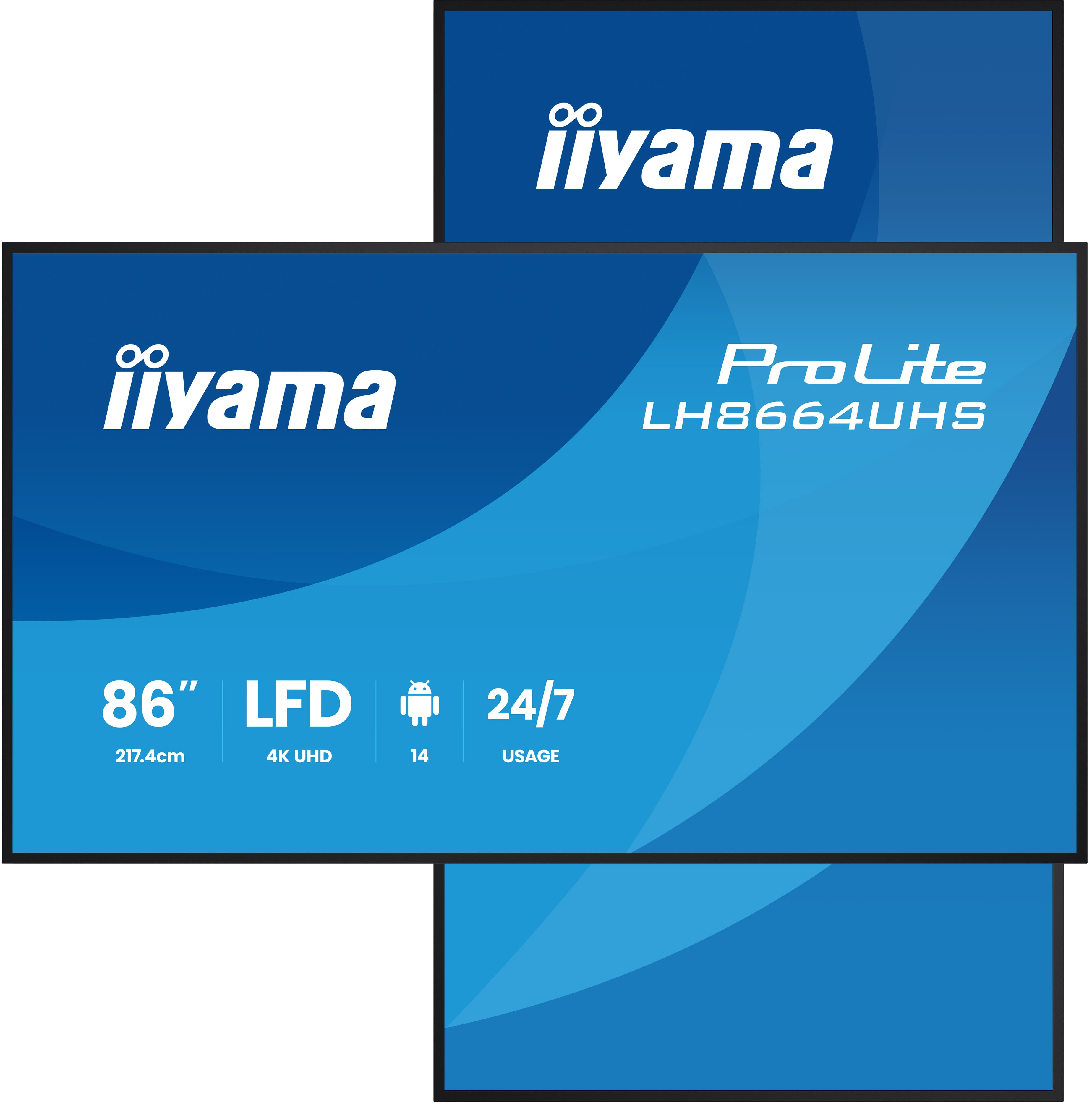

Elevate your visual communication with the LH8664UHS-B3AG and unlock the new possibilities for your business. This 450cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With Android 14 OS, iiSignage² (CMS), iiControl (DMS) and iiShare , plus EShare (Wireless Presentation) features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. WiFi enabled, the display is ready for remote content delivery using your network or you can choose to utilise LAN control. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH8664UHS-B3AG will undoubtedly captivate your audience and leave a lasting impression.
Specs
| Weight & dimensions |
| Display width |
1937.8 mm |
| Display depth |
79.6 mm |
| Display height |
1108.8 mm |
| Display weight |
47.9 kg |
| Display |
| Display diagonal |
2.17 m (85.6") |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
450 cd/m² |
| HD type |
4K Ultra HD |
| Panel type |
IPS |
| Native aspect ratio |
16:9 |
| Response time |
8 ms |
| Contrast ratio (typical) |
1200:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
1.07 billion colours |
| Pixel pitch |
0.493 x 0.493 mm |
| Active display area (W x H) |
1895 x 1066 mm |
| Display diagonal (metric) |
217.4 cm |
| Horizontal scan range |
28 - 160 kHz |
| Native refresh rate |
60 Hz |
| Haze rate |
25% |
| Packaging data |
| Package width |
2095 mm |
| Package depth |
2095 mm |
| Package height |
1215 mm |
| Package weight |
62.2 kg |
| Audio |
| Built-in speaker(s) |
Yes |
| Number of built-in speakers |
2 |
| RMS rated power |
32 W |
| Power |
| Power consumption (typical) |
277 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (off) |
0.3 W |
| Energy efficiency class (SDR) |
G |
| Energy efficiency class (HDR) |
Not available |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Energy efficiency scale |
A to G |
| Ports & interfaces |
| HDMI ports quantity |
2 |
| USB port |
Yes |
| HDMI version |
2.0 |
| HDMI input ports quantity |
2 |
| DisplayPort version |
1.2 |
| USB ports quantity |
2 |
| USB version |
2.0 |
| USB connector type |
USB Type-A, USB Type-C |
| USB Power Delivery (USB PD) |
Yes |
| USB Power Delivery up to |
15 W |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| RS-232C |
Yes |
| Infrared data port |
Yes |
| Remote (IR) input |
1 |
| Remote (IR) output |
1 |
| Audio Return Channel (ARC) |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Other features |
| Quick start guide |
Yes |
| Power supply type |
Internal |
| Design |
| Product design |
Digital signage flat panel |
| Product colour |
Black |
| Placement supported |
Indoor |
| VESA mounting |
Yes |
| Orientation |
Horizontal/Vertical |
| Screen shape |
Flat |
| Panel mounting interface |
800 x 600 mm |
| Bezel width (bottom) |
2.2 cm |
| Bezel width (side) |
2.15 cm |
| Bezel width (top) |
2.2 cm |
| Bezel colour |
Black |
| Anti-glare screen |
Yes |
| Performance |
| Purpose |
Corporate |
| Operating hours (hours/days) |
24/7 |
| HDCP |
Yes |
| HDCP version |
1.4/2.2 |
| Mean time between failures (MTBF) |
50000 h |
| Computer system |
| Built-in processor |
Yes |
| Processor manufacturer |
MediaTek |
| Processor model |
MT9679 |
| Processor architecture |
ARM Cortex-A73 |
| Processor cores |
4 |
| Internal memory |
4 GB |
| On-board graphics card model |
Mali-G52 MC1 |
| Internal storage capacity |
32 GB |
| Operating system installed |
Android |
| Operating system version |
14 |
| Packaging content |
| Remote control included |
Yes |
| Cables included |
AC, HDMI, RS-232 |
| Mounting kit |
Yes |
| Network |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Features
iiyama LH8664UHS-B3AG. Product design: Digital signage flat panel. Display diagonal: 2.17 m (85.6"), Display resolution: 3840 x 2160 pixels, Display brightness: 450 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
Product Description
Elevate your visual communication with the LH8664UHS-B3AG and unlock the new possibilities for your business. This 450cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With Android 14 OS, iiSignage² (CMS), iiControl (DMS) and iiShare , plus EShare (Wireless Presentation) features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. WiFi enabled, the display is ready for remote content delivery using your network or you can choose to utilise LAN control. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH8664UHS-B3AG will undoubtedly captivate your audience and leave a lasting impression.
